Chevrolet
>>
2000
>>
Tracker 2WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Fuse Block
Fuse Block

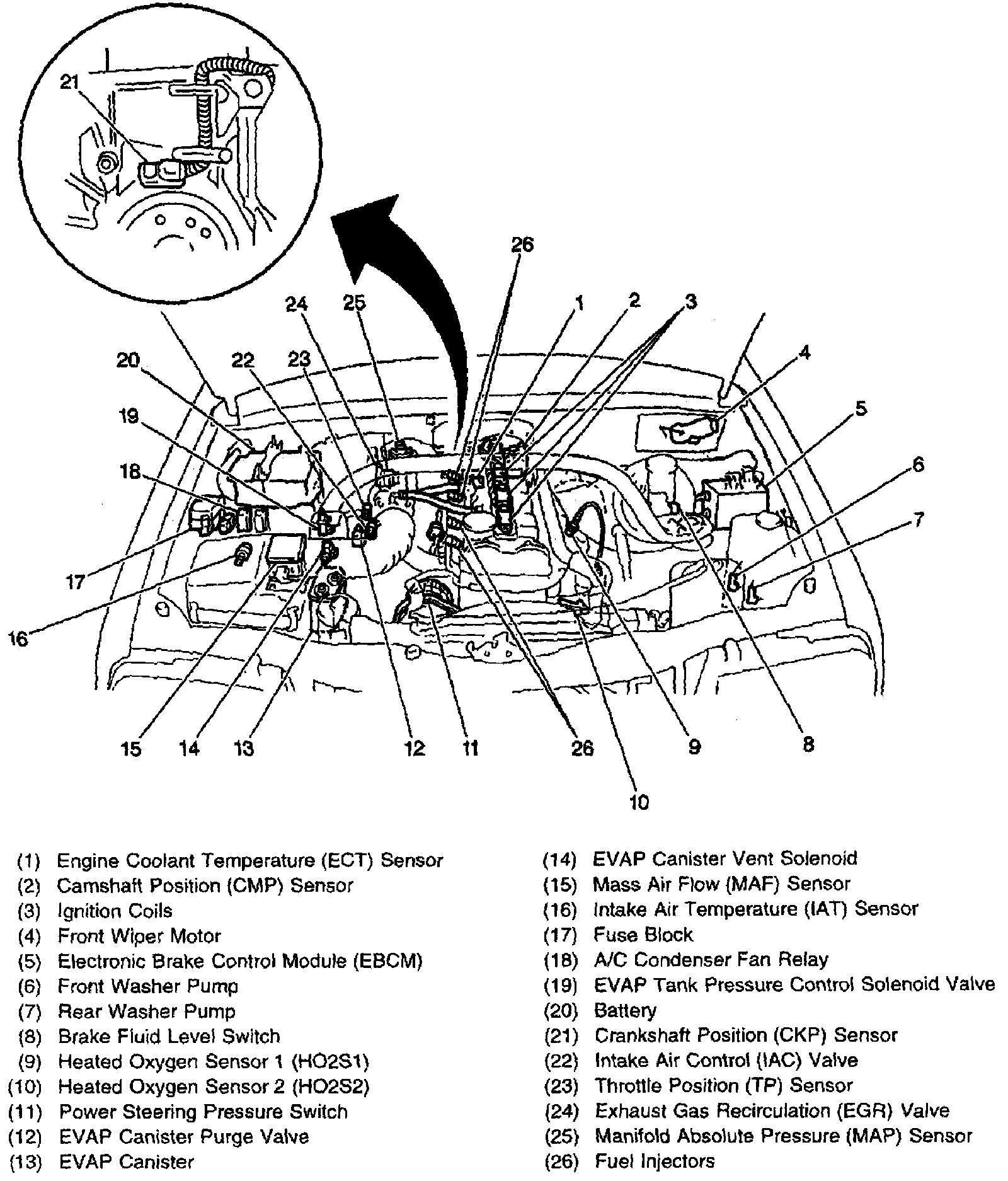

Locations View:

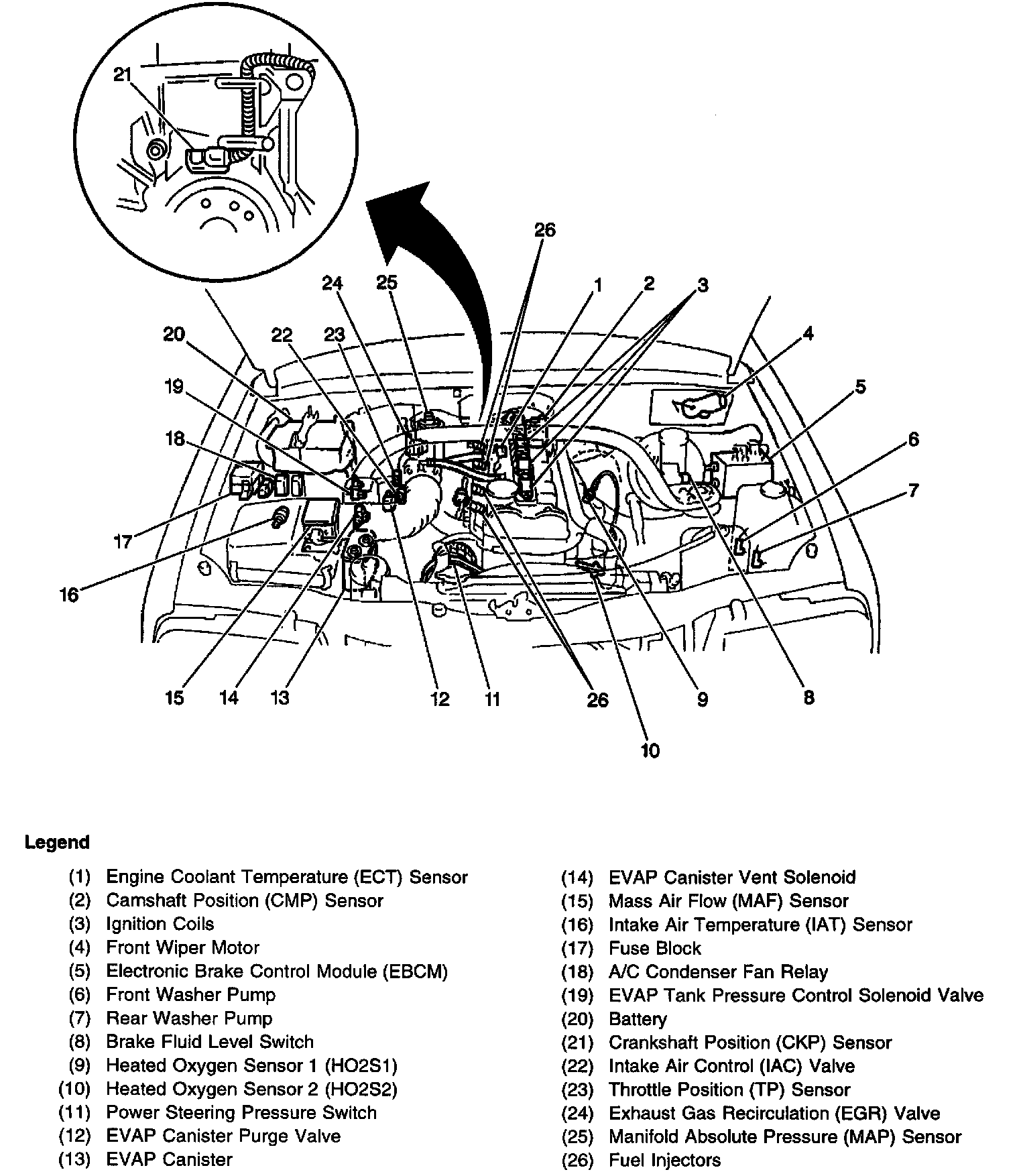

Locations View:

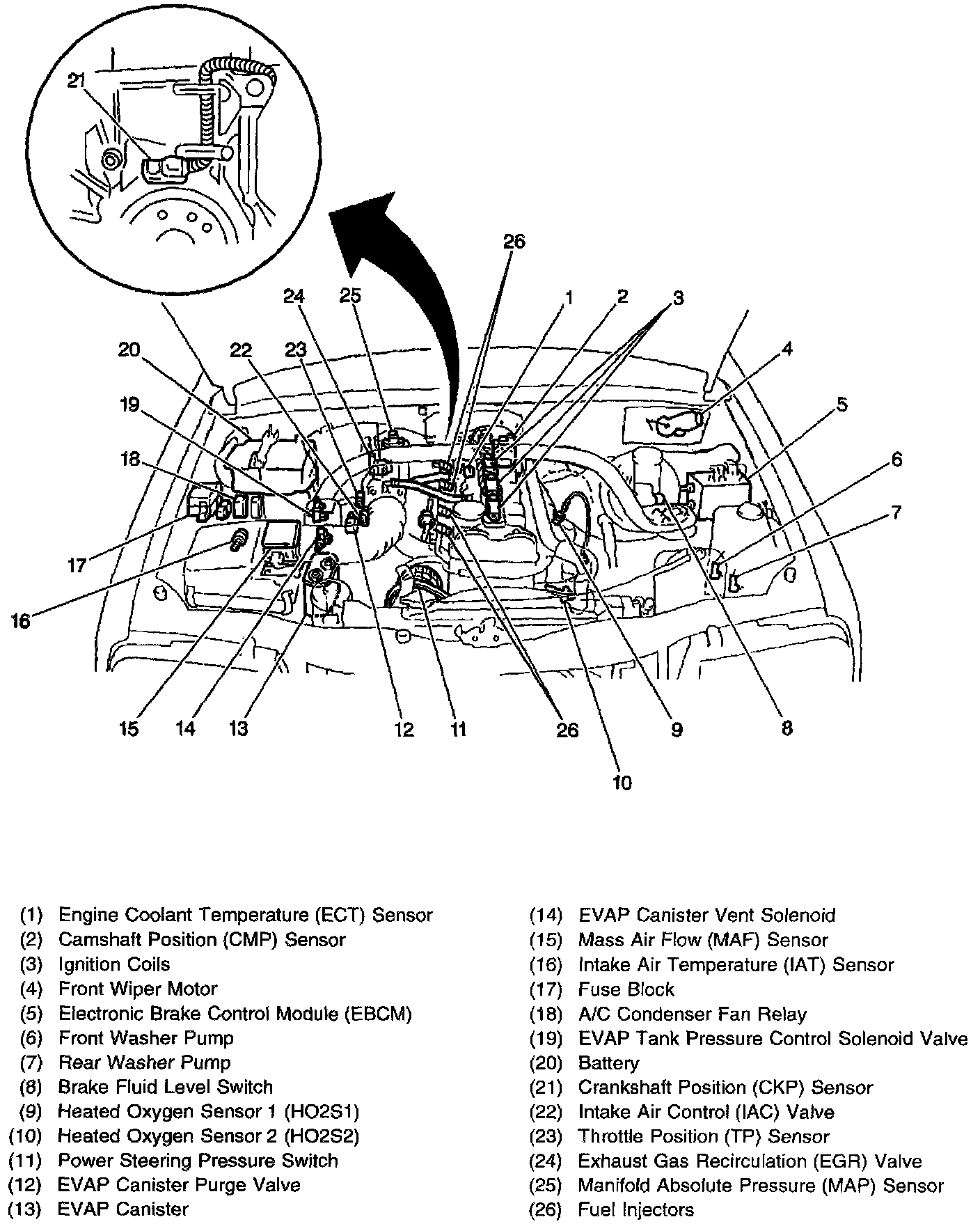

Locations View:

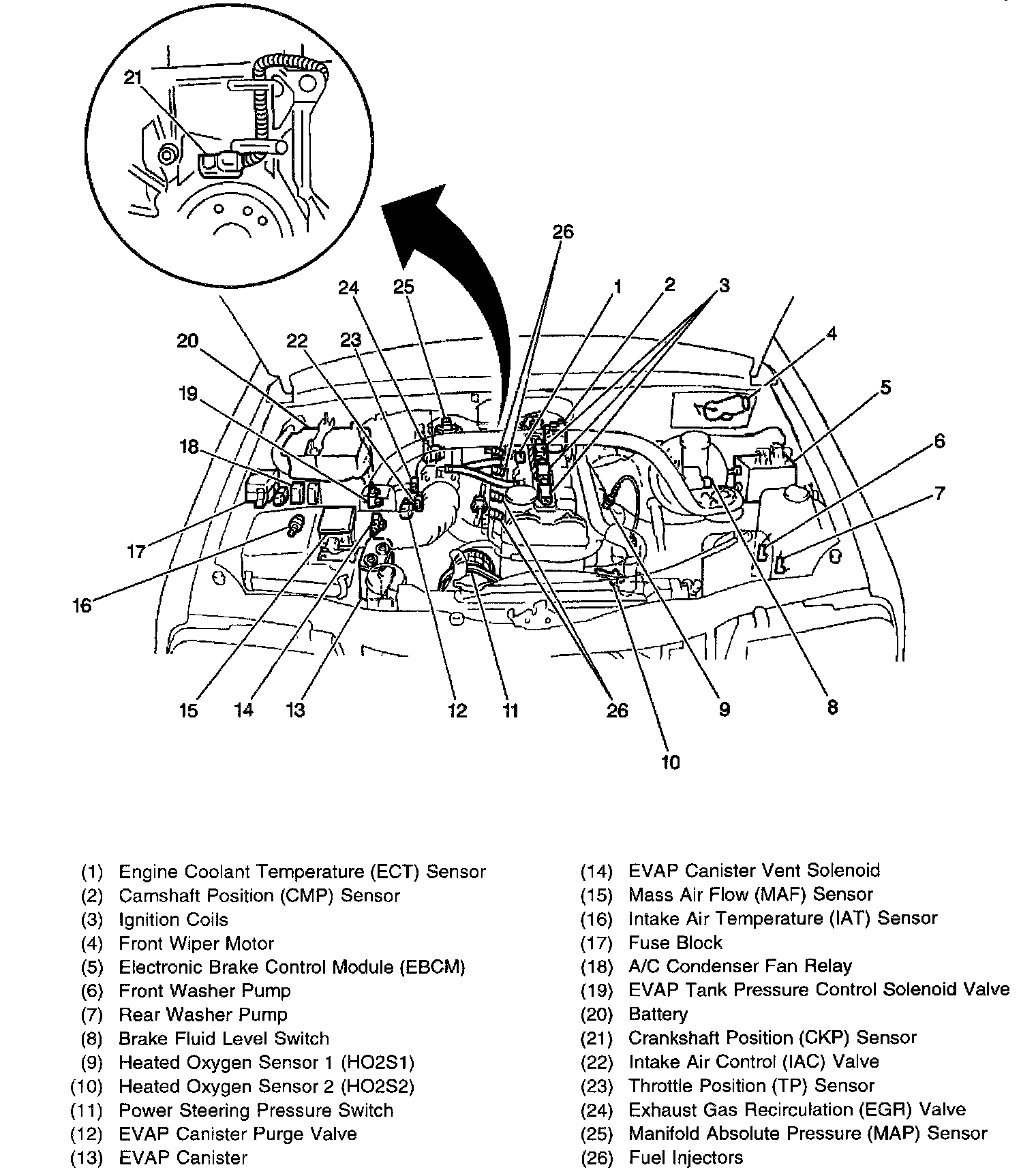

Locations View:
Locations View:

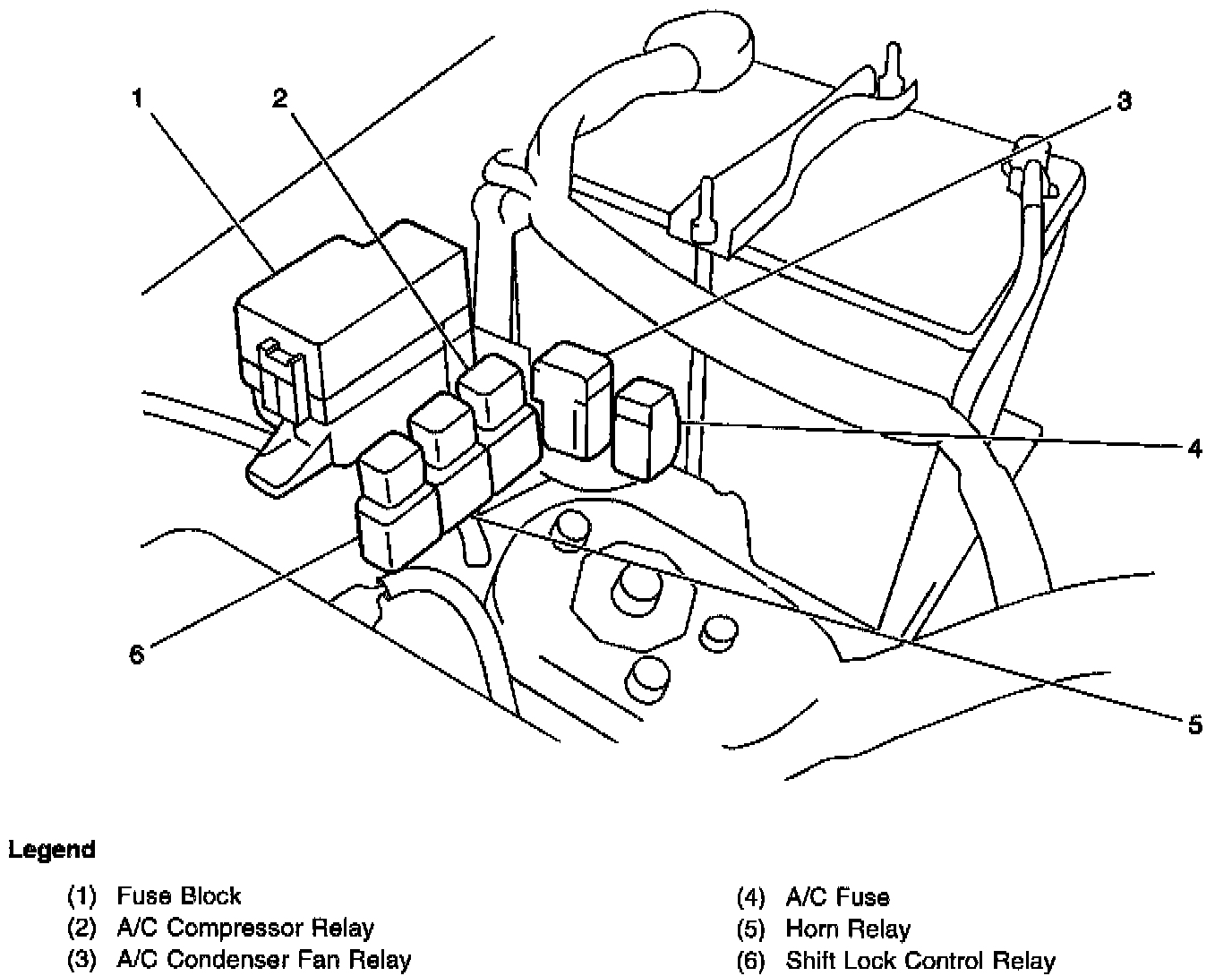

Right side of the engine compartment in front of the battery
