Home >> Chevrolet >> 2000 >> Tracker 2WD L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C4

C4

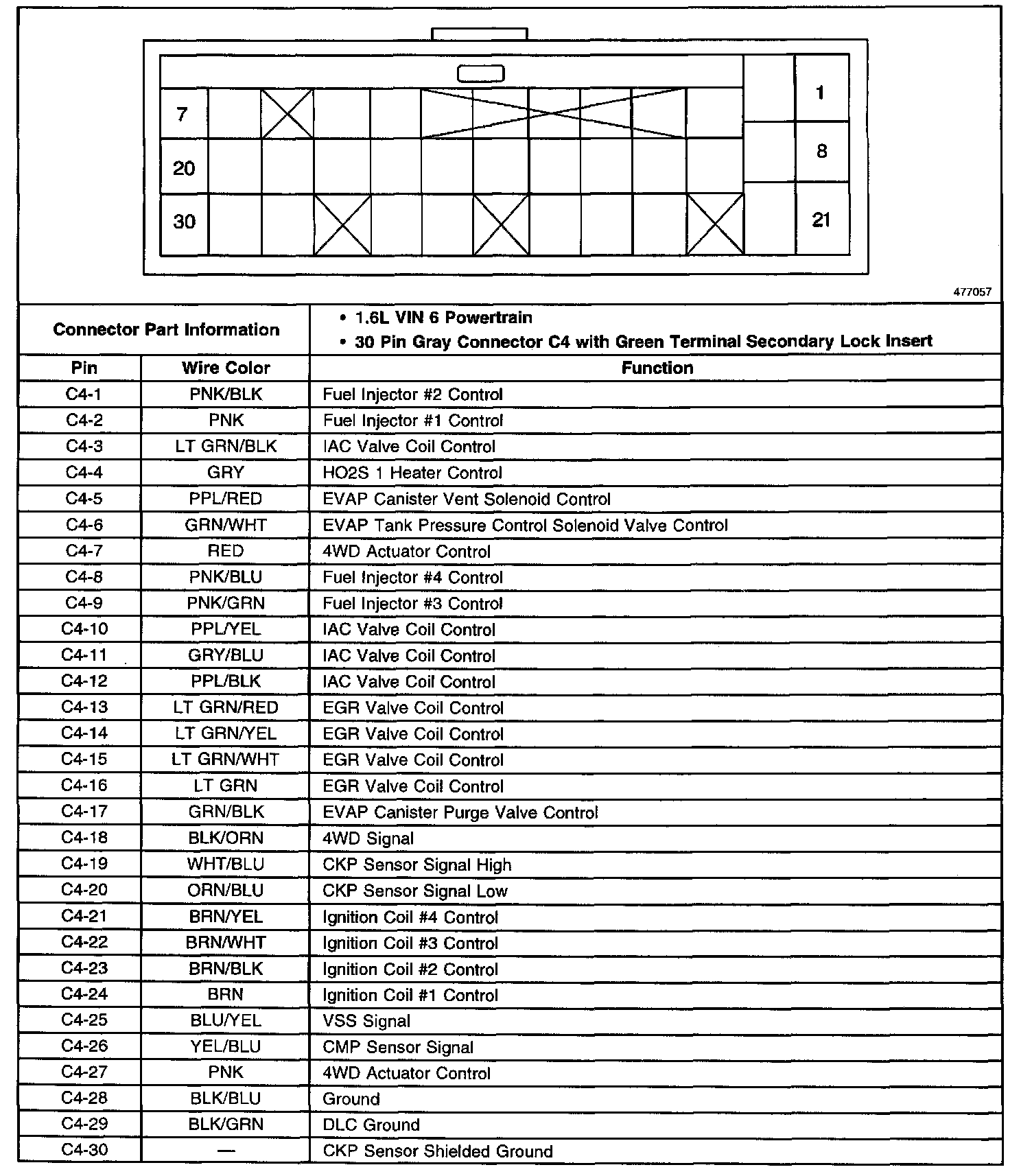

Back View Of The PCM Connector C4:
