Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

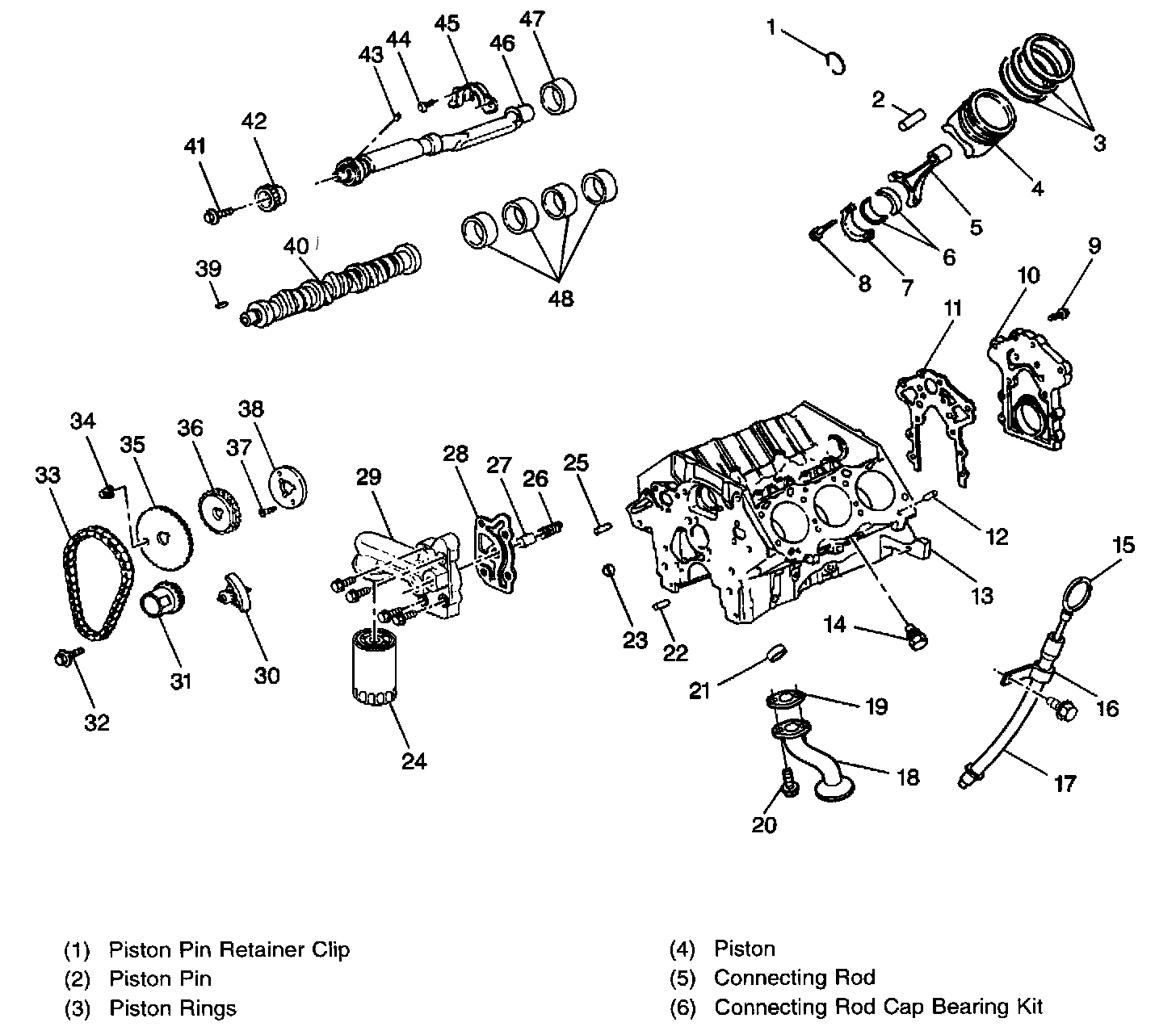

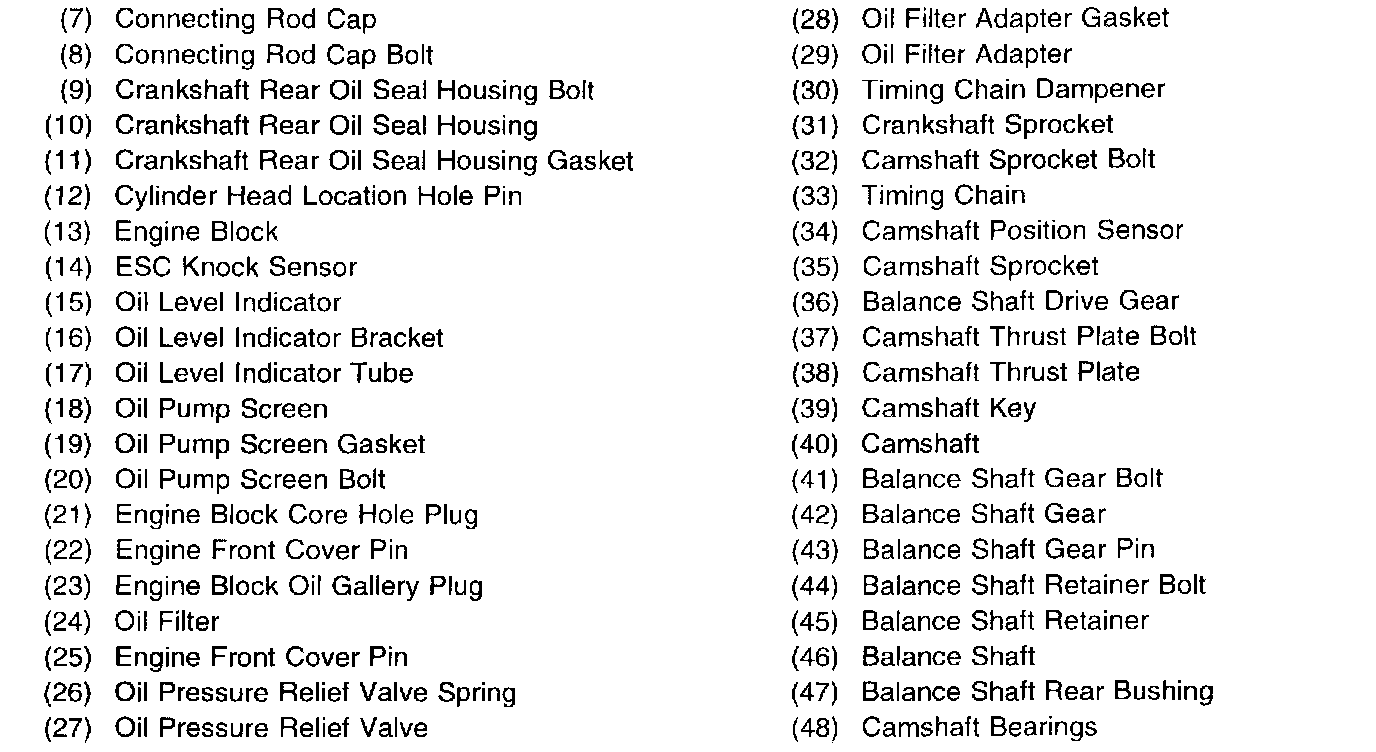

Engine Block and Components

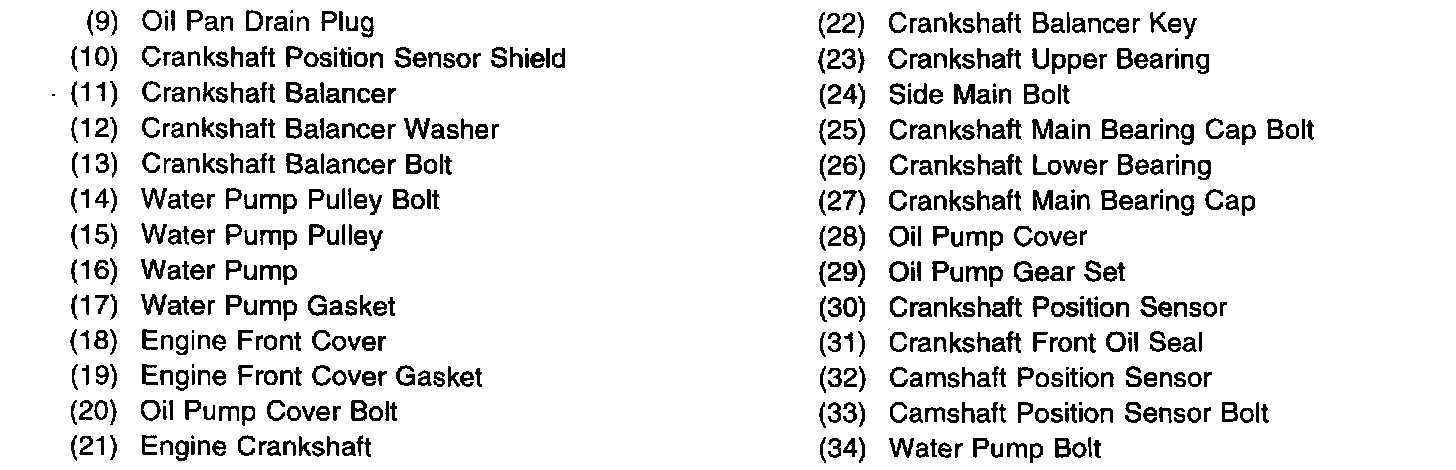

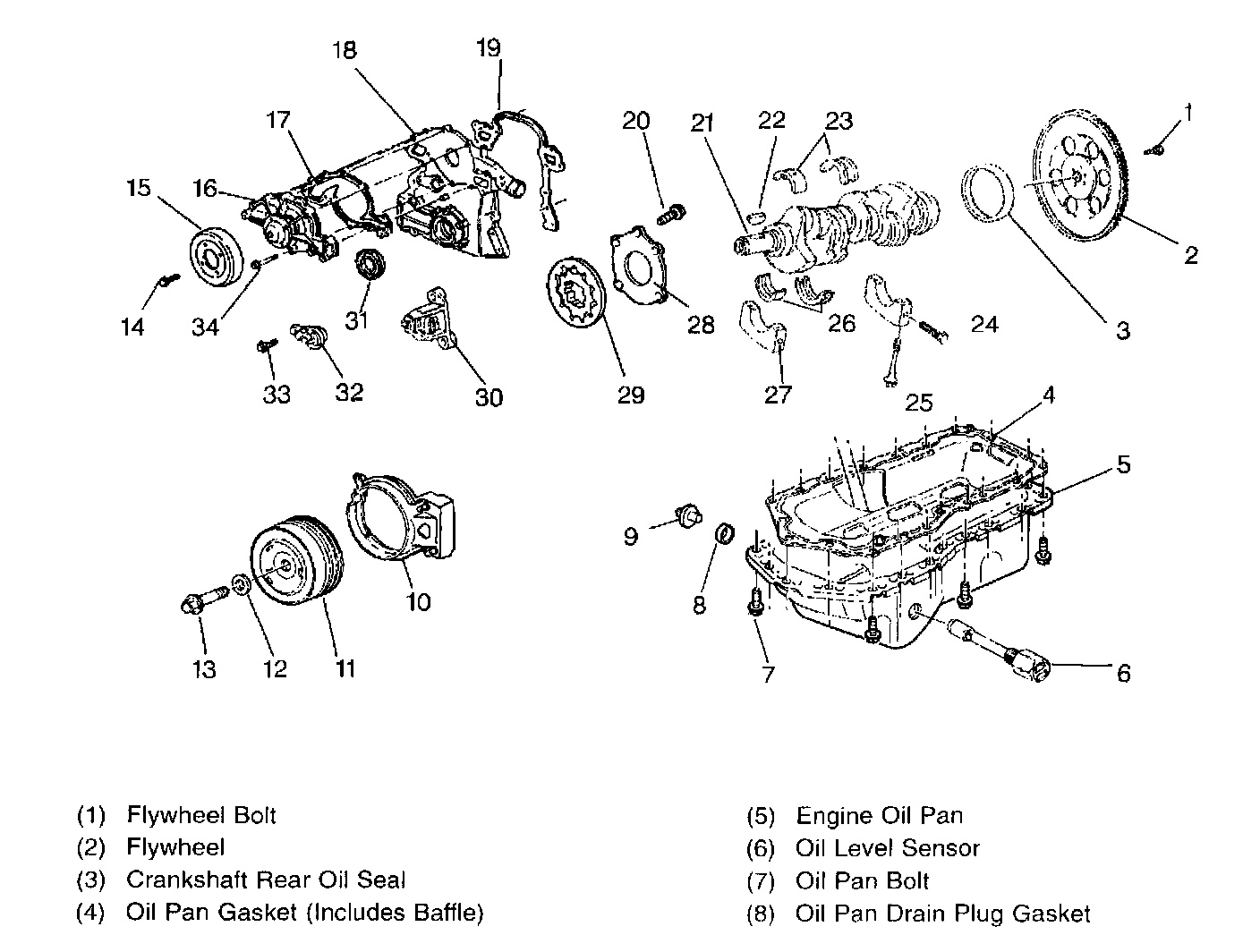

Crankshaft and Components

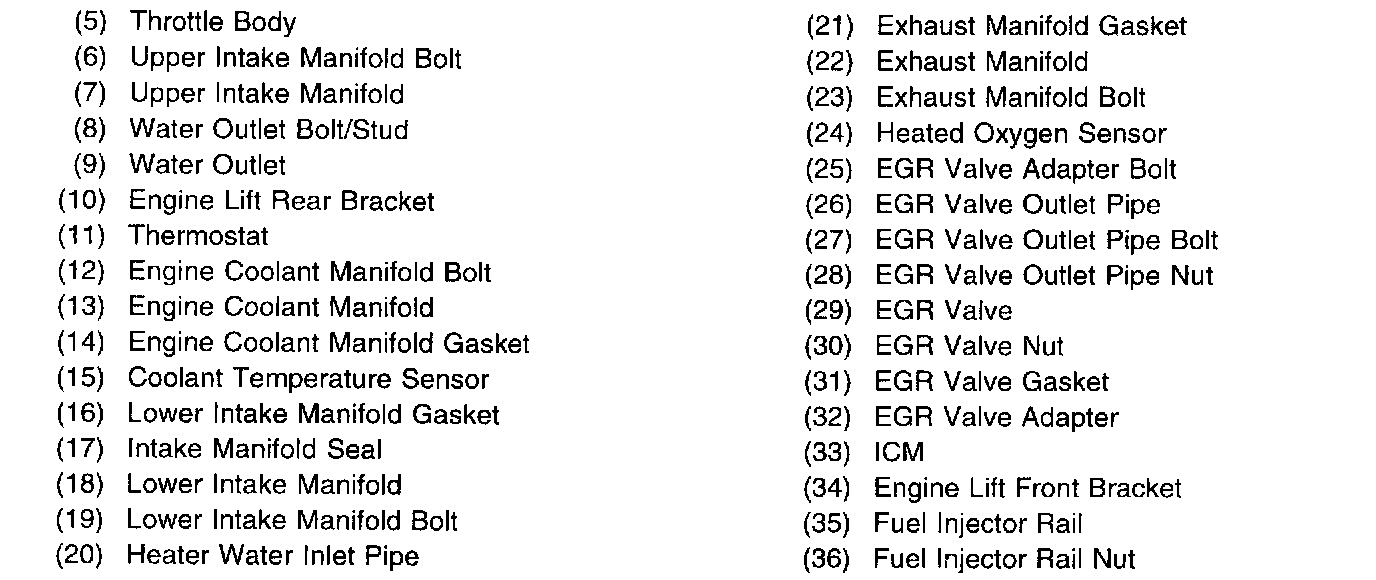

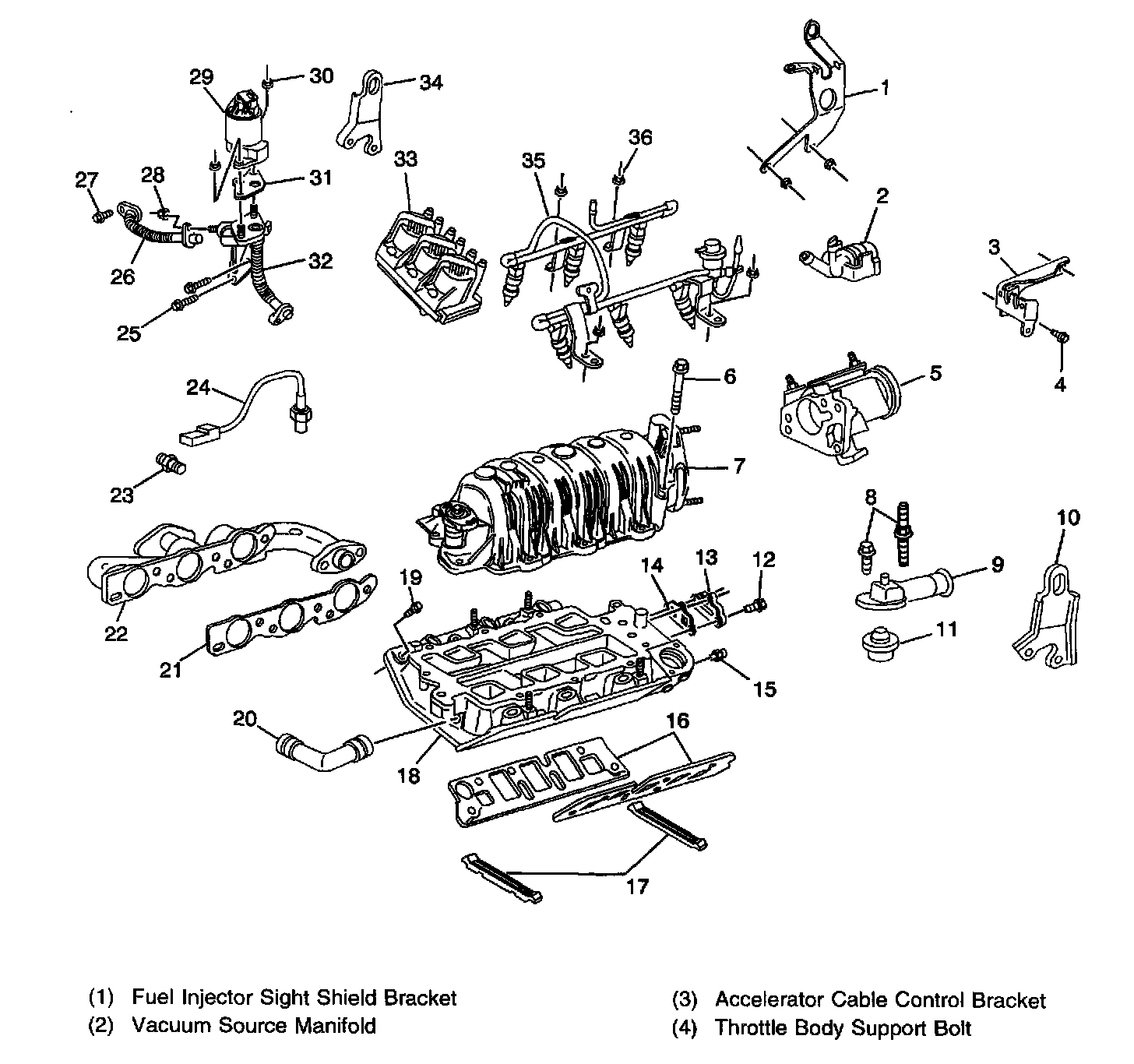

Intake Manifold and Components

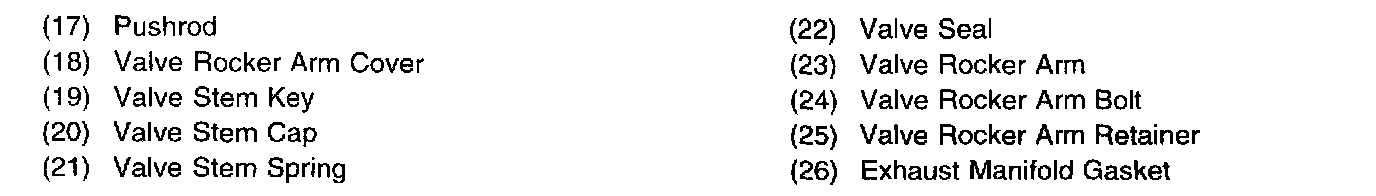

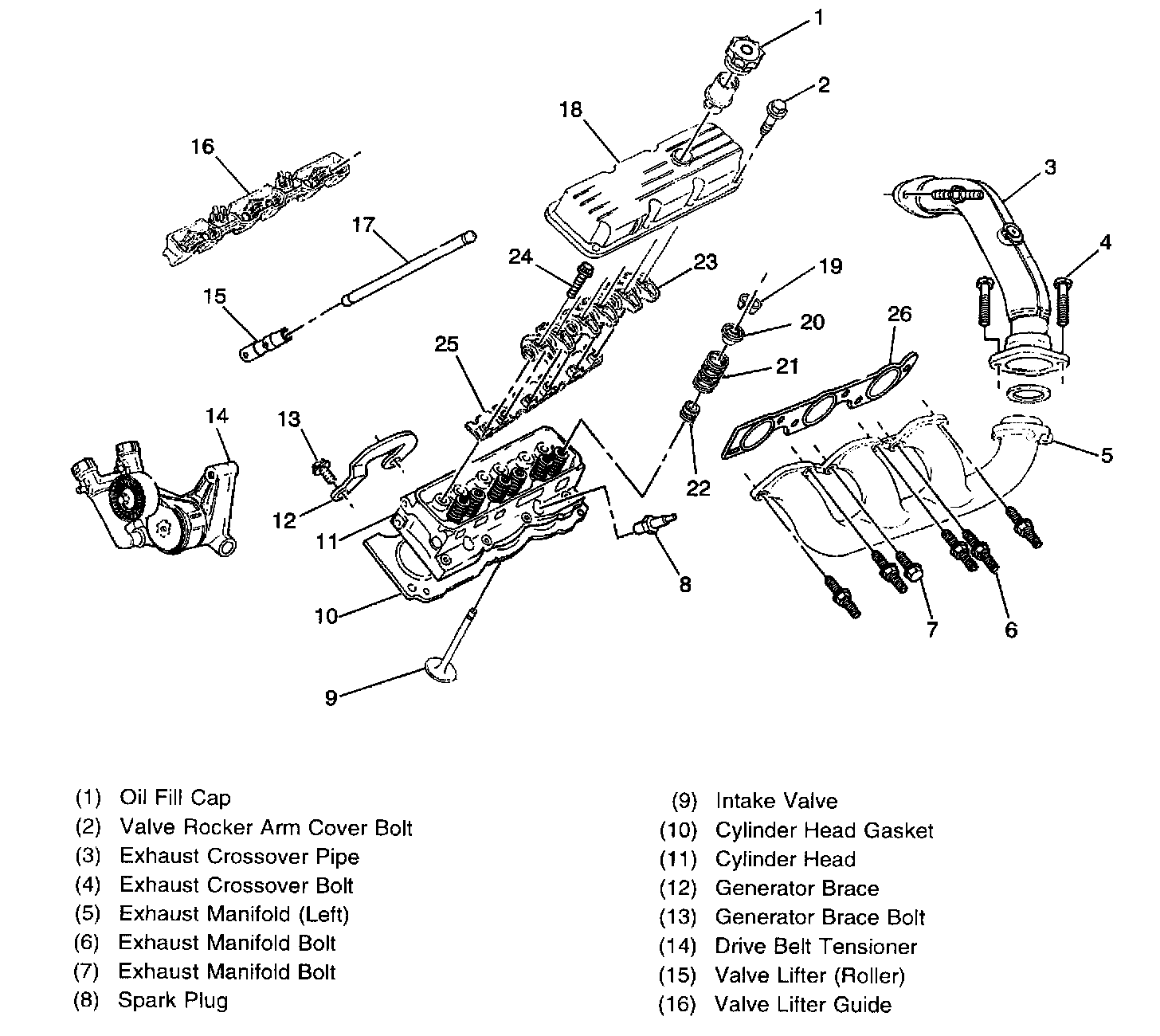

Cylinder Head and Components
