Control Assembly, HVAC
>>
Heater-A/C Control Module, C2
Heater-A/C Control Module, C2

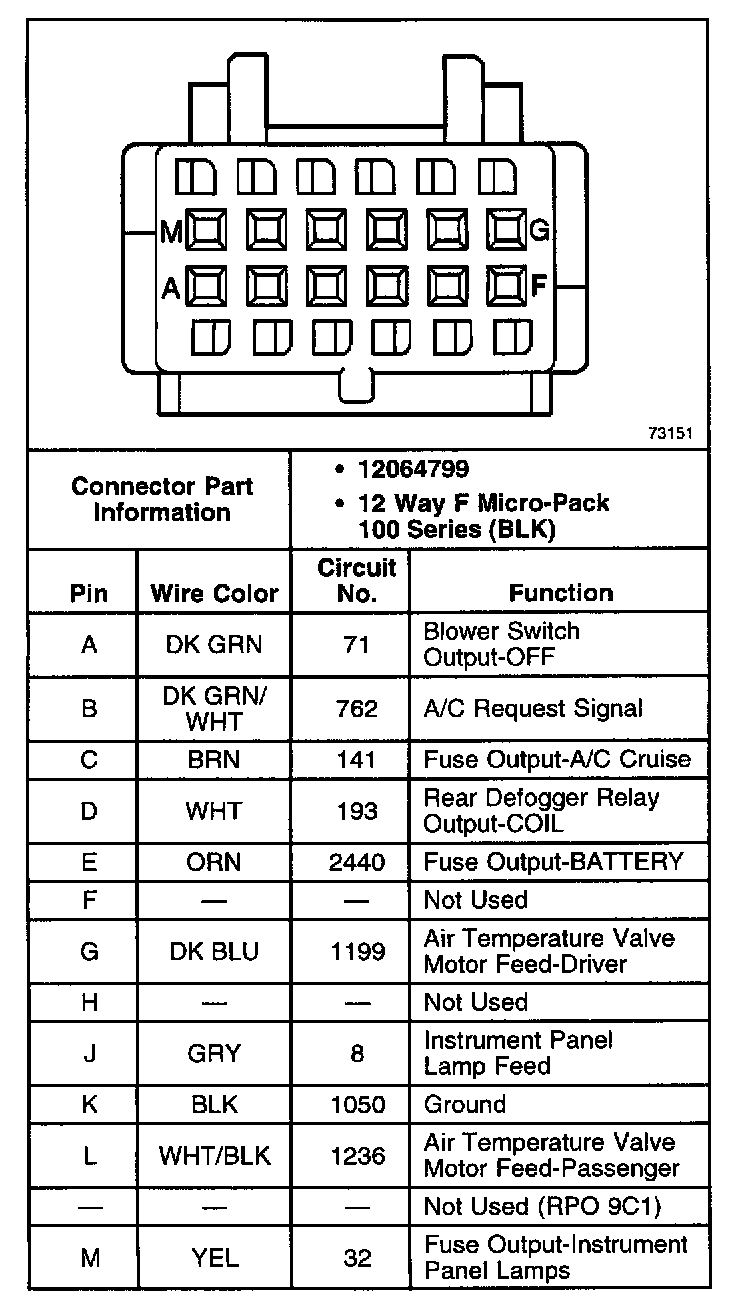

Heater - A/C Control Module, C2:
