Radio Antenna Module

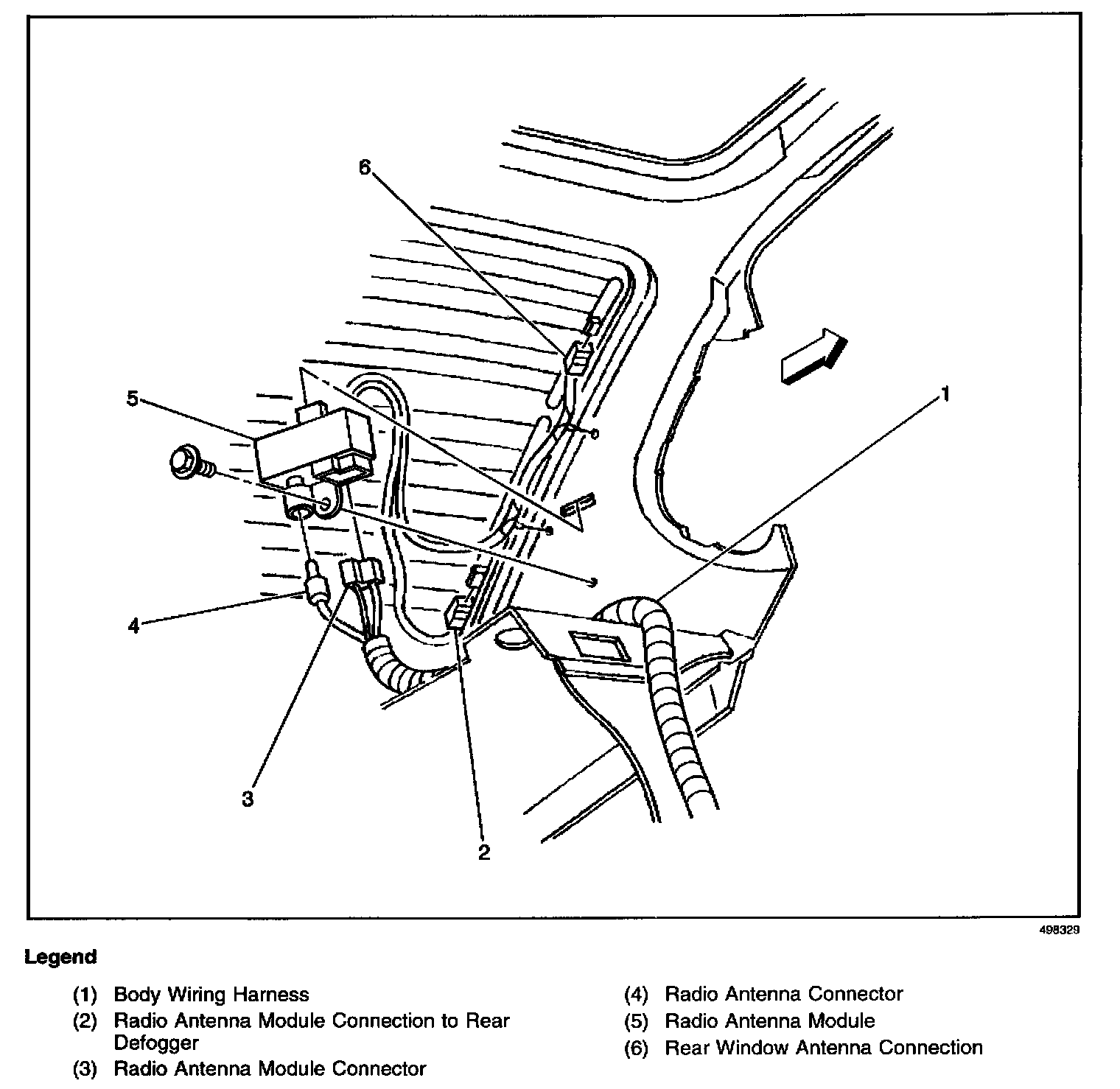

Radio Antenna Module
Locations View:
Under the left rear upper quarter trim panel.
