Chevrolet
>>
2000
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Module
>>
Diagrams
>>
Connector Views
Connector Views

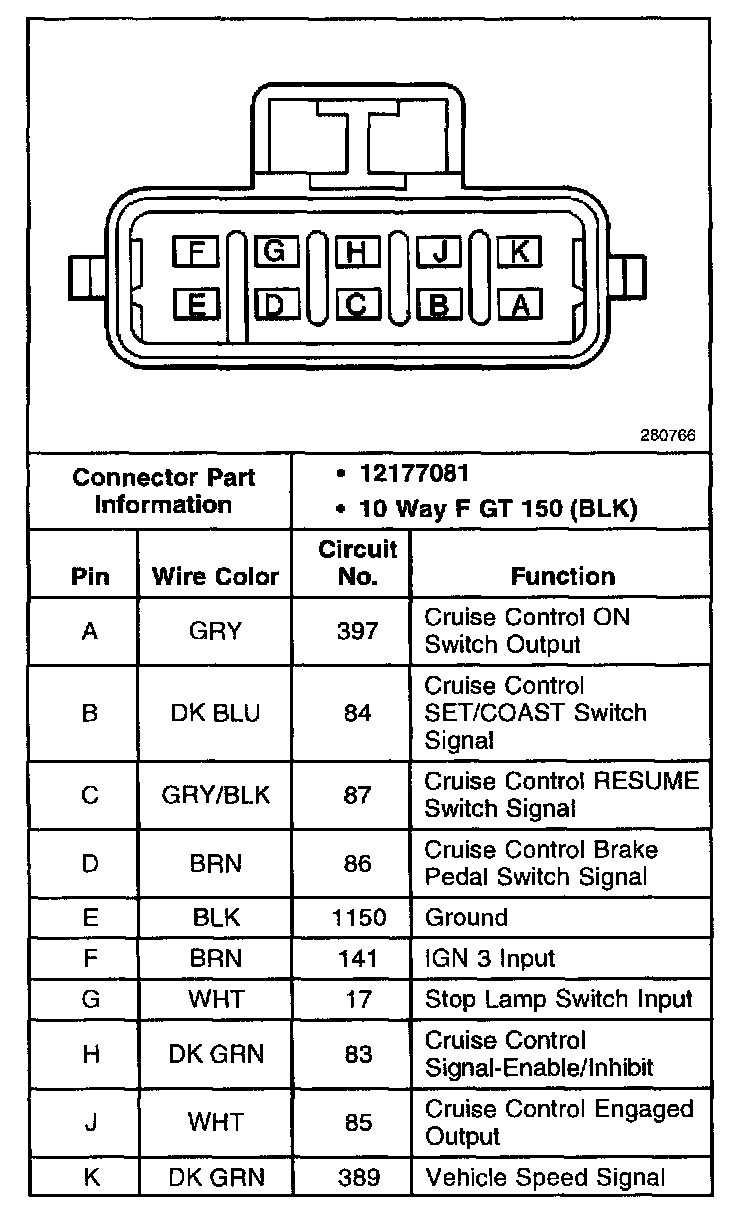

Cruise Control Module:
