C2 (RED)
C2 (RED)

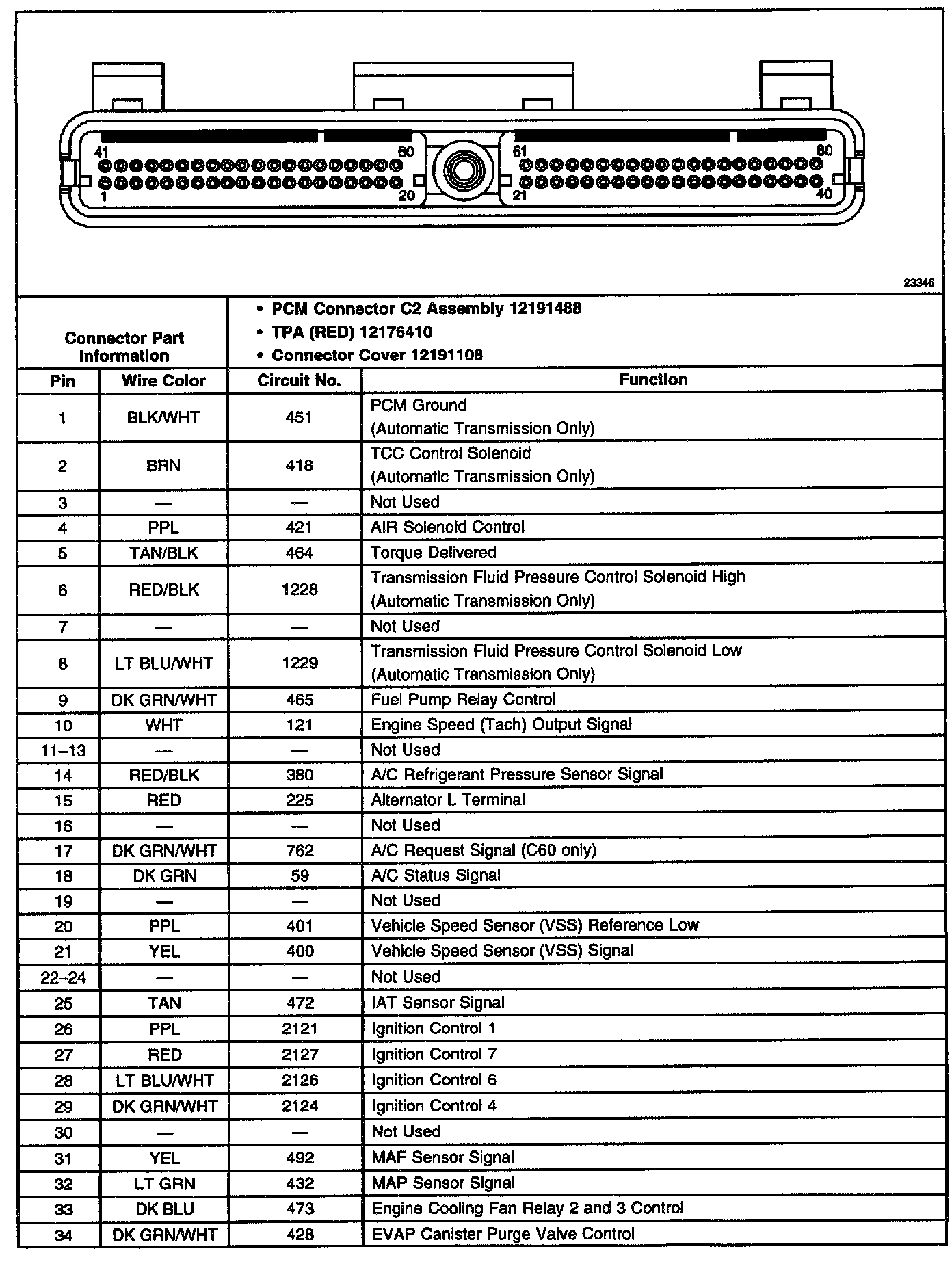

PCM Connector C2 (RED) (Part 1 Of 3):

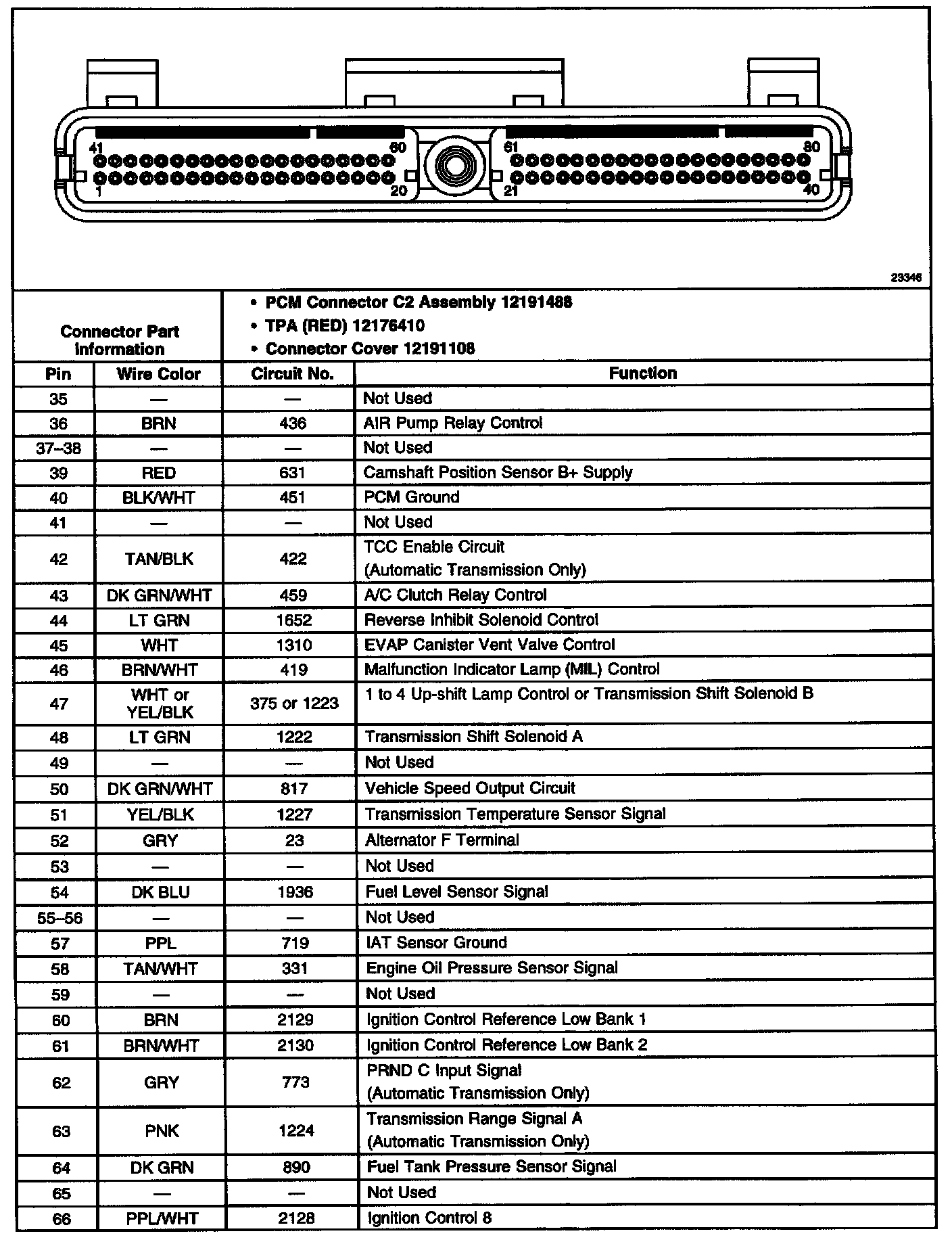

PCM Connector C2 (RED) (Part 2 Of 3):

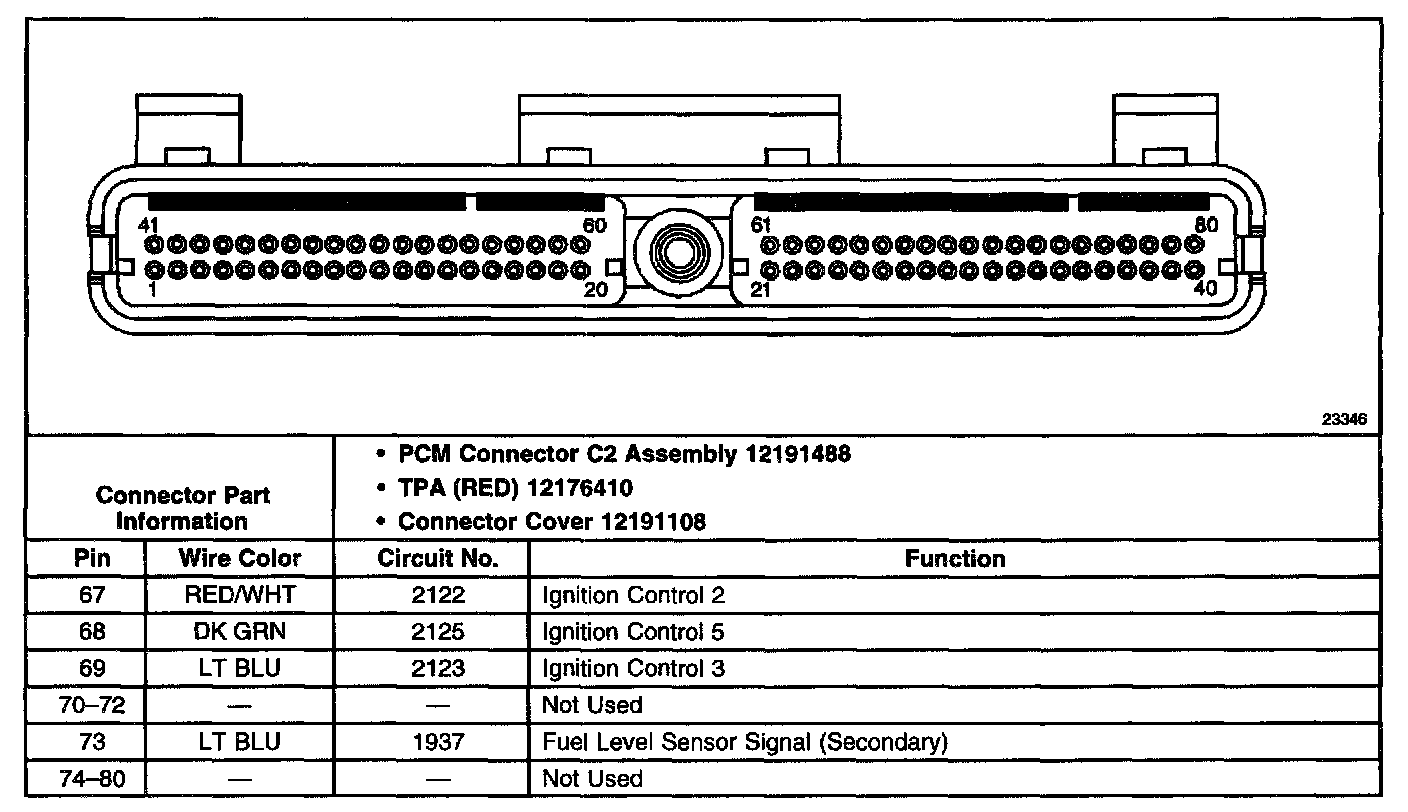

PCM Connector C2 (RED) (Part 3 Of 3):
