Home >> Chevrolet >> 2000 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C3

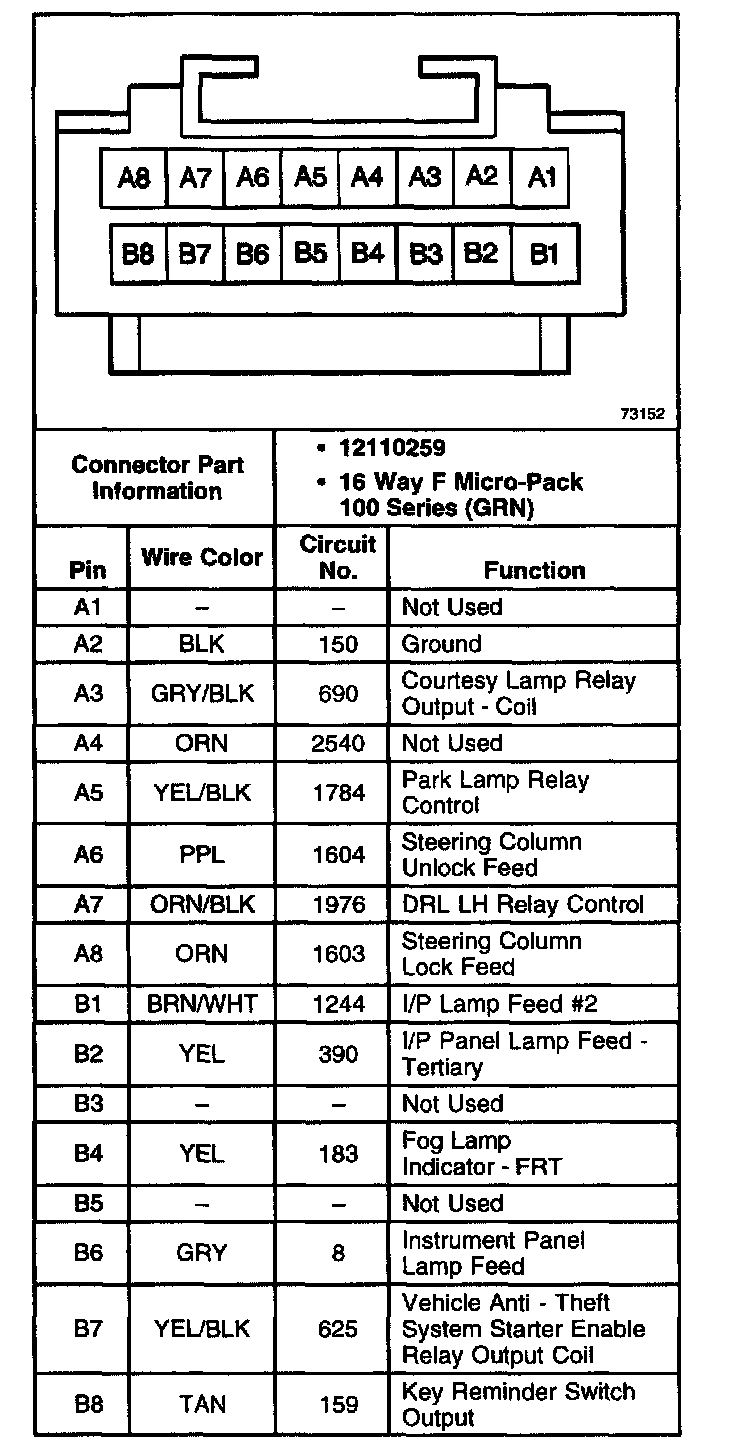

Body Control Module (BCM) C3

Body Control Module - C3:
