Body Control Module
>>
Body Control Module (BCM) C1
Body Control Module (BCM) C1

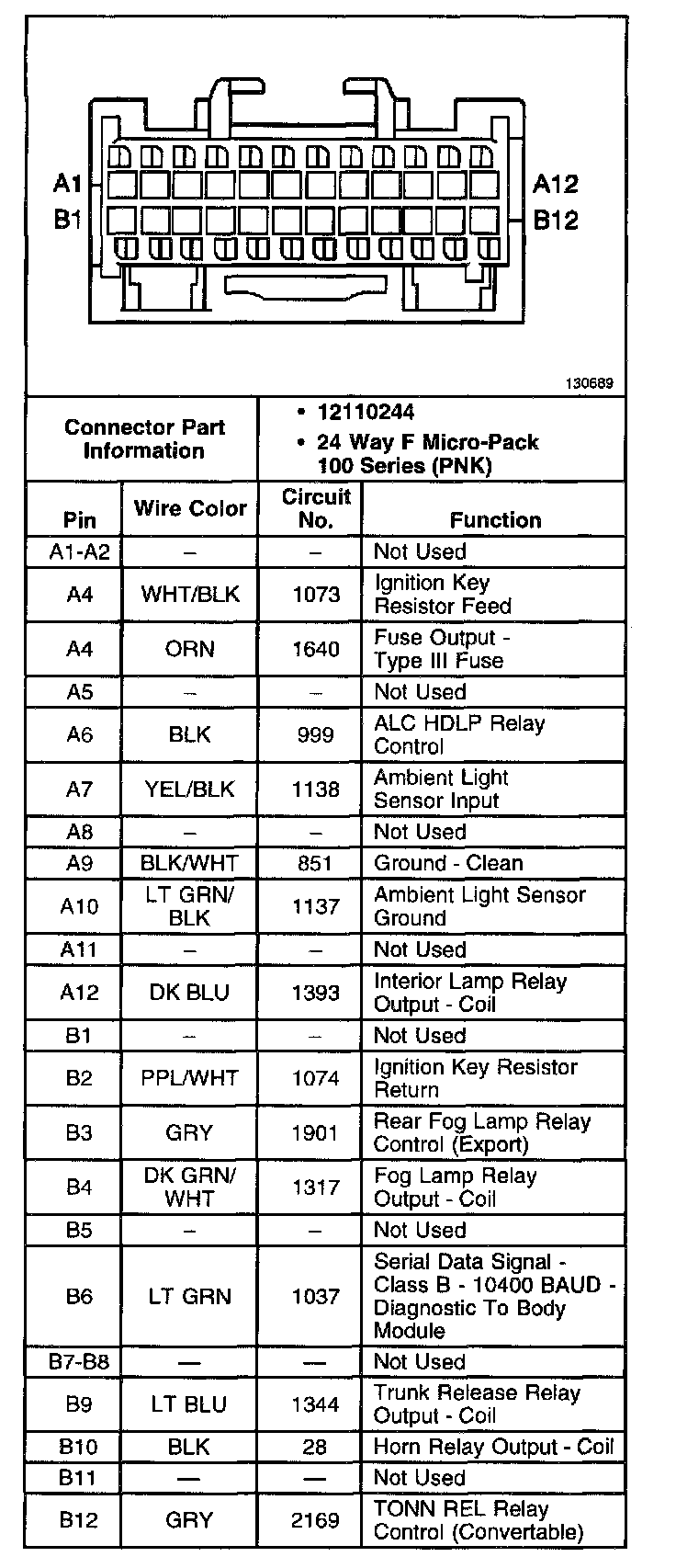

Body Control Module - C1:
