Pinout Description

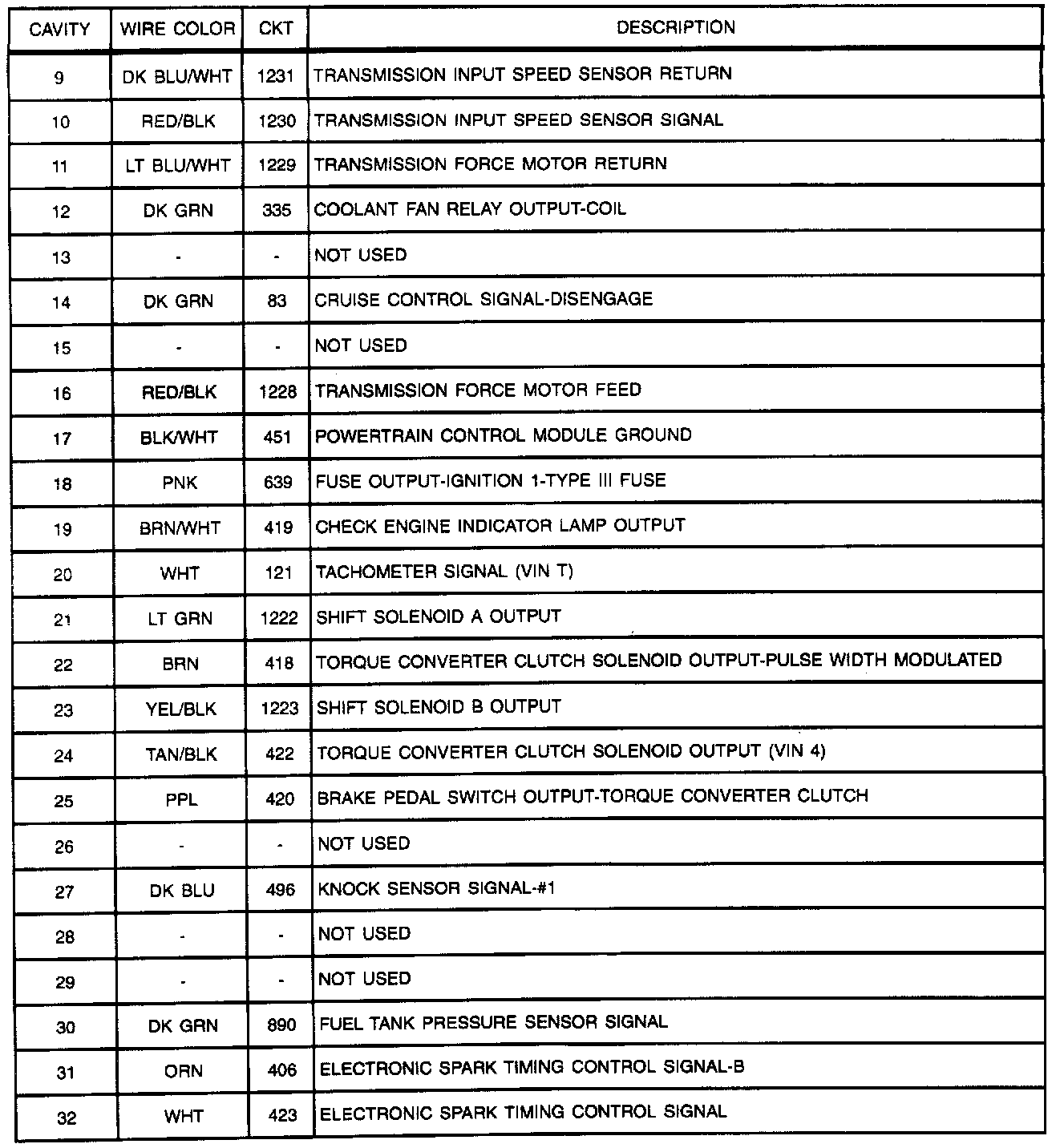

Powertrain Control Module: C1 (Part 1 Of 2):

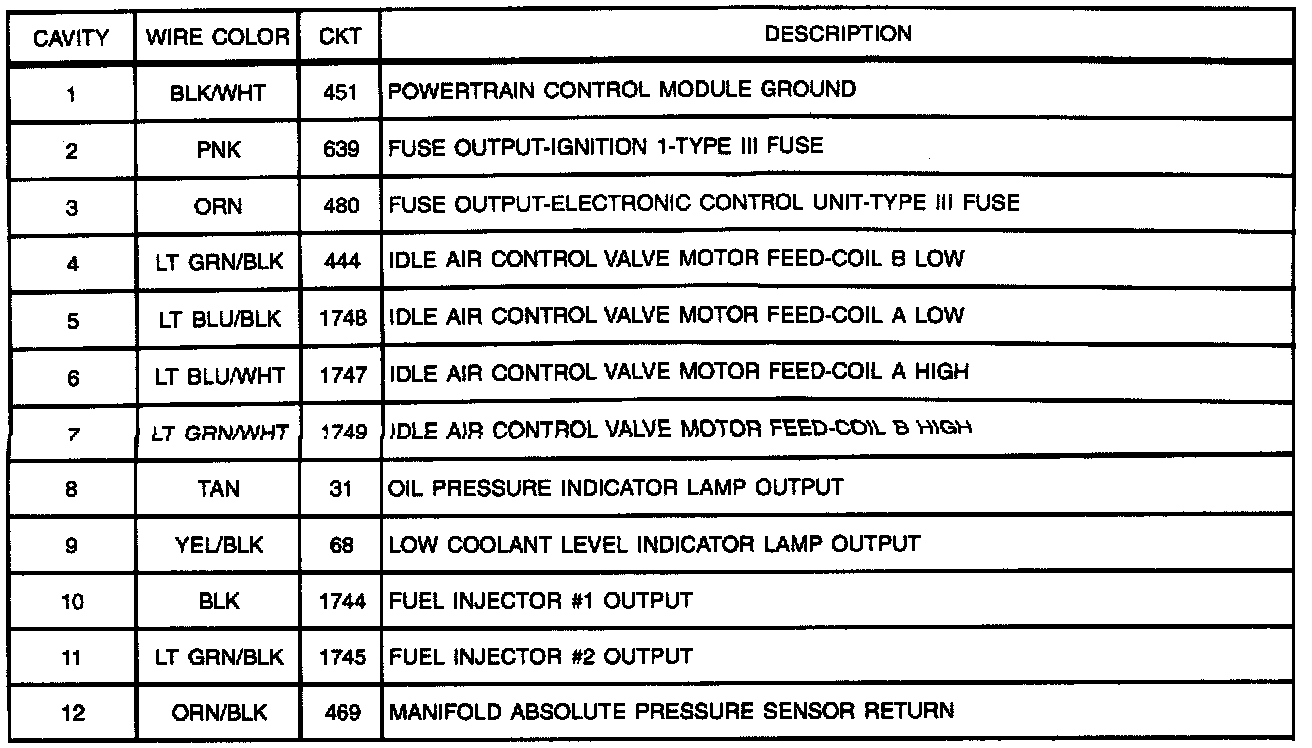

Powertrain Control Module: C1 (Part 2 Of 2):

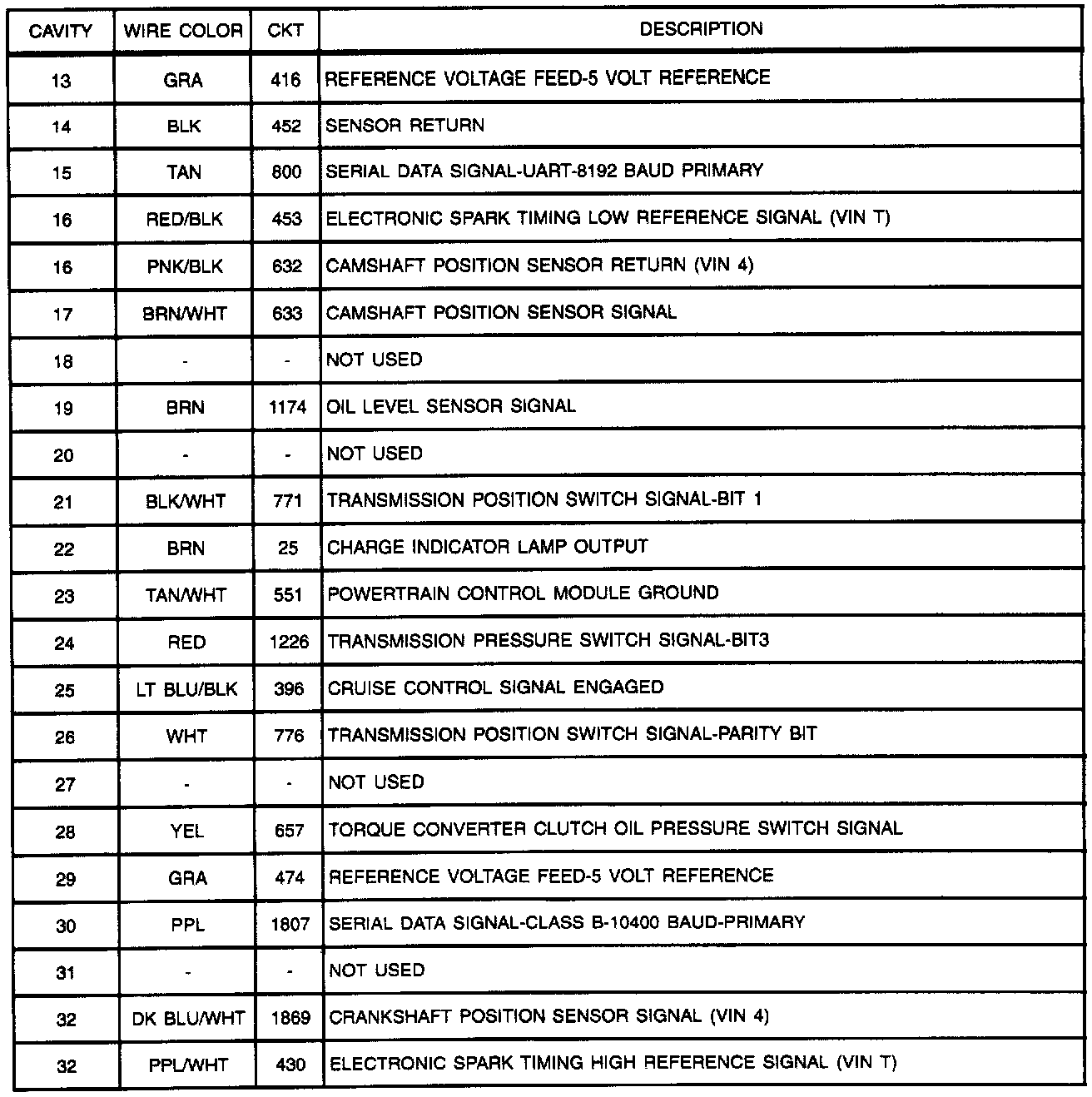

Powertrain Control Module: C2 (Part 1 Of 2):

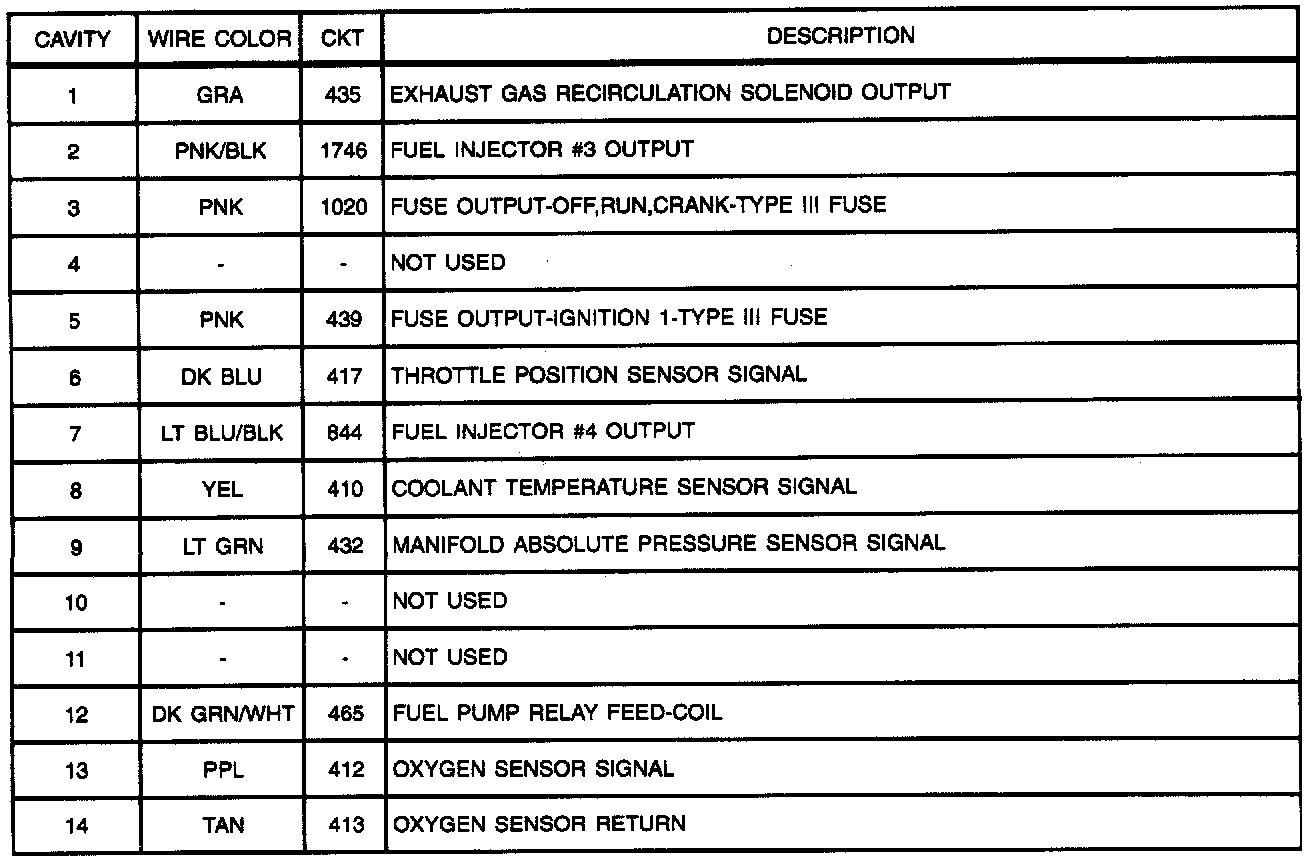

Powertrain Control Module: C2 (Part 2 Of 2):

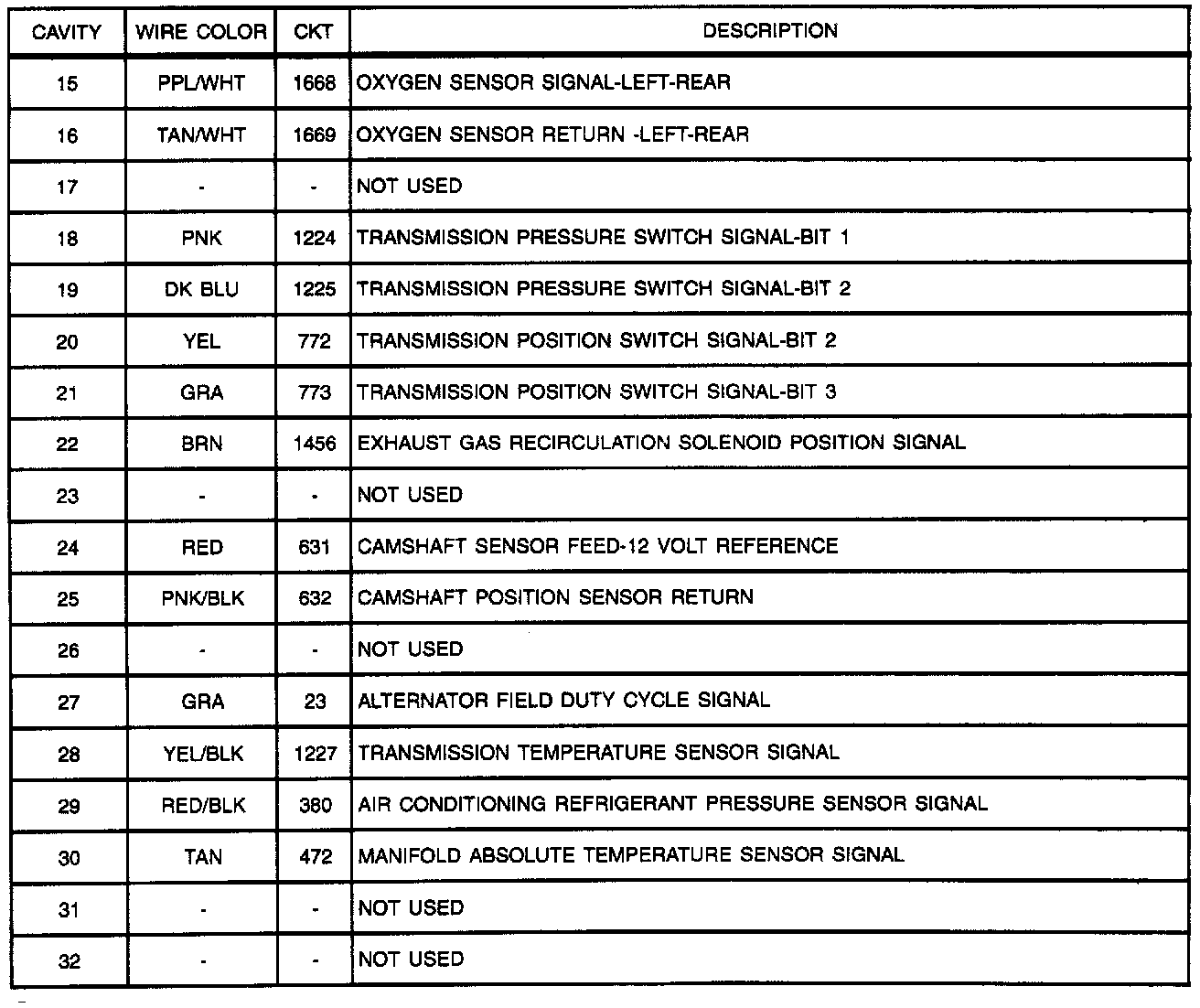

Powertrain Control Module: C3 (Part 1 Of 2):

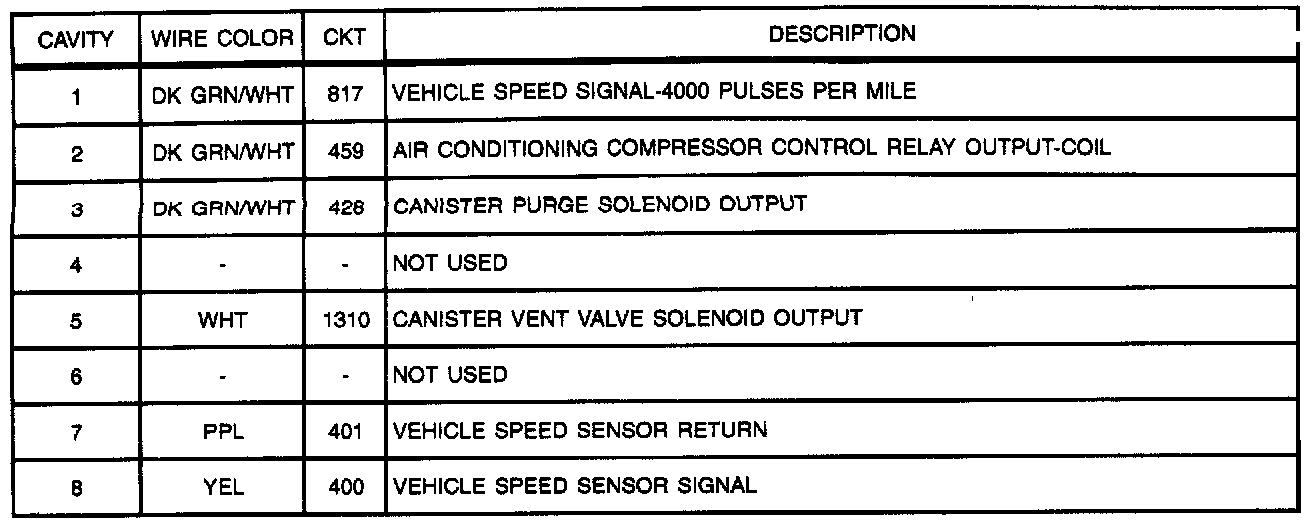

Powertrain Control Module: C3 (Part 2 Of 2):
