Chevrolet
>>
1994
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Connector B
>>
Pinout Description
Pinout Description

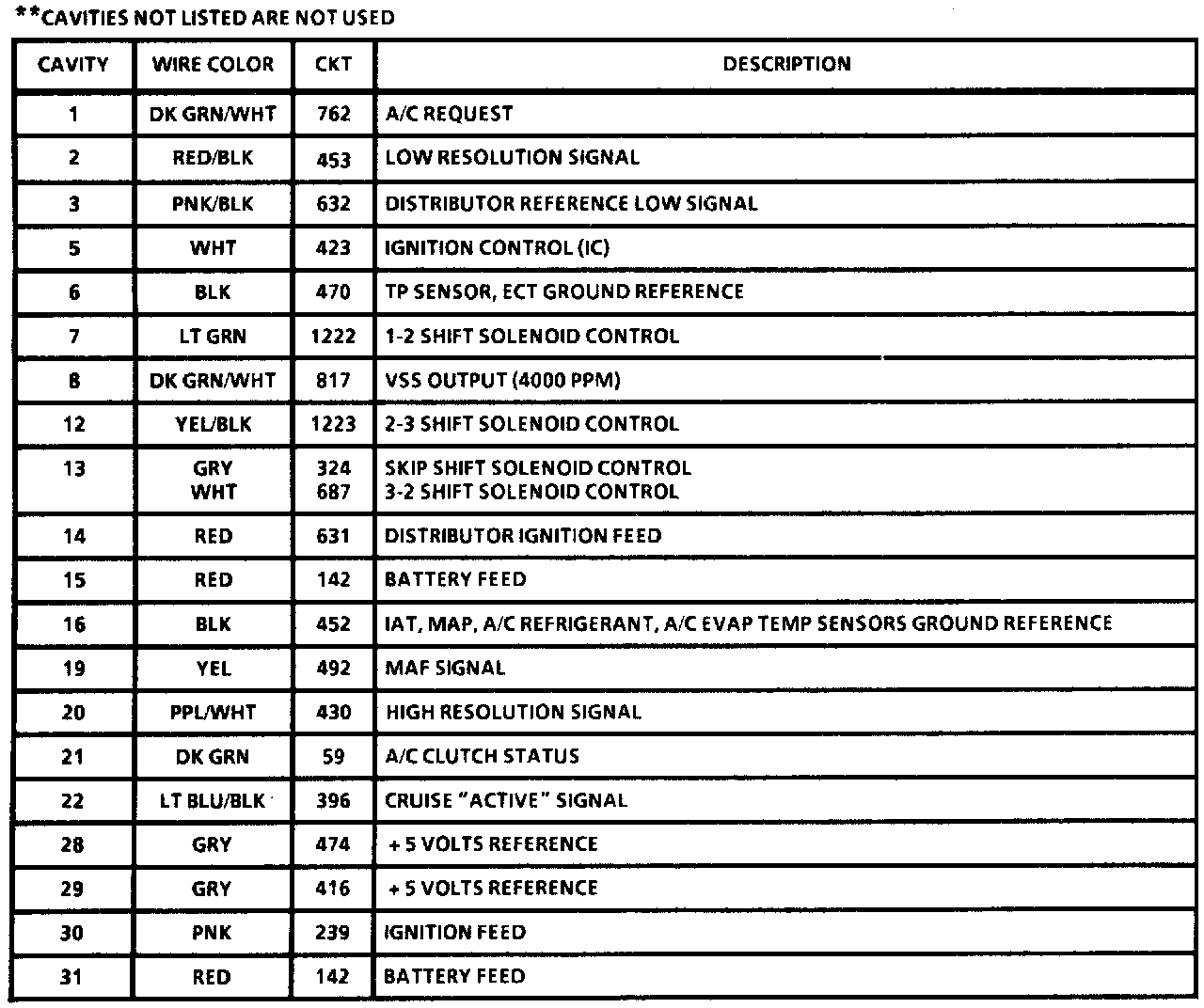

Powertrain Control Module (PCM): B:
