Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Fuse
Fuse

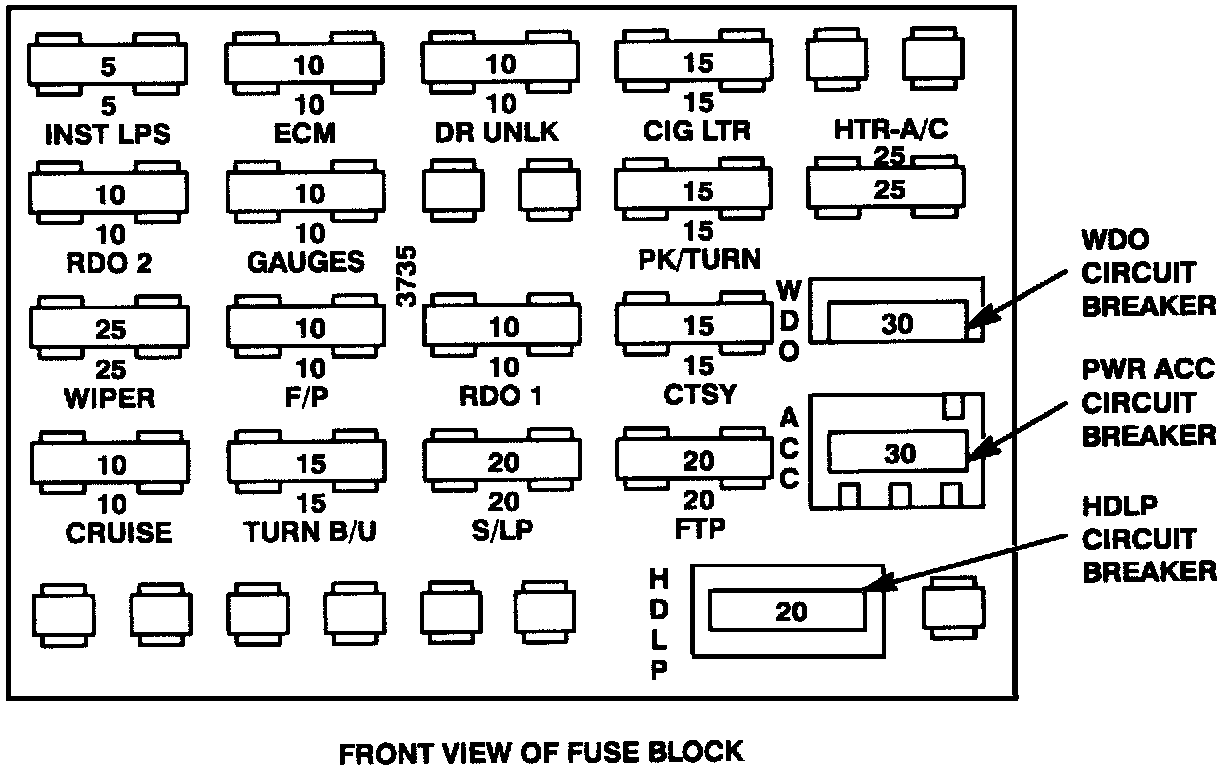

Fuse Block Details: Front View Of Fuse Block:

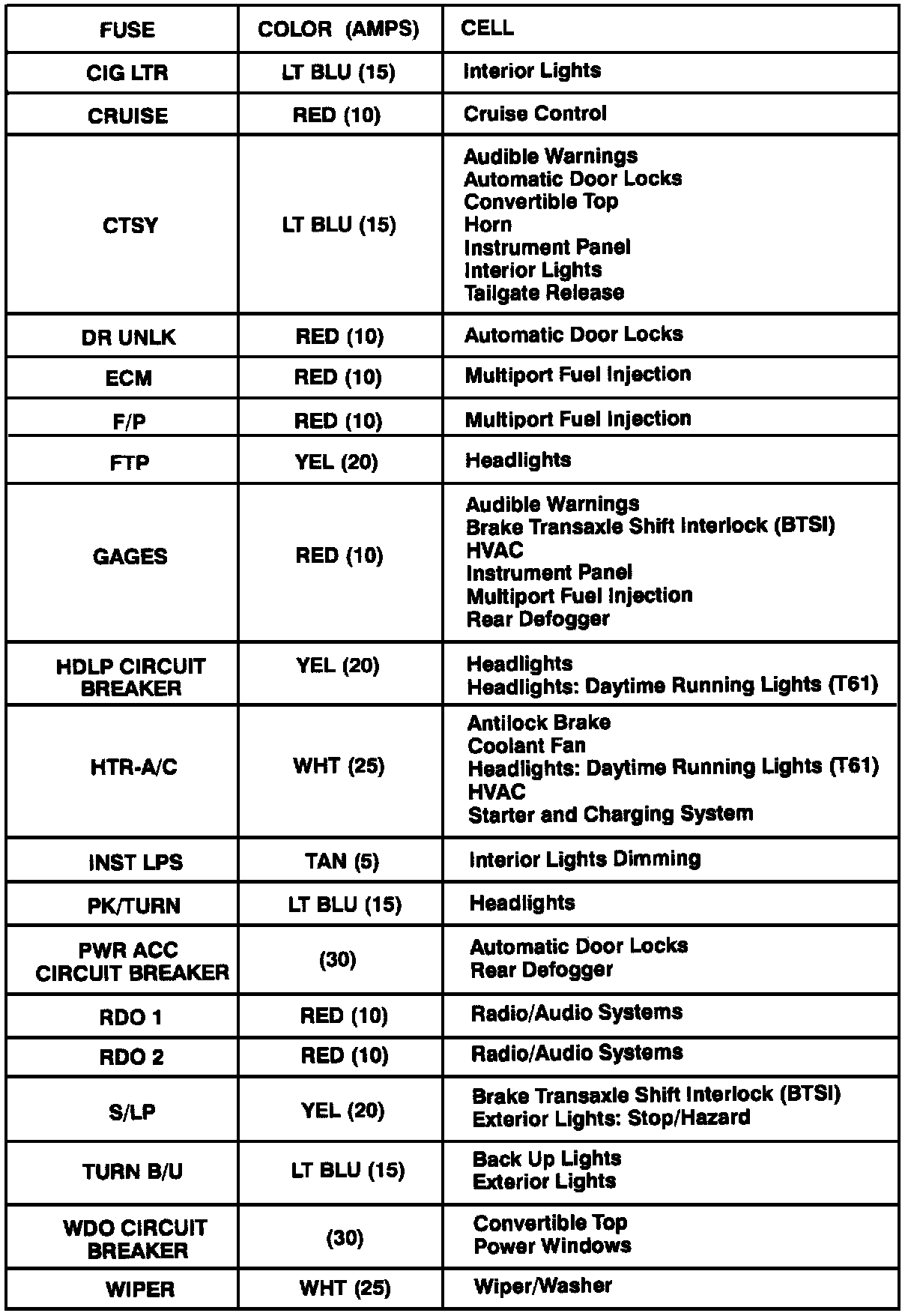

Fuse Block Details: Description:
