Home >> Chevrolet >> 1994 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> C2 (Pink) >> Pinout Description

Pinout Description

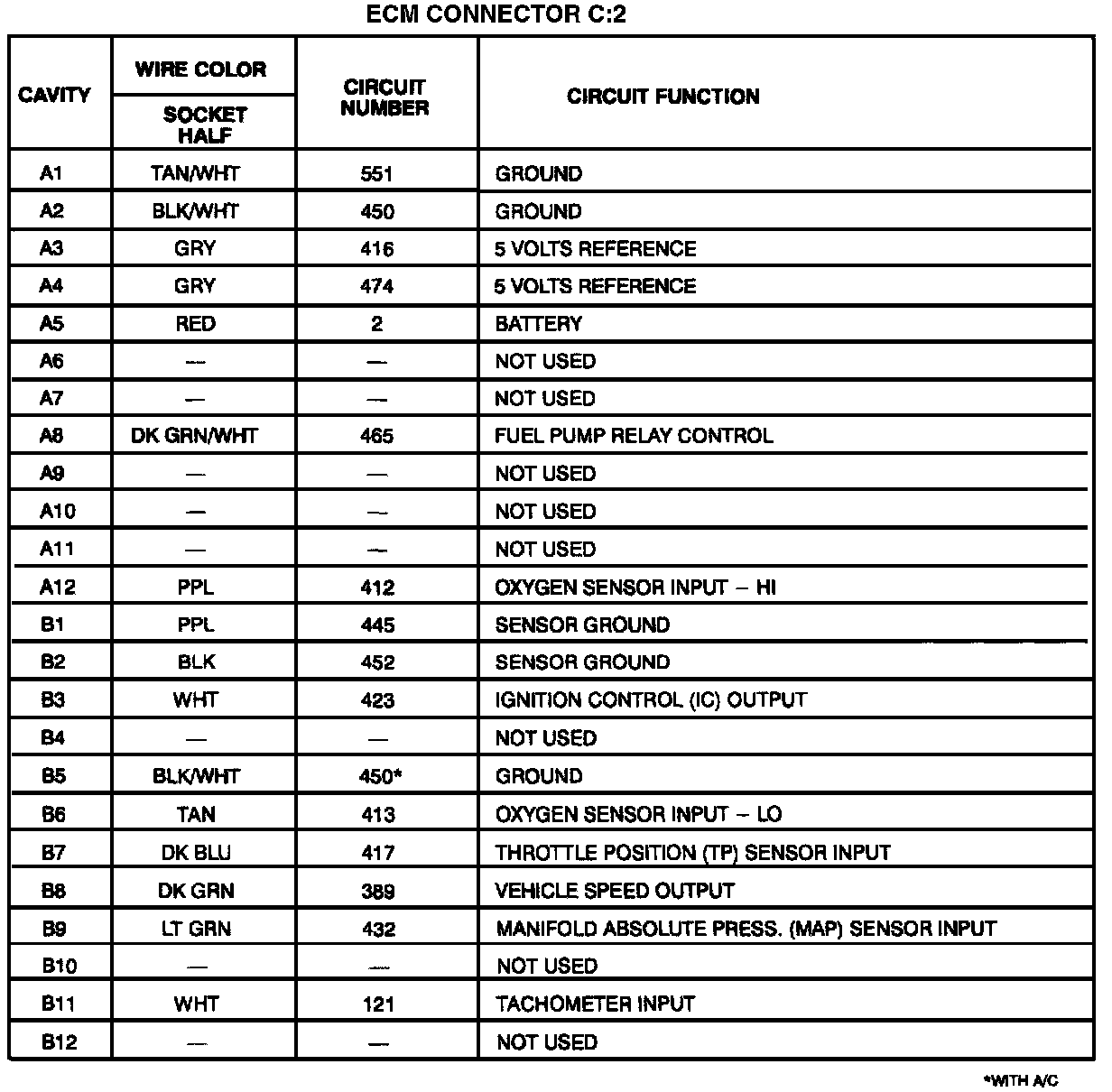

ECM Connector: C2 (Description):
