Compressor HVAC
>>
Compressor - Disassembly
>>
Direct Mounted
Direct Mounted

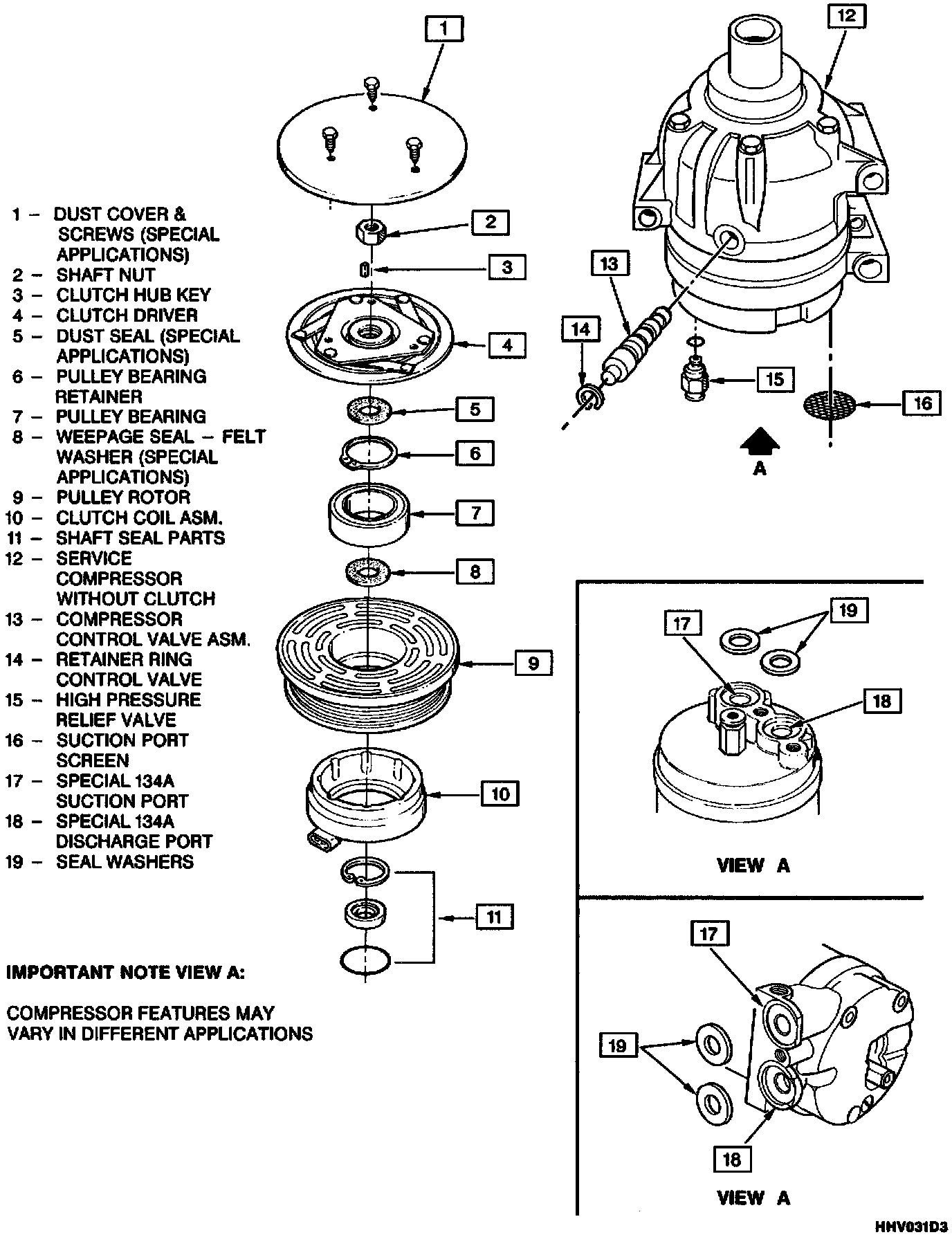

Compressor Components - Disassembled View:
