Compressor - Disassembly
>>
Conventional Mounted
Conventional Mounted

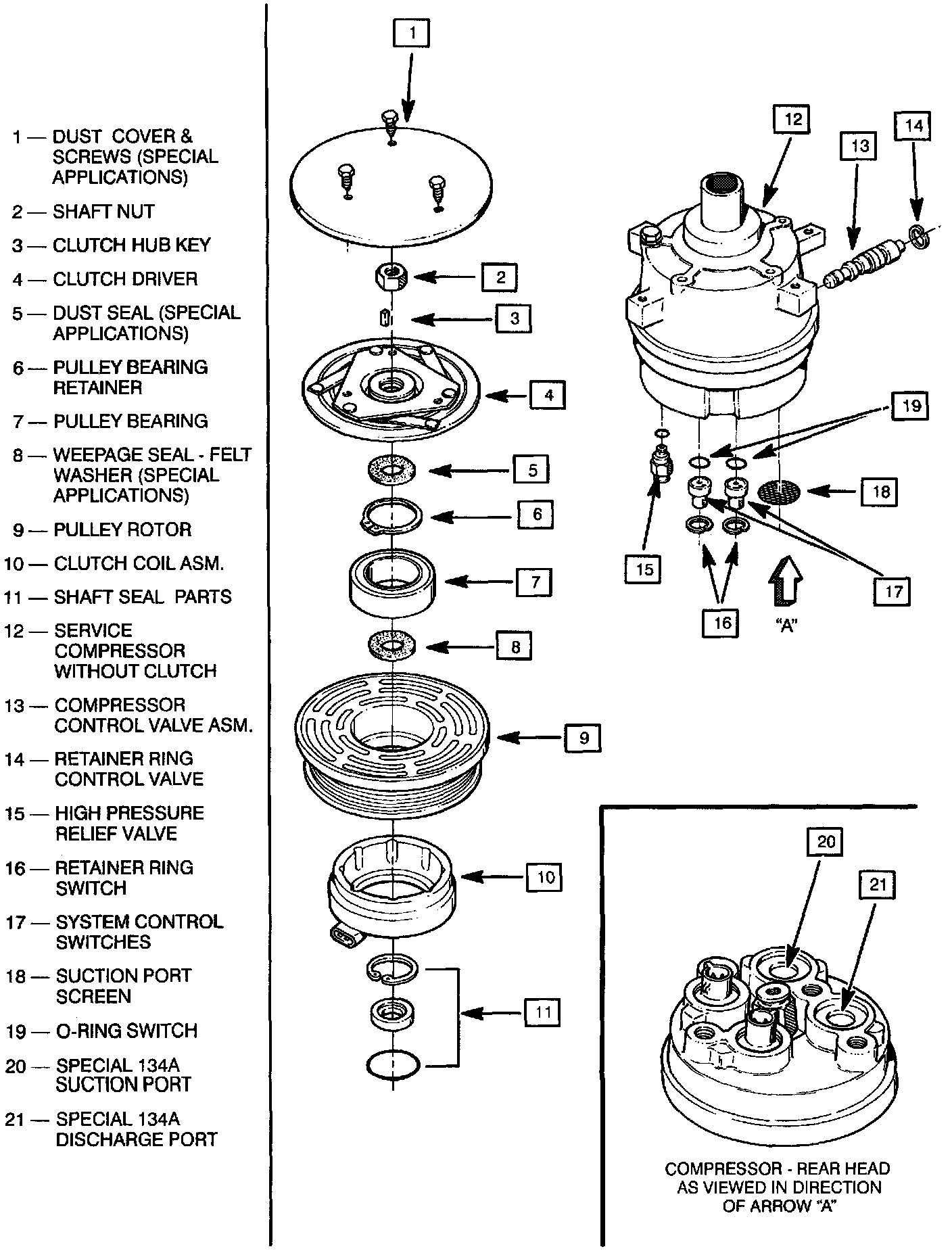

Compressor Components - Disassembled View:
