Home >> Chevrolet >> 1994 >> Caprice V8-265 4.3L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Distributor >> Locations >> Component Locations >> Distributor Ventilation System

Distributor Ventilation System

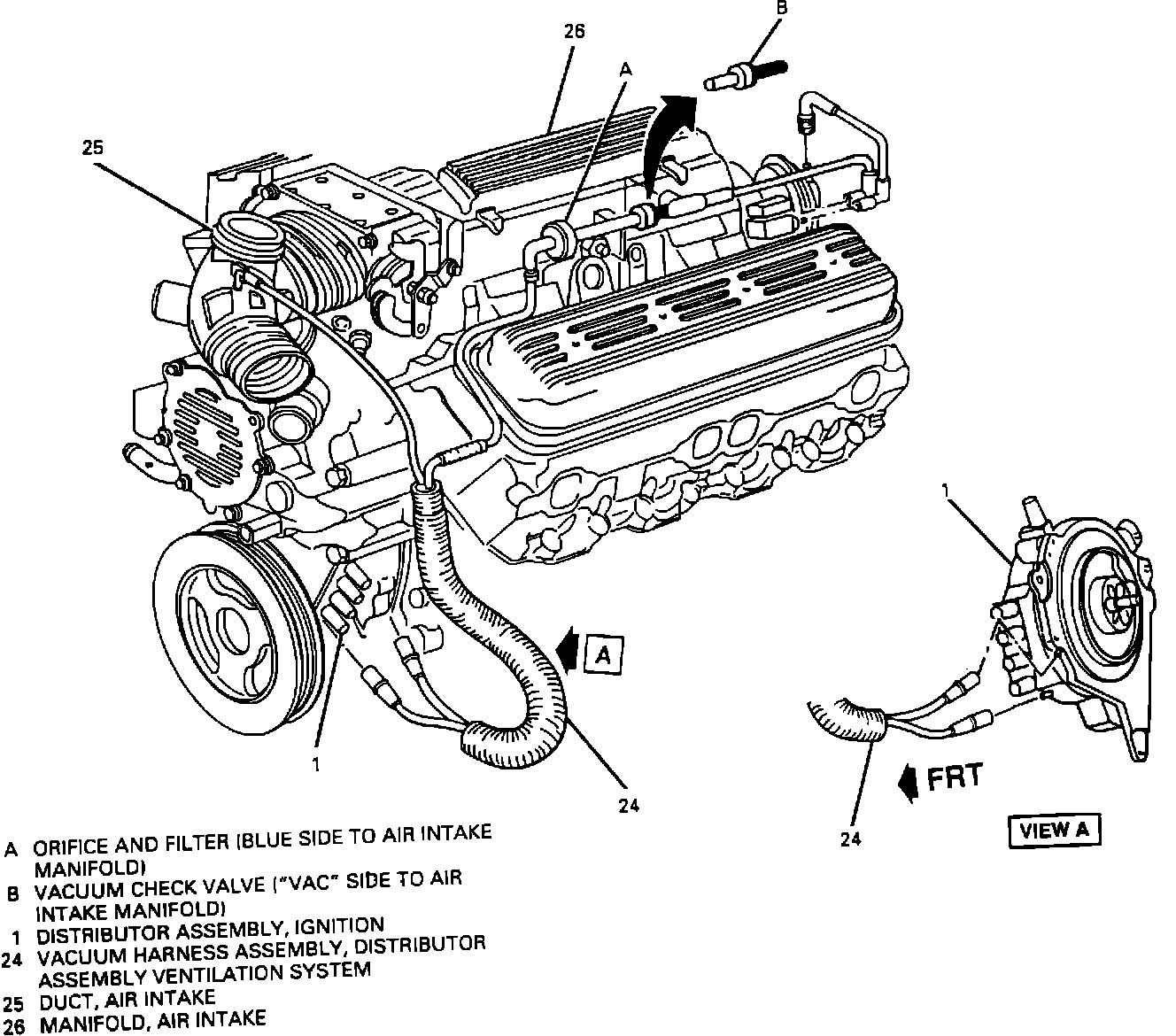

Distributor Ventilation System:





The distributor ventilation system consists of a vacuum line, orifice and filter and a one way check valve. The check valve and orifice are located on top side of the engine.
