Home >> Chevrolet >> 1994 >> Caprice V8-265 4.3L >> Repair and Diagnosis >> Lighting and Horns >> Lamp Control Module >> Diagrams >> Connector Views >> Twilight Sentinel Module

Twilight Sentinel Module

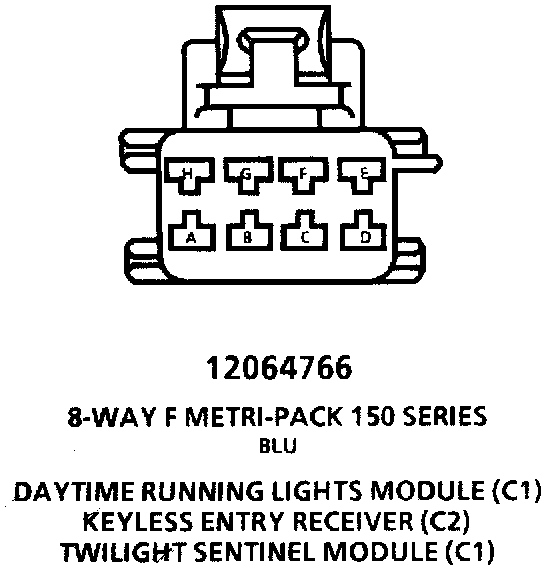

Daytime Running Lights Module (C1), Keyless Entry Receiver (C2), Twilight Sentinel Module (C1):

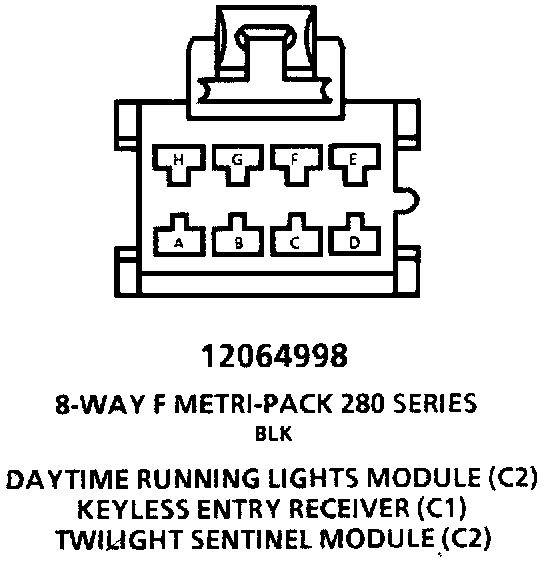

Daytime Running Lights Module (C2), Keyless Entry Receiver (C1), Twilight Sentinel Module (C2):
