Home >> Chevrolet >> 1994 >> Caprice V8-265 4.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Connector C >> Pinout Description

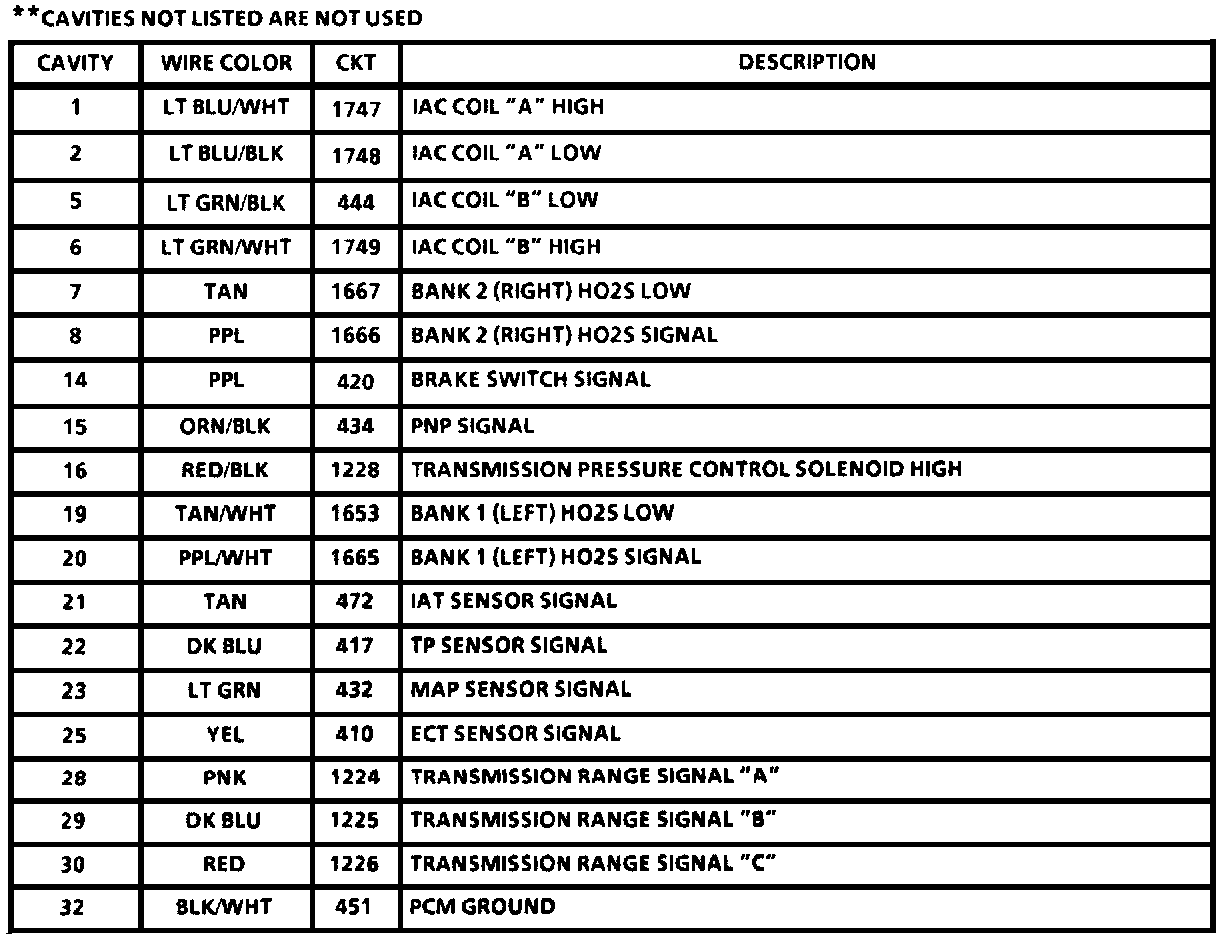

Pinout Description

Powertrain Control Module (PCM):

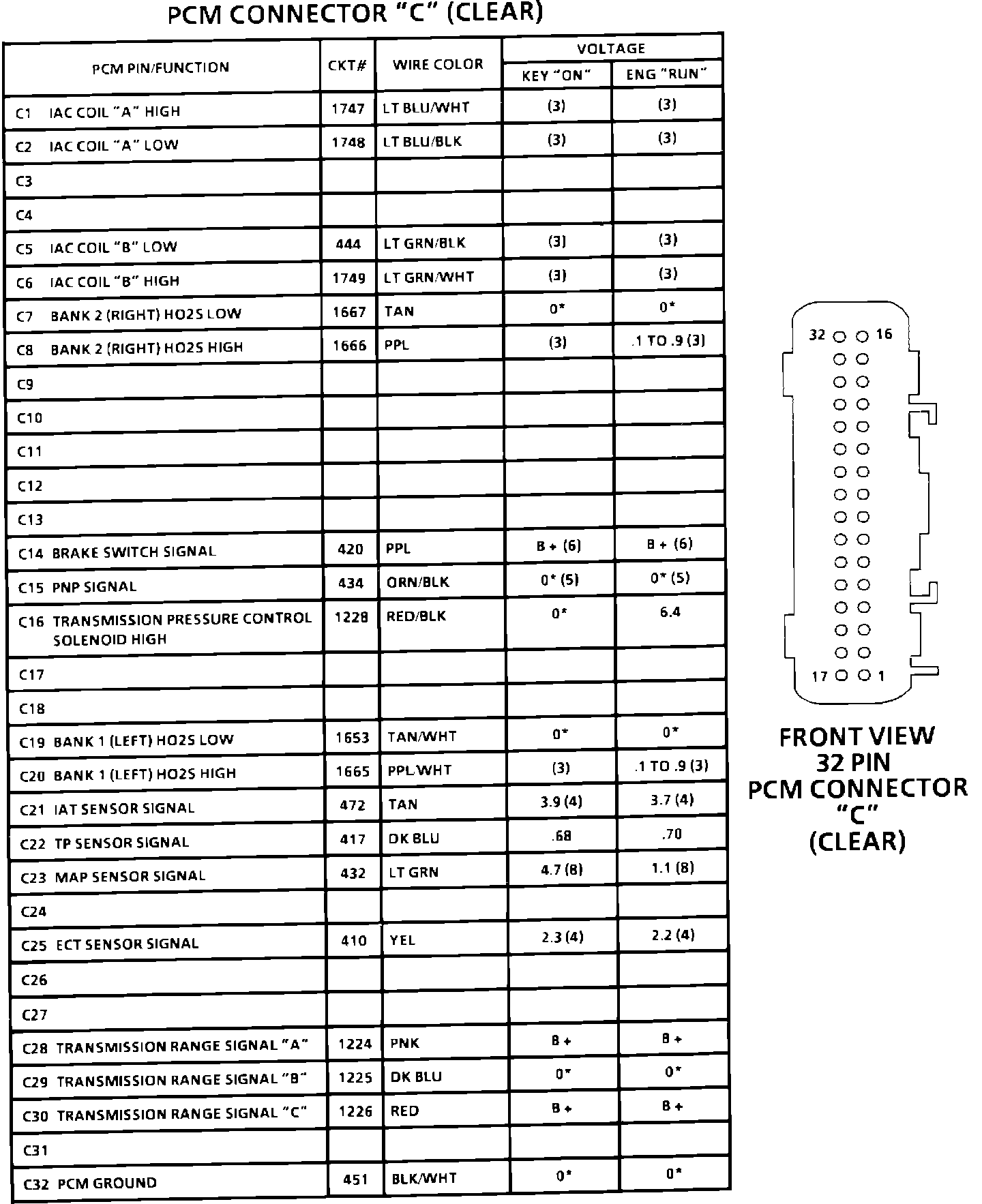

PCM Voltage Chart.:
