Home >> Chevrolet >> 1994 >> Caprice V8-265 4.3L >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Electronic Brake Control Module (EBCM) Bracket

Electronic Brake Control Module (EBCM) Bracket

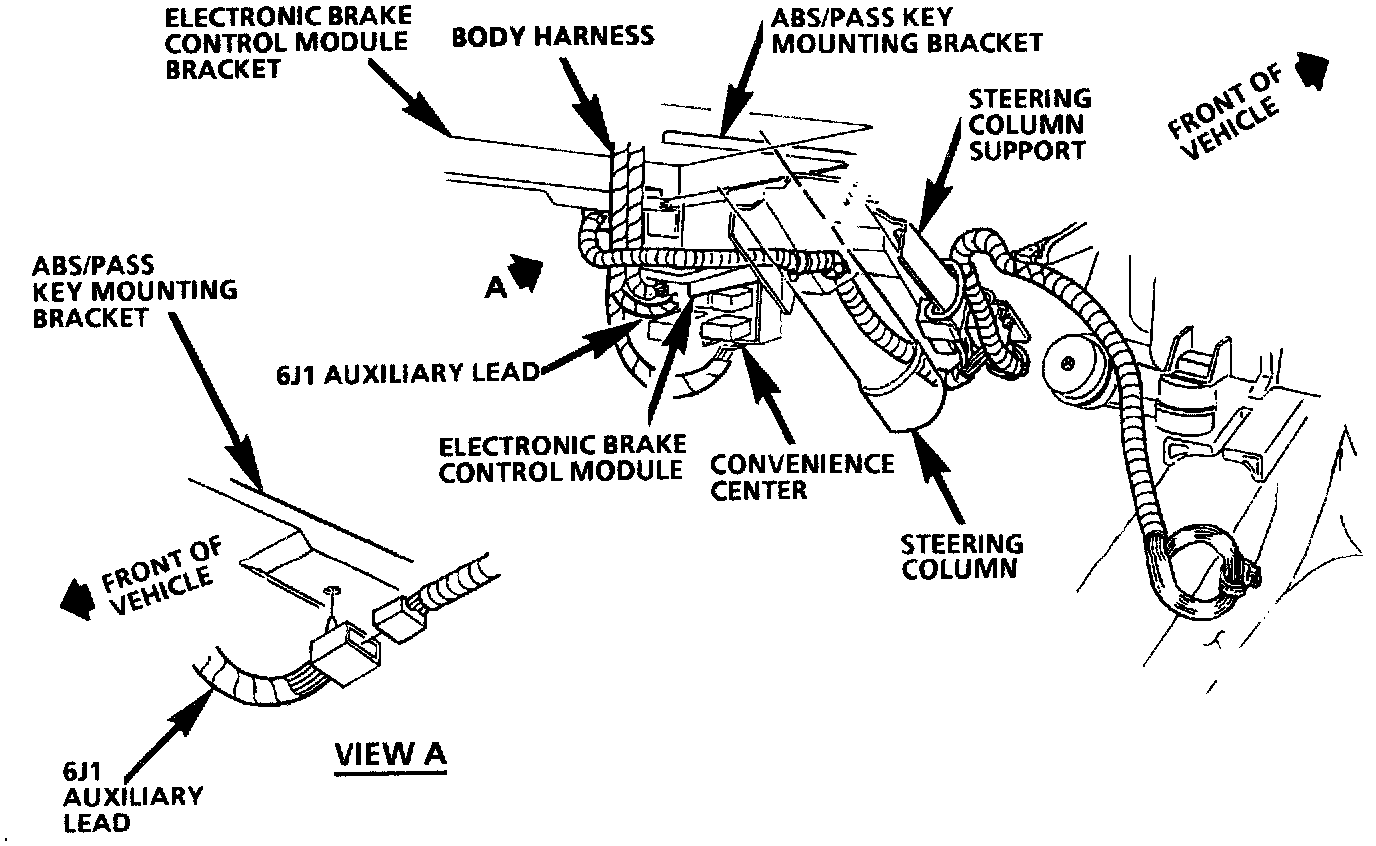

Behind LH I/P, LH Of Brake Pedal Bracket:

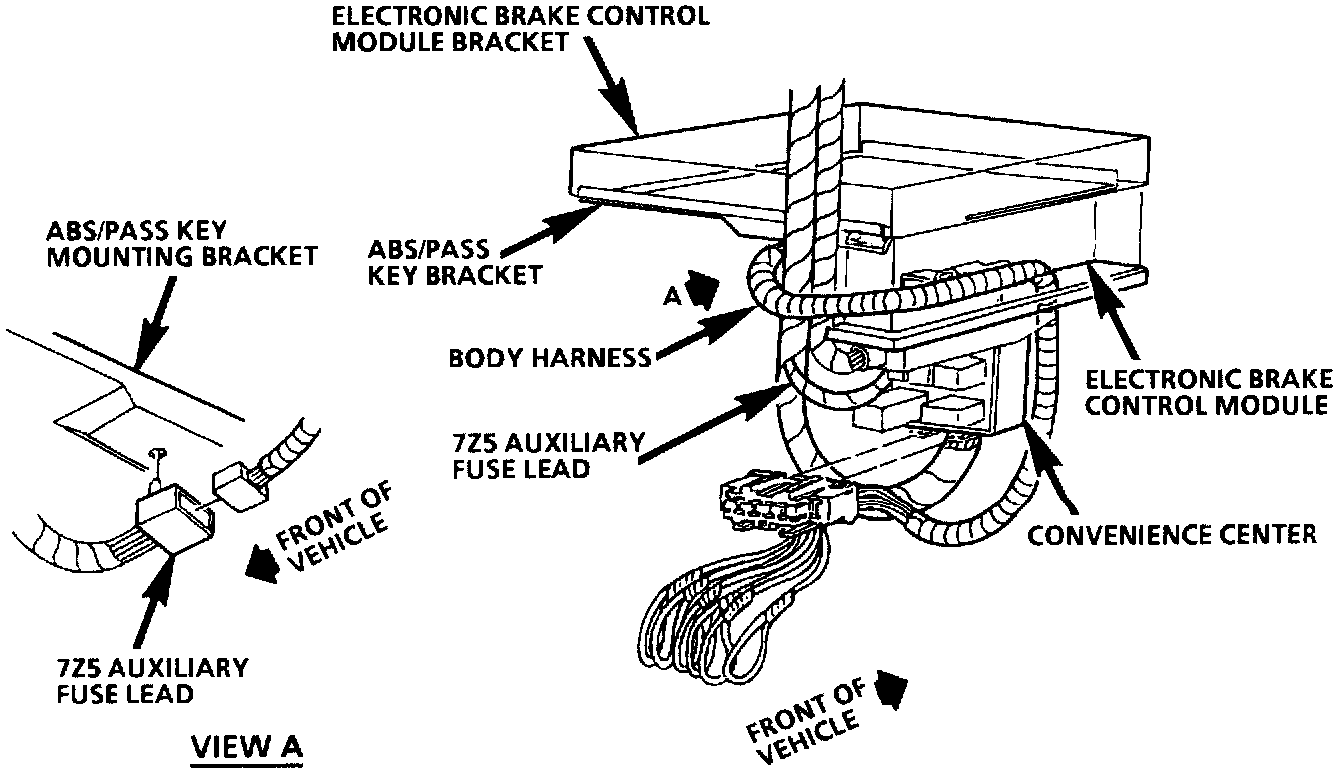

Under I/P:

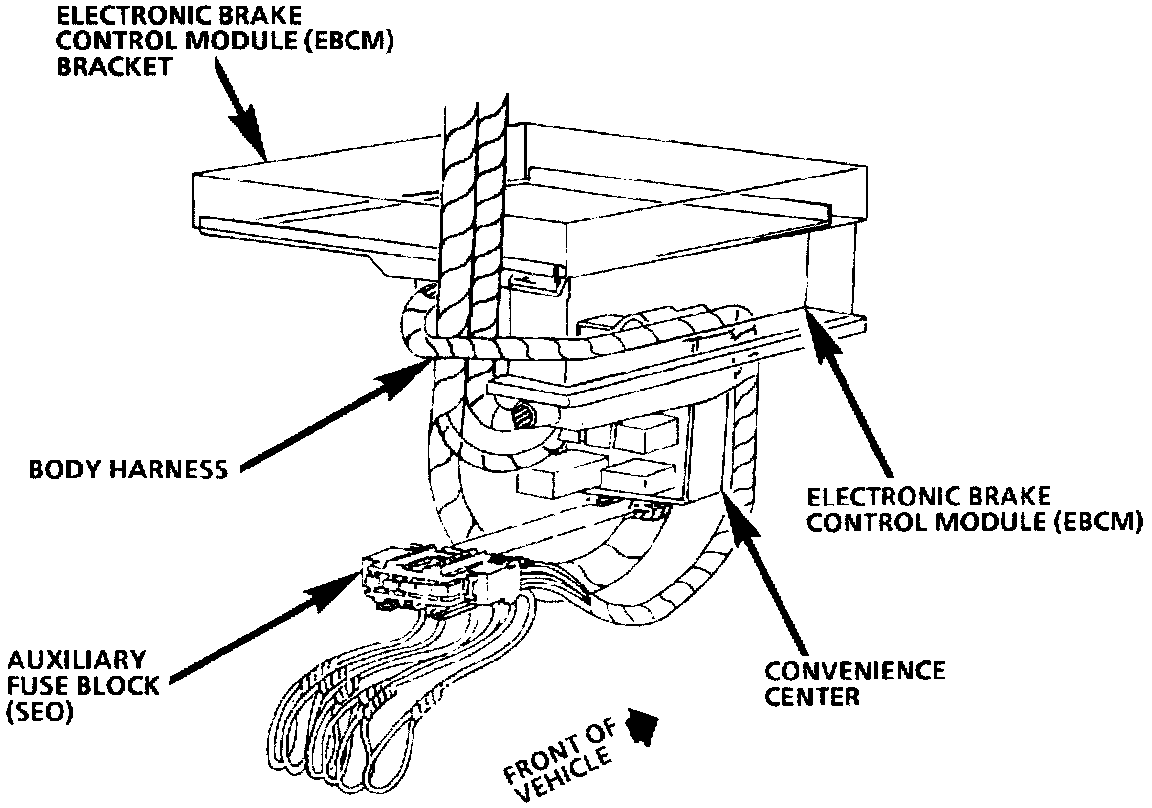

Under I/P:
