Home >> Chevrolet >> 1992 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Components >> Relays >> Defogger Relay

Defogger Relay

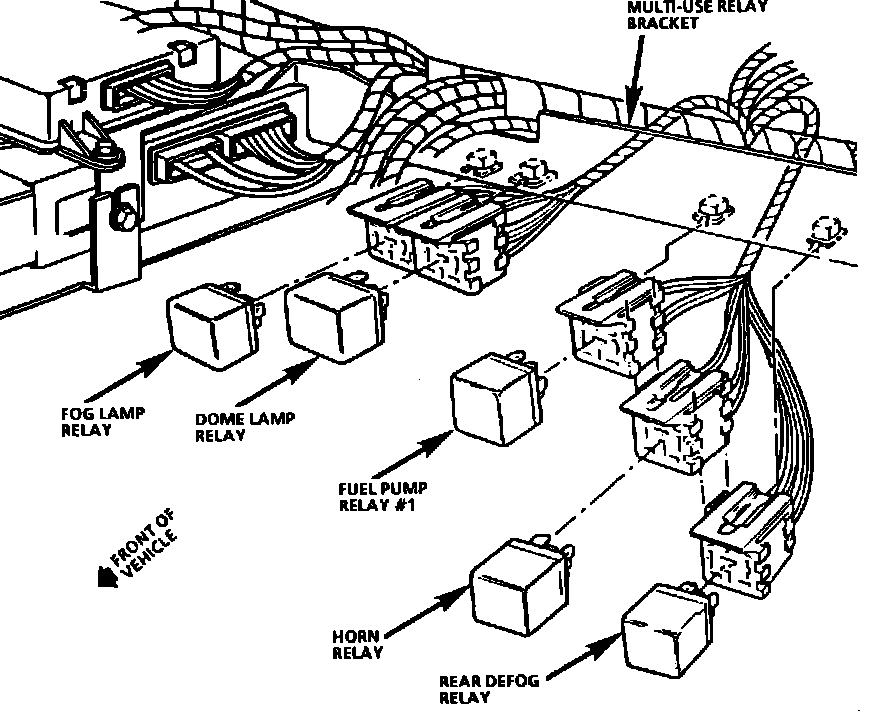

Relays, Below RH Side Of I/P:

Below RH Side Of I/P
