Connector Views
>>
Control Module HVAC
Control Module HVAC

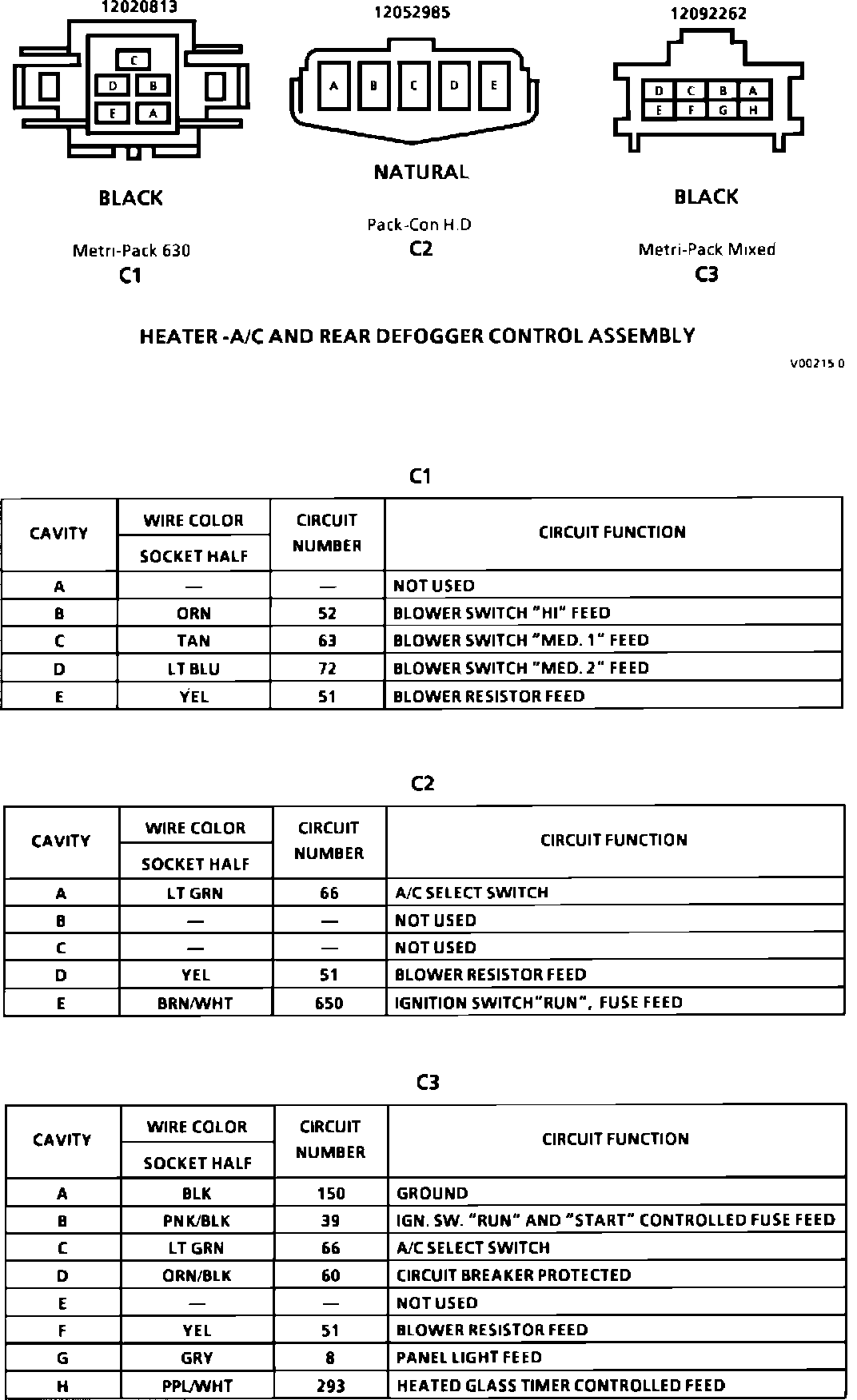

Heater-A/C And Rear Defogger Control Assembly:
