Programmer

Programmer:

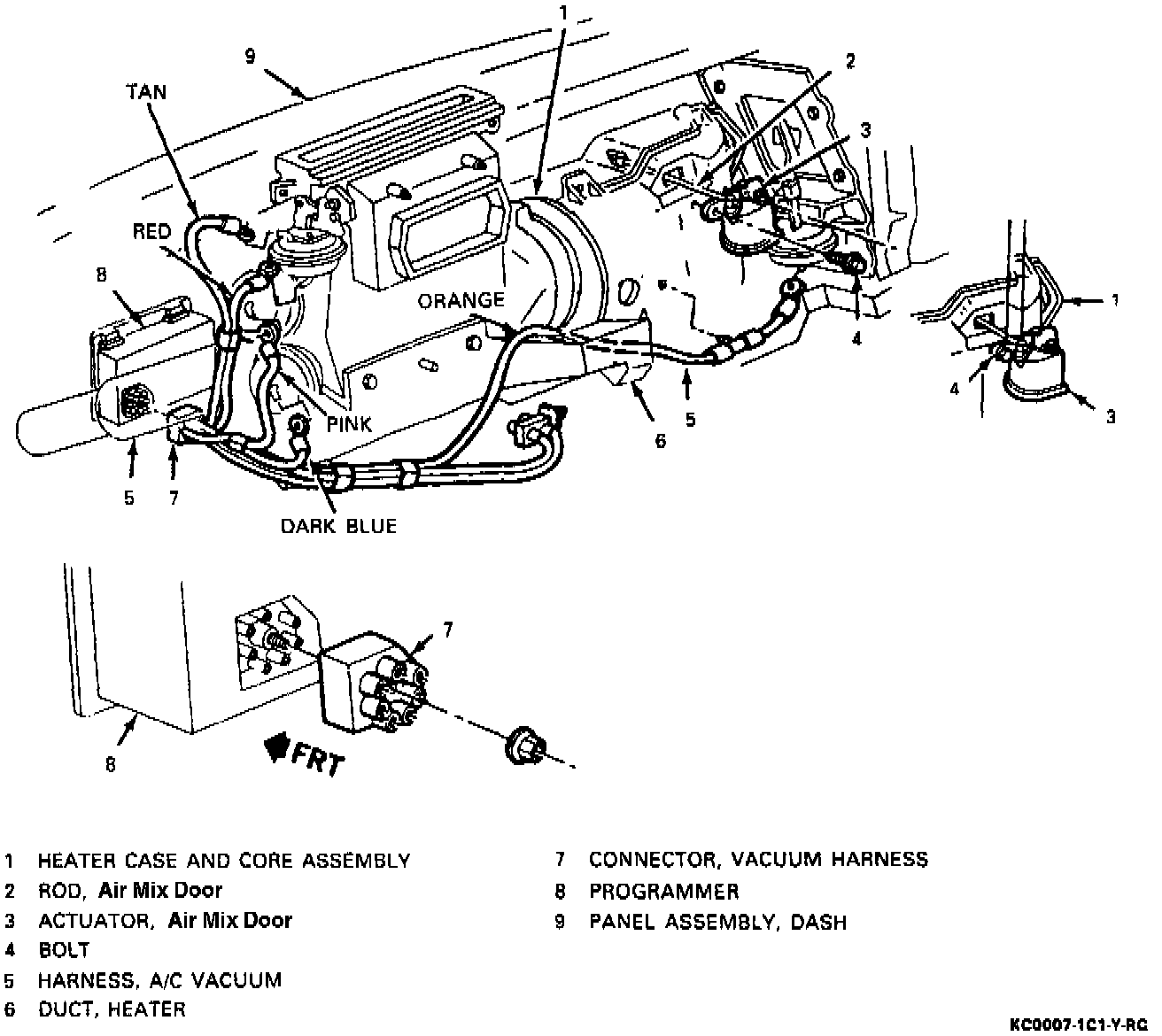

Vacuum Line Routings And Air Mix Door Actuator:

REMOVE
1. Battery negative cable.
2. Instrument panel left hand sound insulator.
3. Climate control programmer electrical connector.
4. Air valve actuator vacuum harness.
5. Programmer attaching screw and programmer.

INSTALL
1. Climate control programmer. Tighten screw to 1.9 Nm (17 ft lb).
2. Air valve actuator vacuum harness.
3. Programmer electrical connector.
4. Instrument panel left hand sound insulator.
5. Battery negative cable.
