Blower Motor Power Module

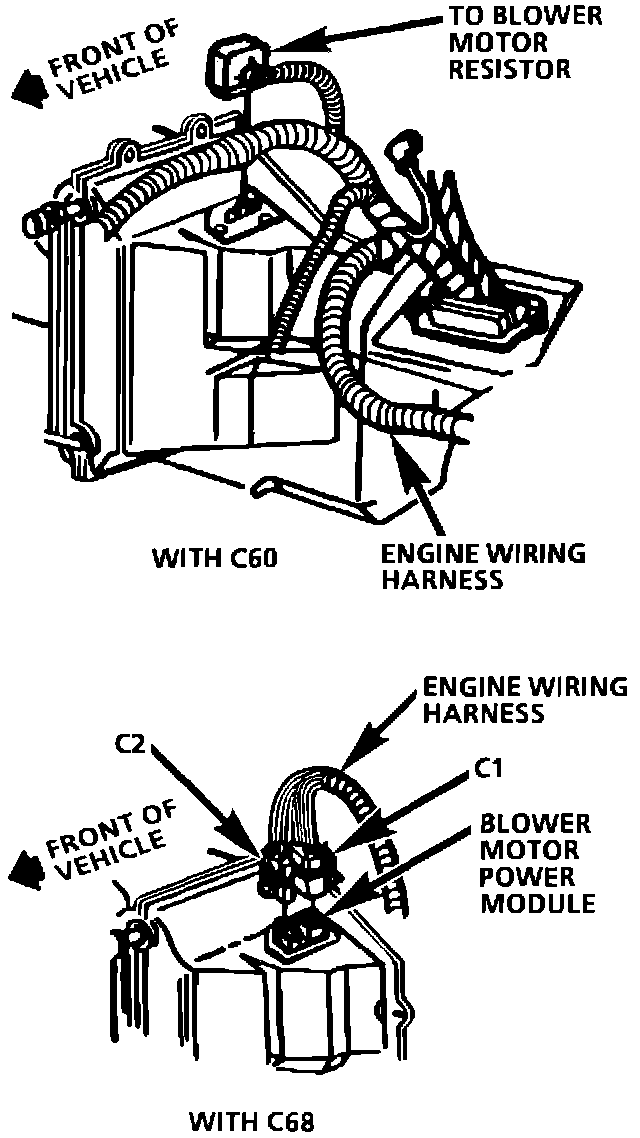

Rear RH Side Of Engine Compartment:

REMOVE
1. Battery negative cable.
2. Electrical connector.
3. Screws retaining blower motor power module

INSTALL
1. Blower motor power module. Tighten screws to 1.4 Nm (12 in lb).
2. Electrical connector.
3. Negative battery cable.
