Home >> Chevrolet >> 1990 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

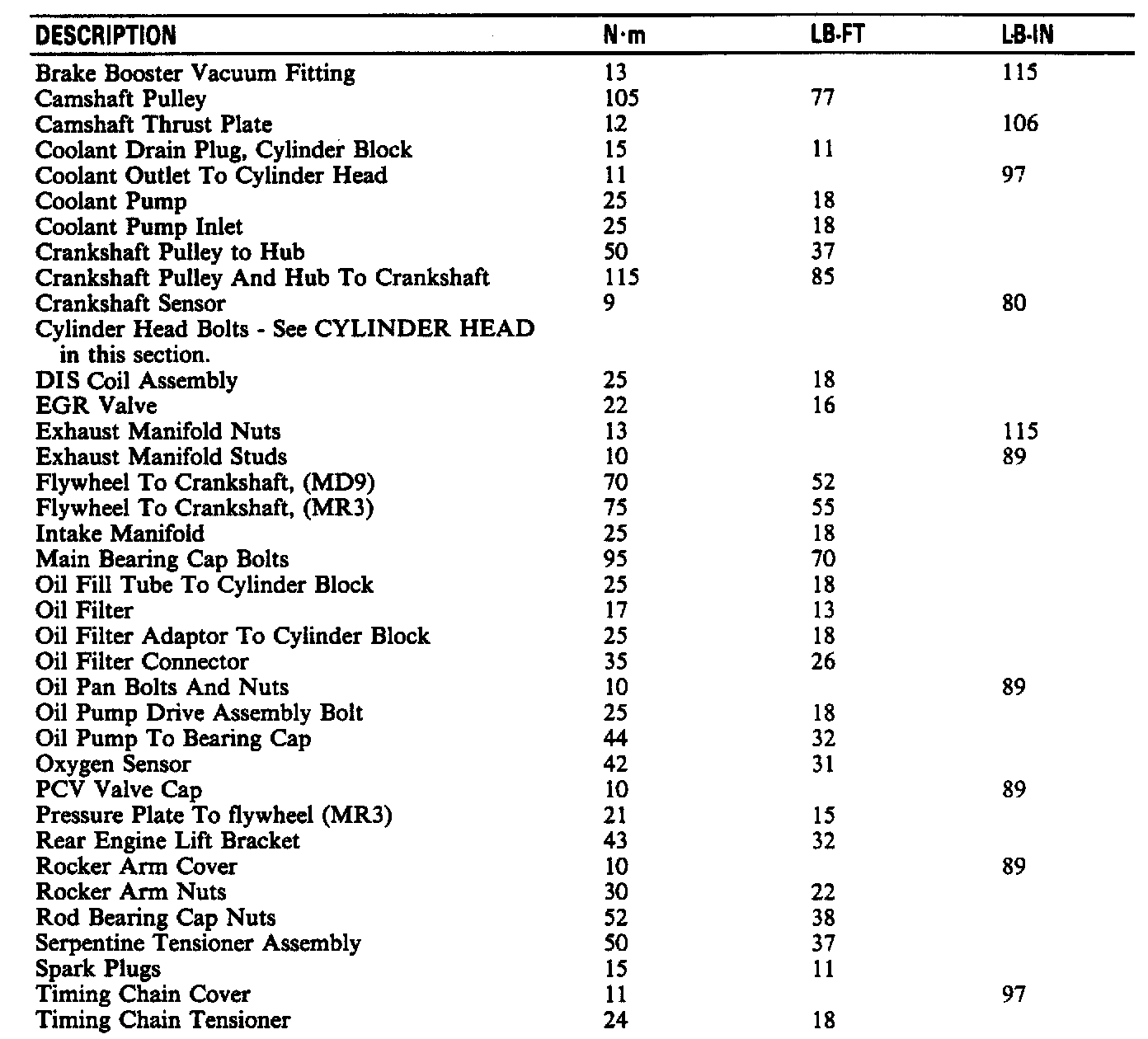

Torque Specifications:

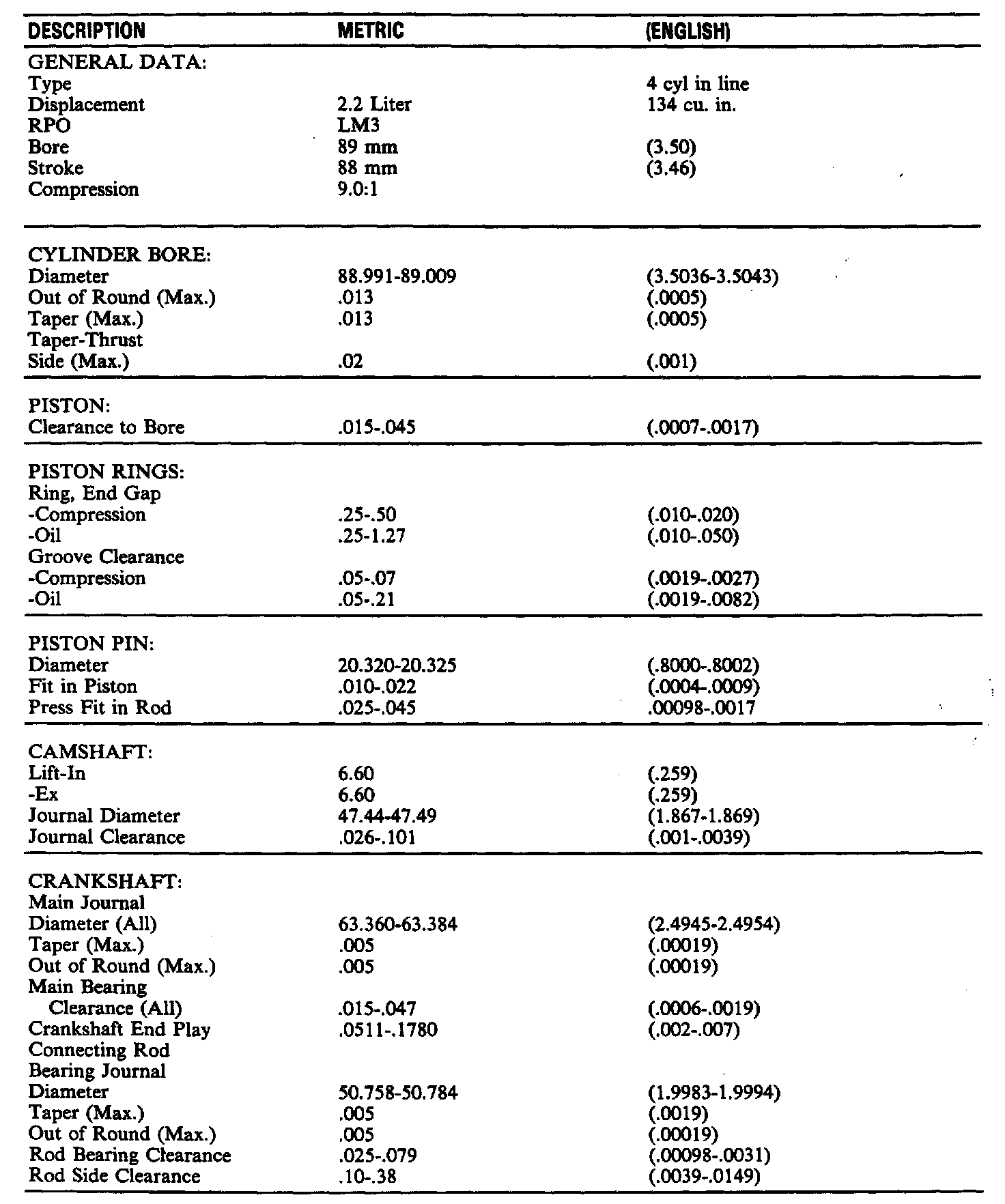

Engine Specifications:

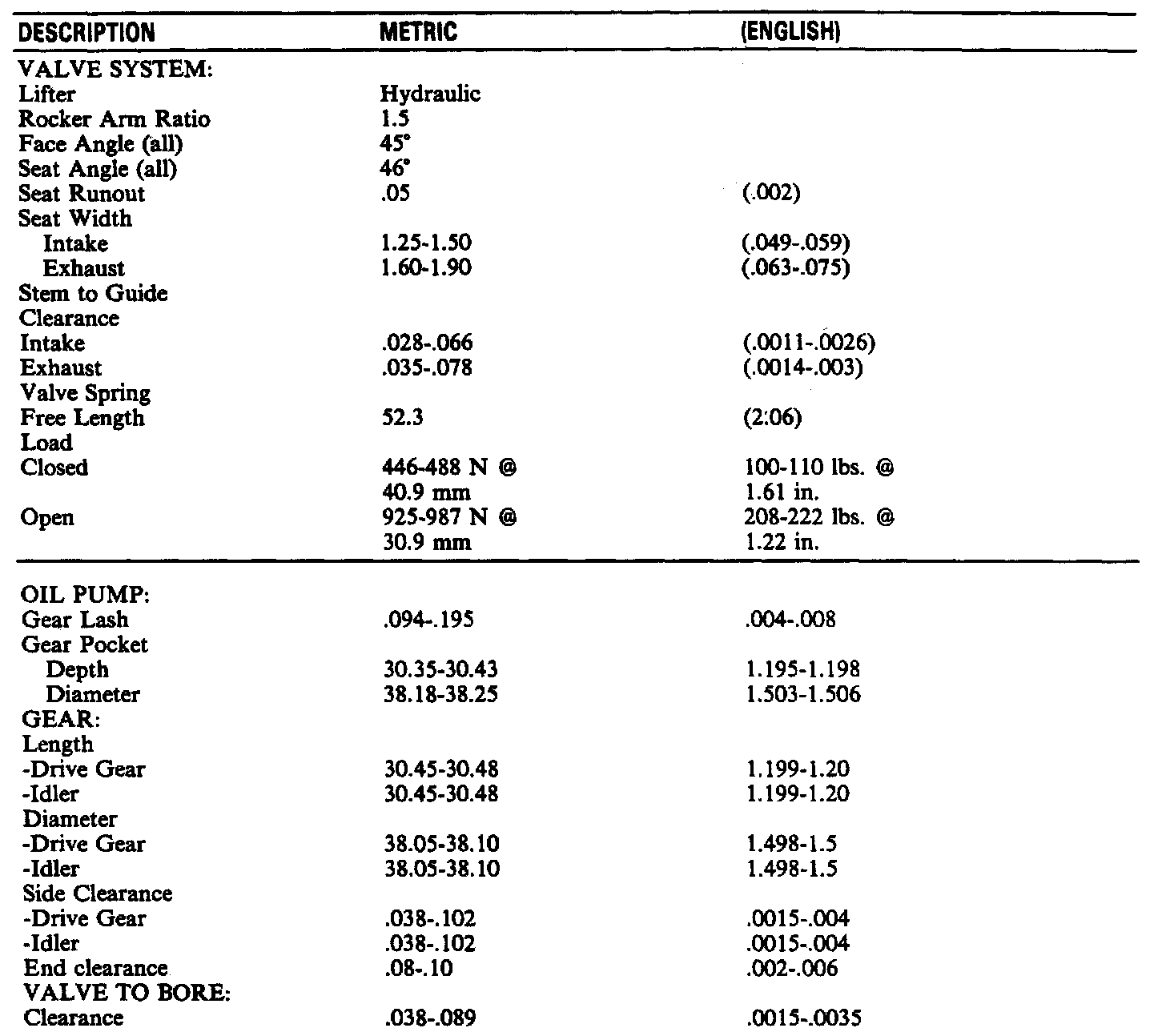

Engine Specifications:

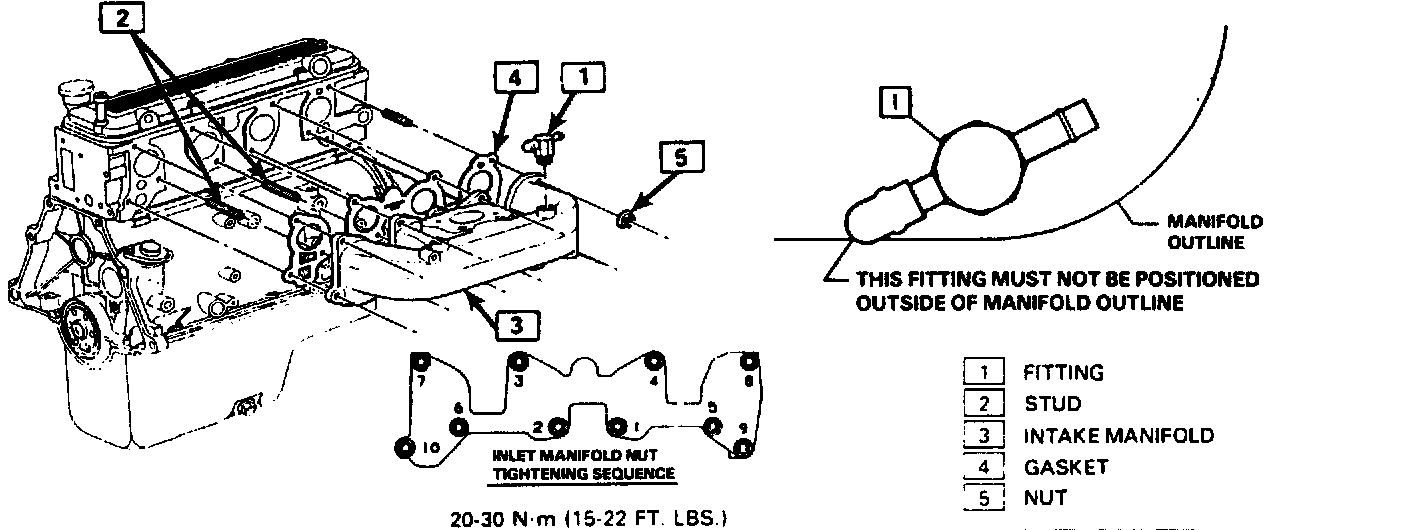

Intake Manifold Torque Sequence:

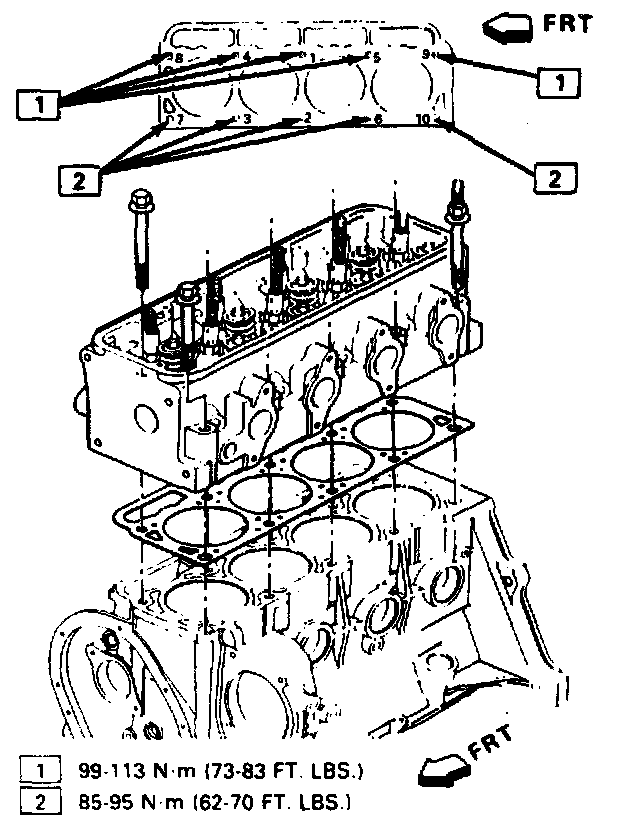

Cylinder Head Torque Sequence:
