Home >> Chevrolet >> 1990 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams

Engine Control Module: Diagrams

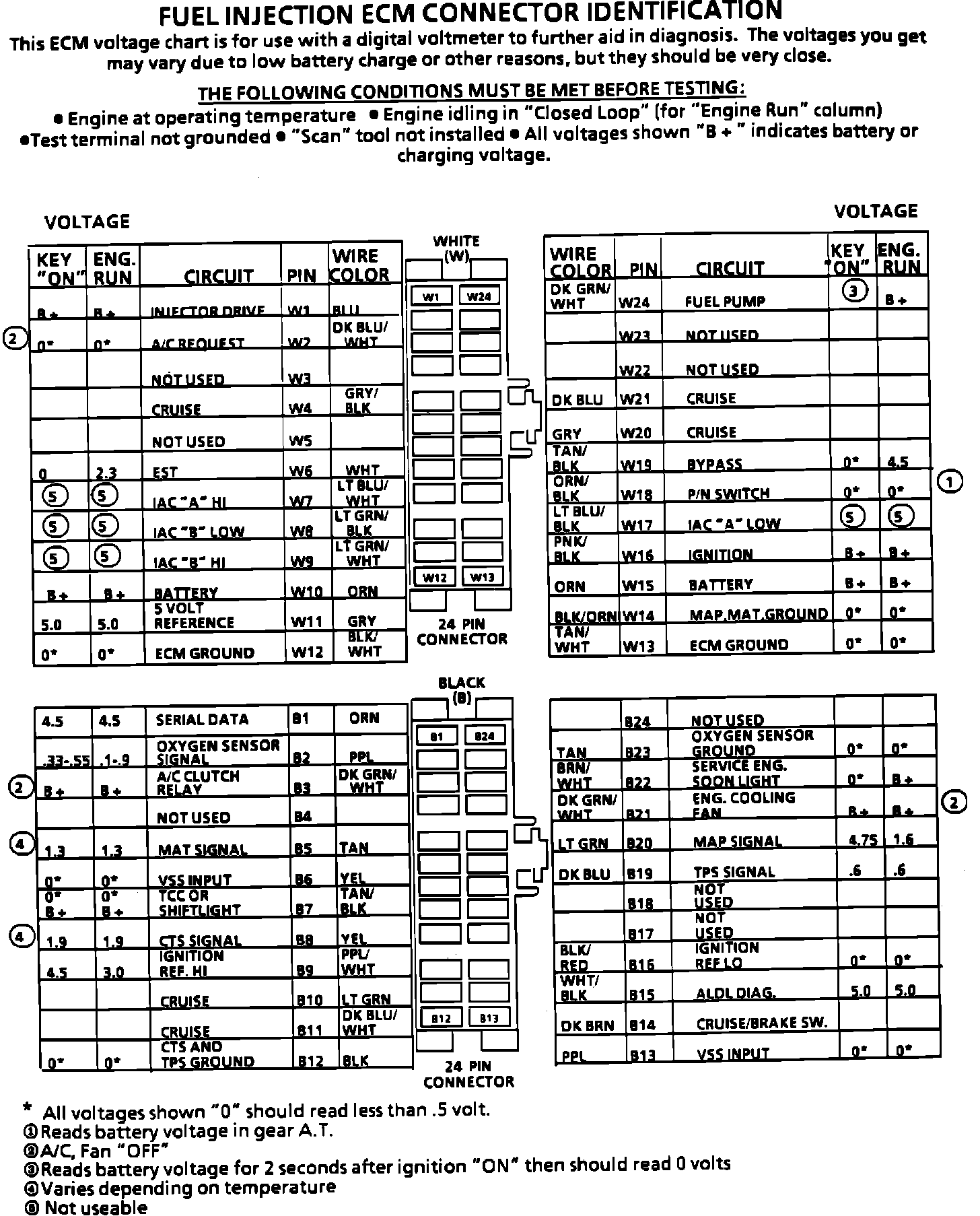

ECM Terminal End View:
