Electronic Control Module (ECM)
Electronic Control Module (ECM)

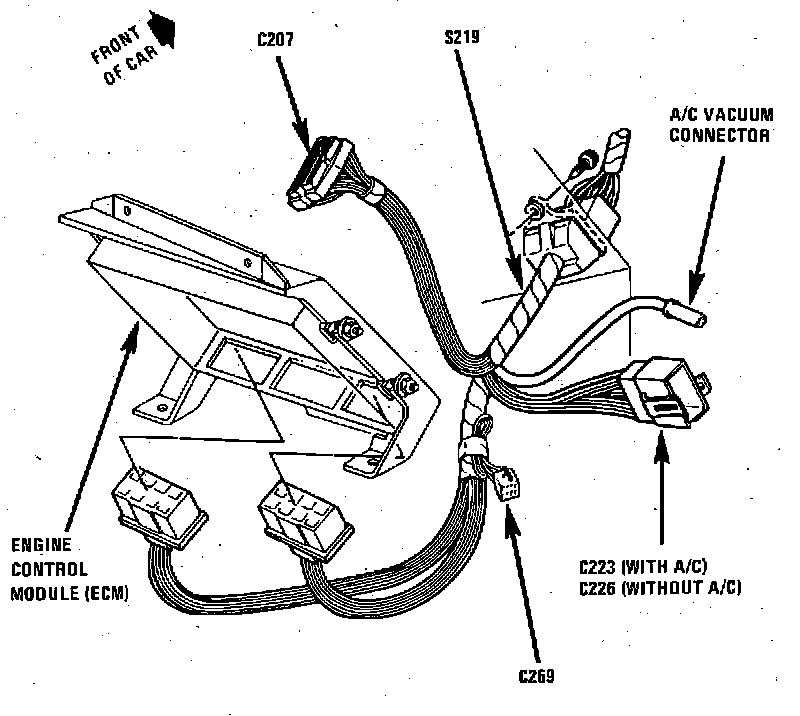

Behind RH Side Of I/P:
Engine Compartment Component Locations.:
Behind RH Side Of I/P
Applicable to: Cavalier w/4-134/2.2L Engine
