Home
>>
Chevrolet
>>
1990
>>
Caprice V6-262 4.3L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Engine Control Module
>>
Computer Command Control - Throttle Body Fuel Injection
Computer Command Control - Throttle Body Fuel Injection

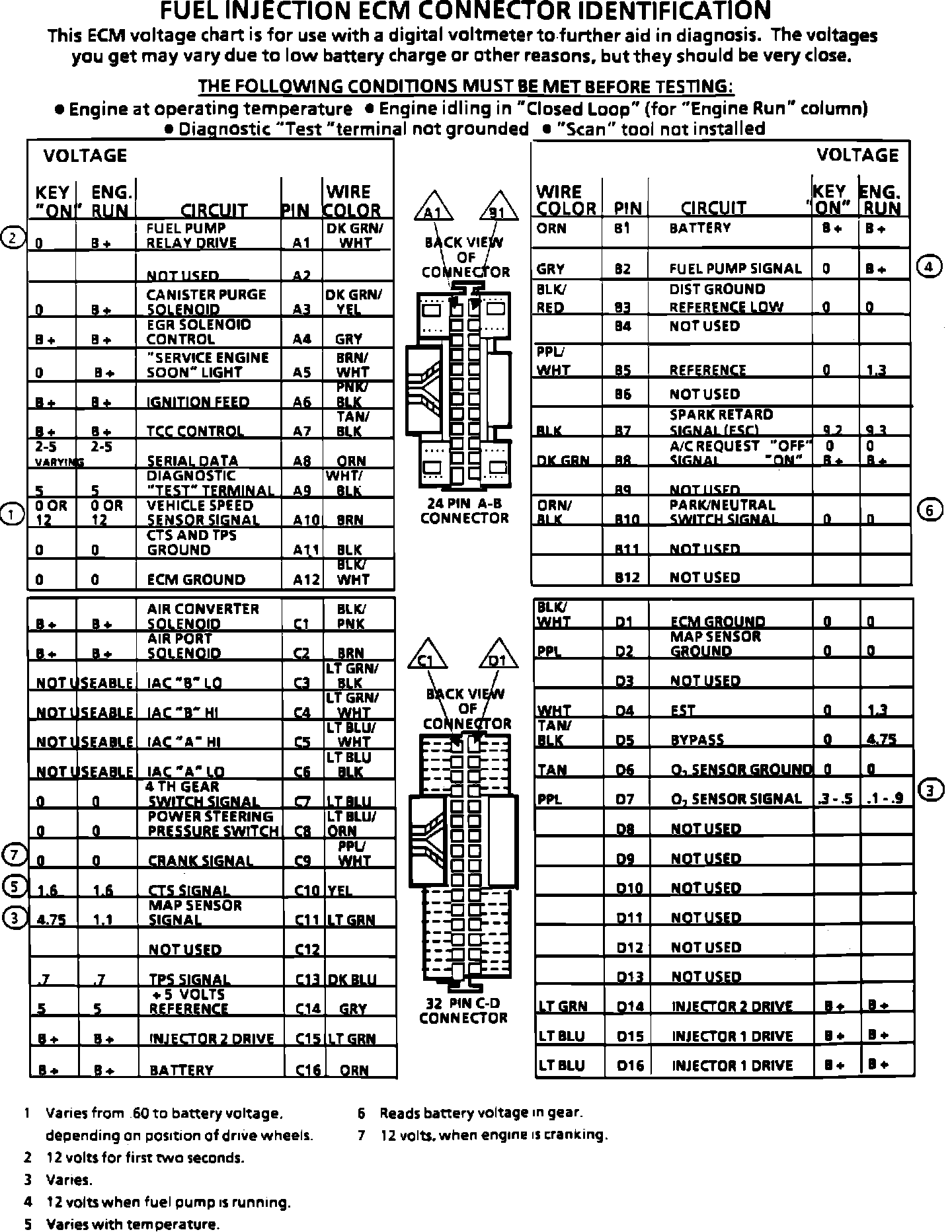

ECM Connector Terminal End View:
