System Specifications

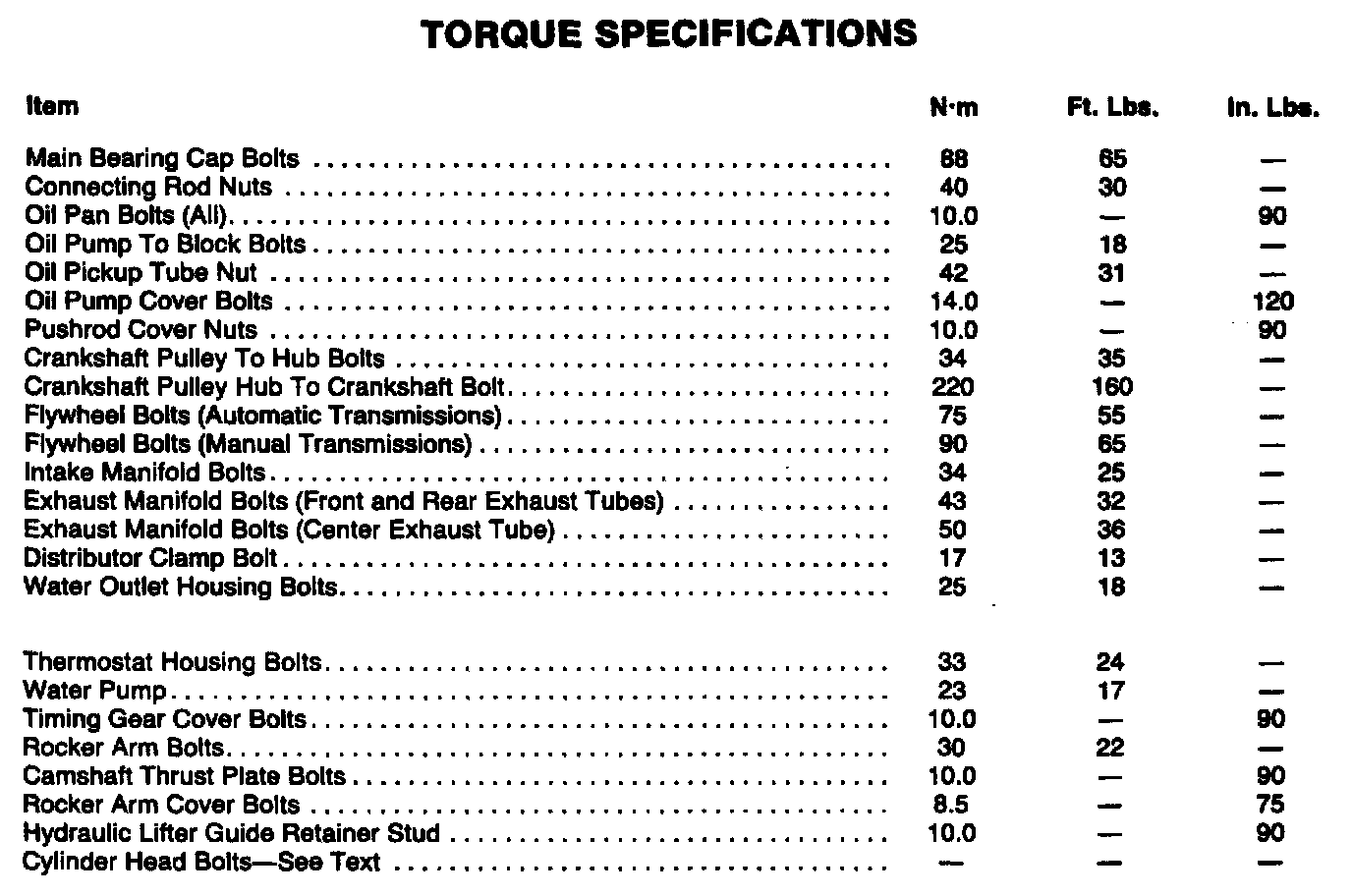

Torque Specifications:

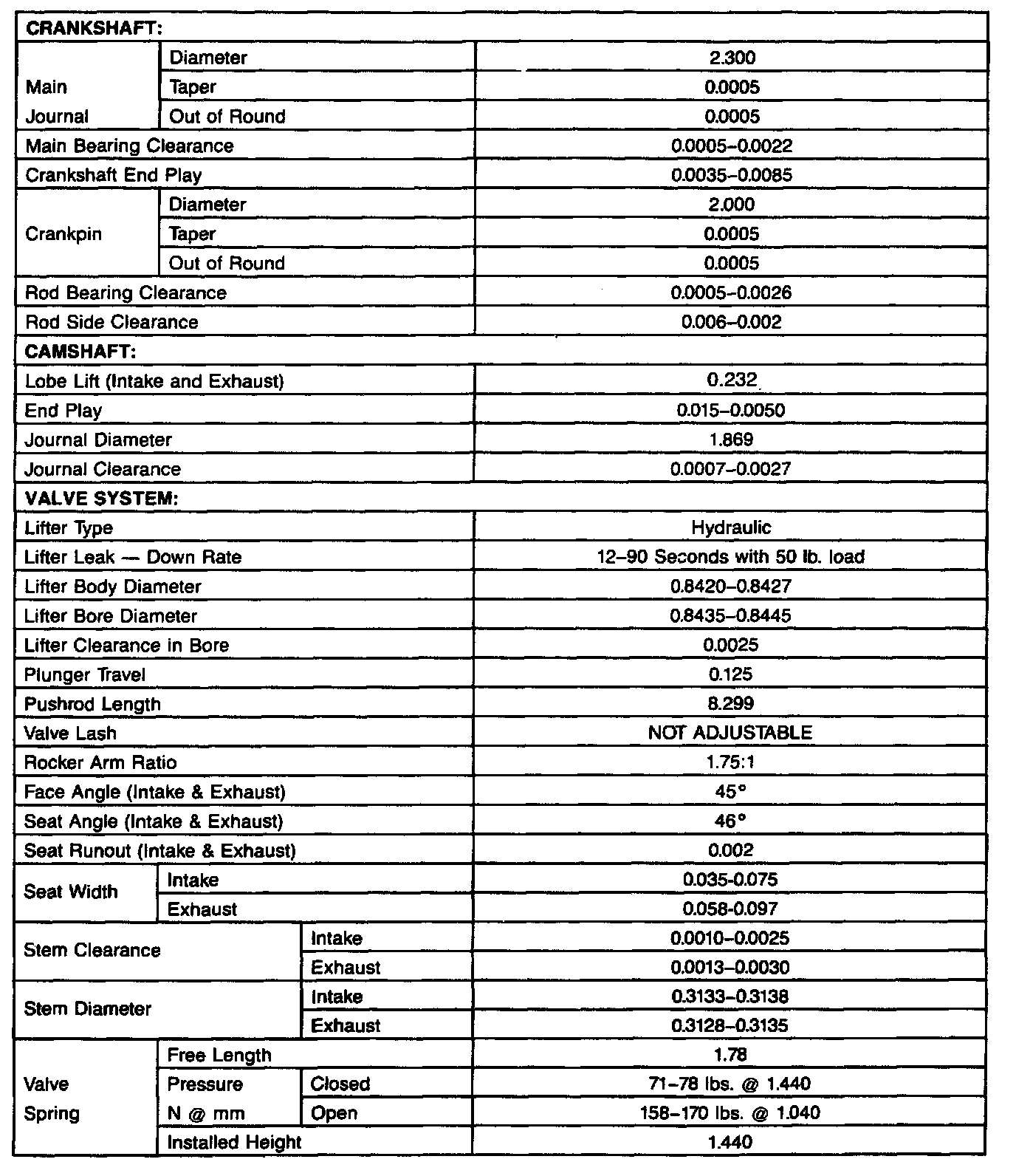

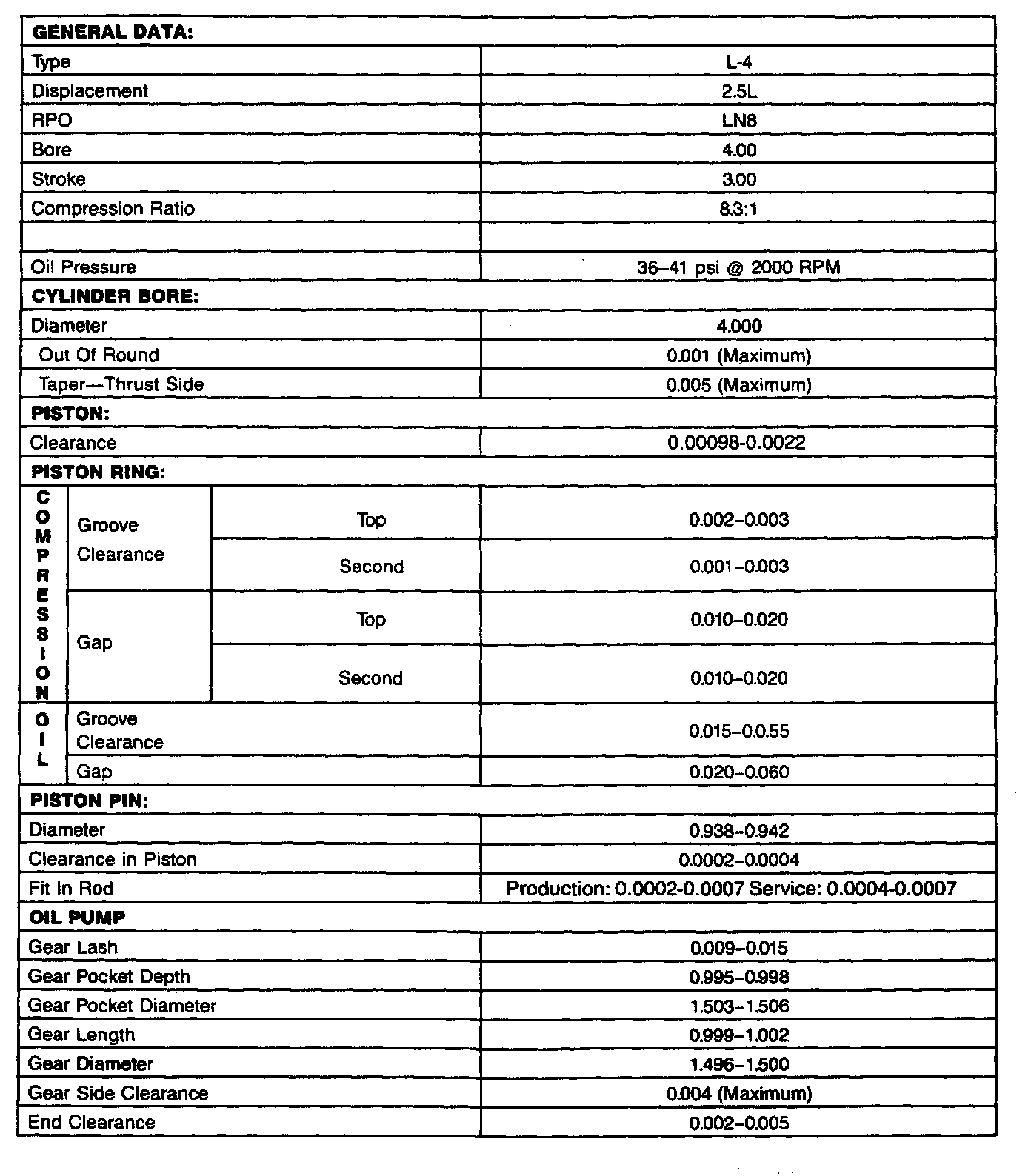

Engine Specifications:





Torque Specifications:

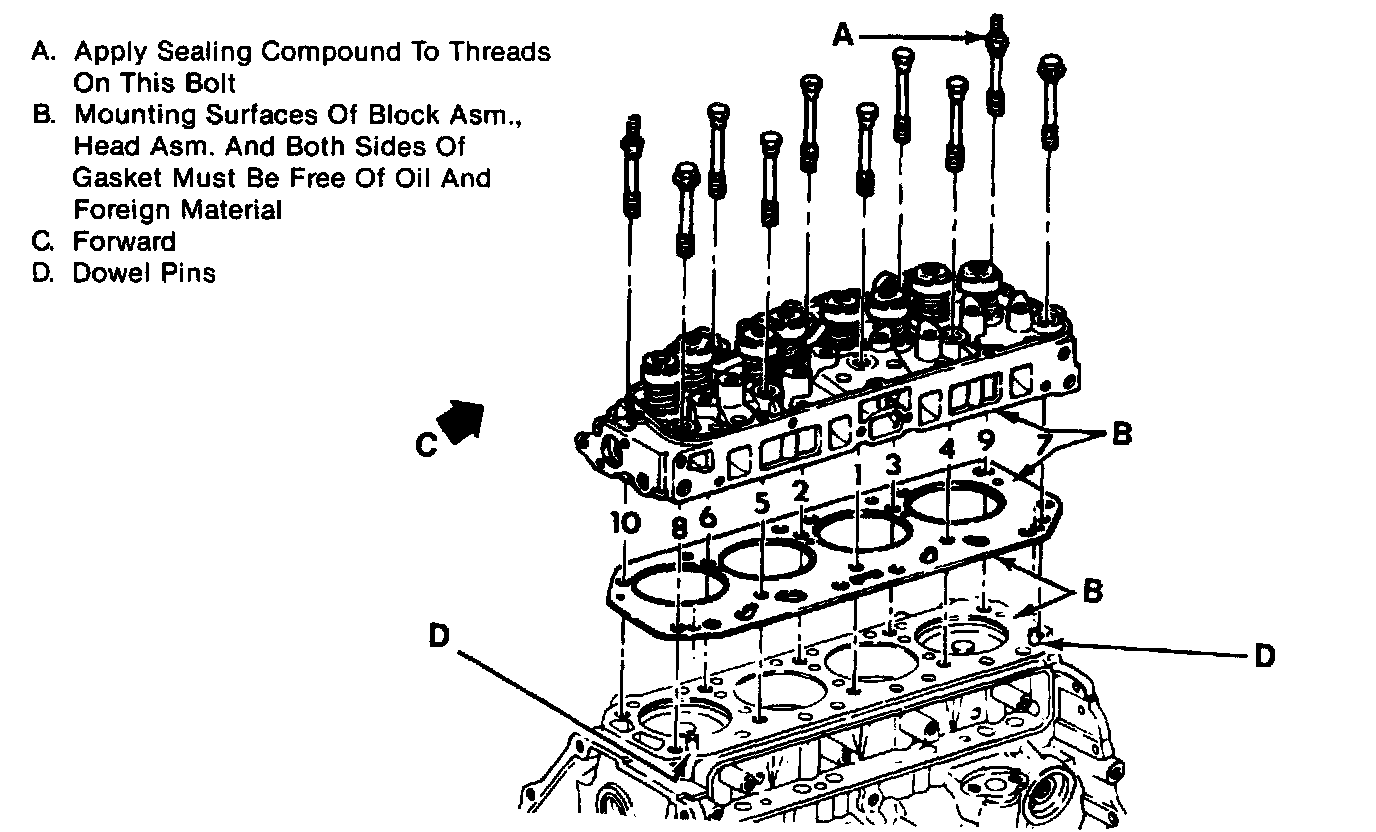

Cylinder Head Torque Sequence:
