System Specifications

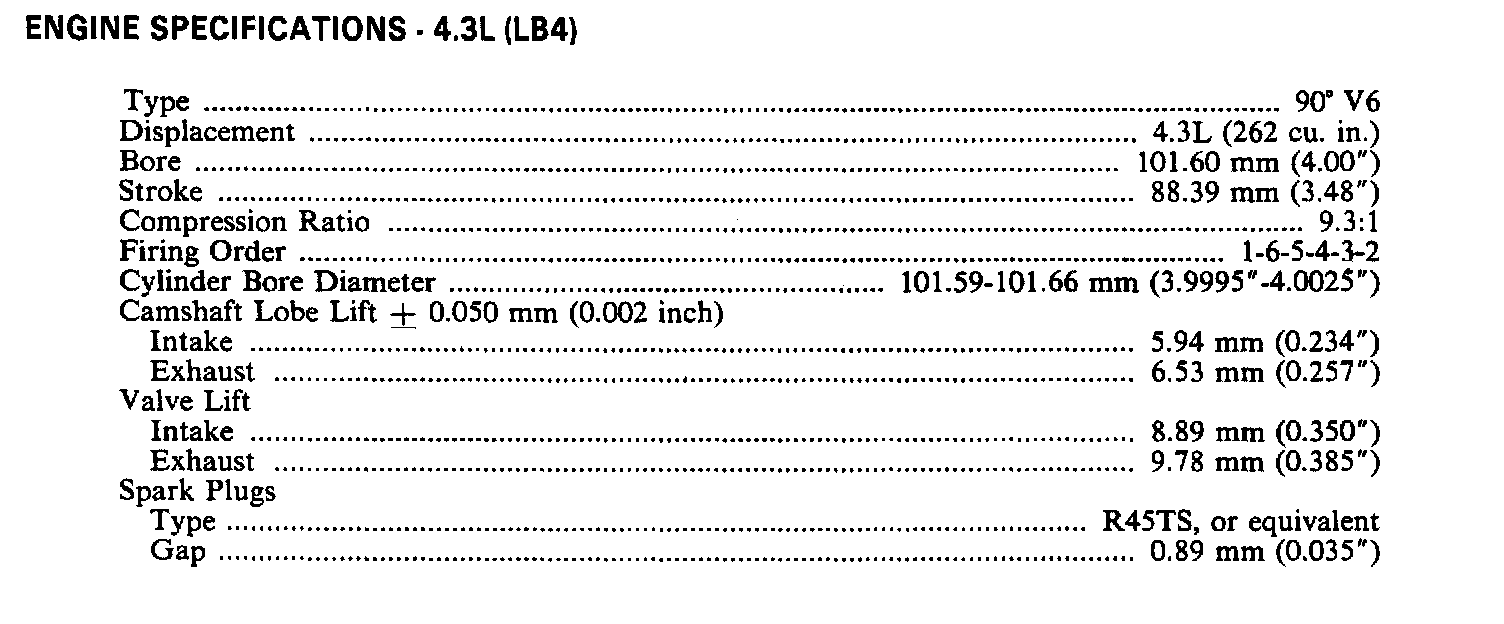

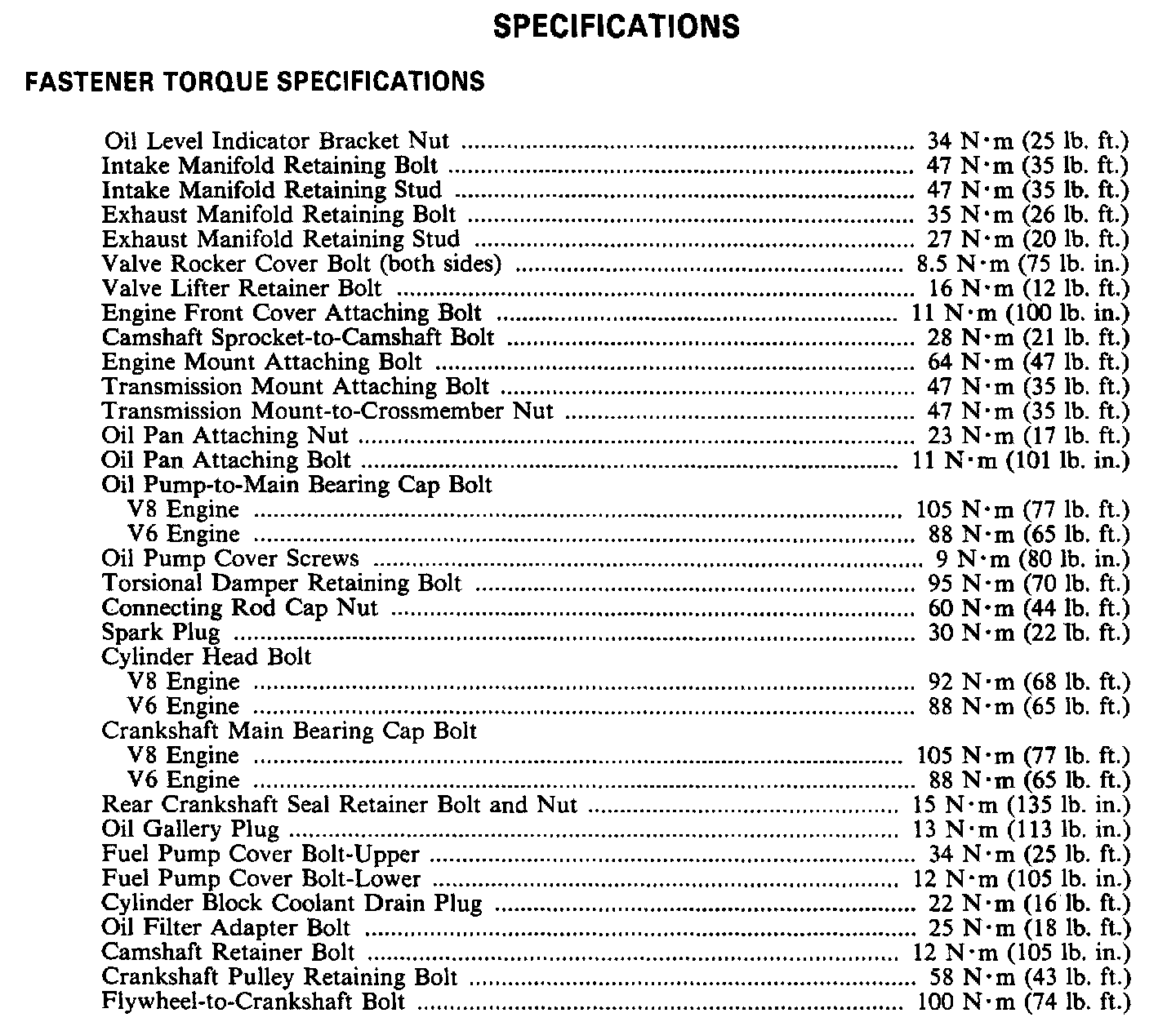

Engine Specifications 4.3L (LB4):

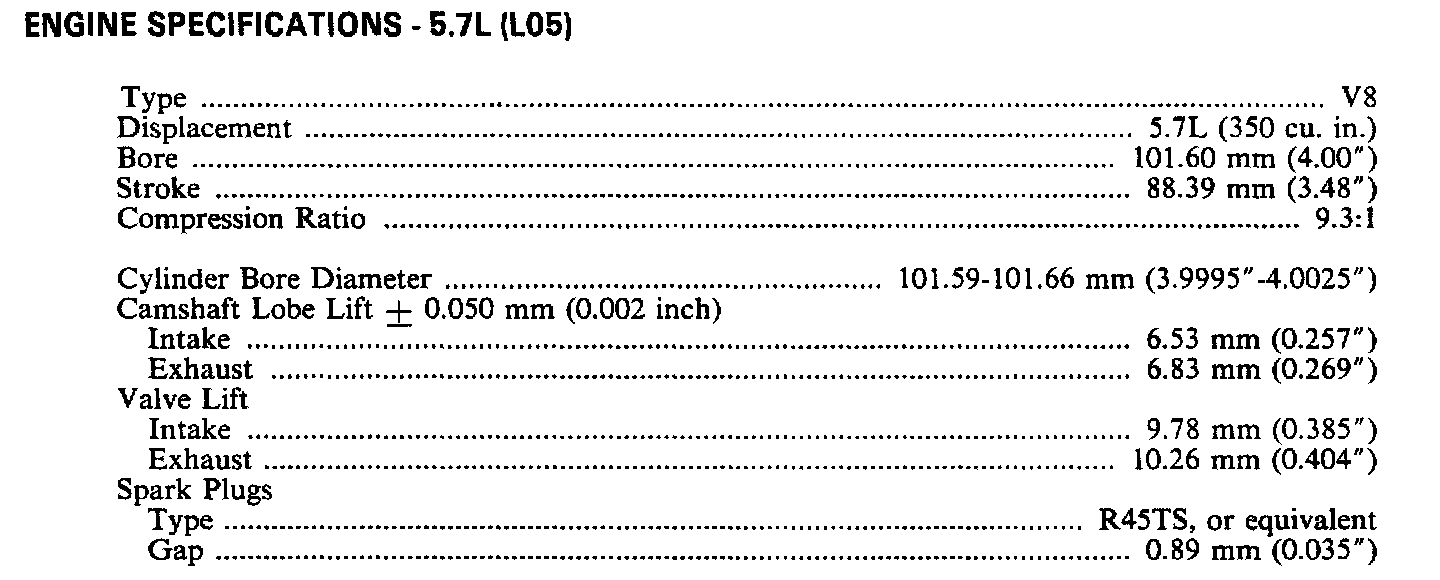

Engine Specifications 5.7L (L05):

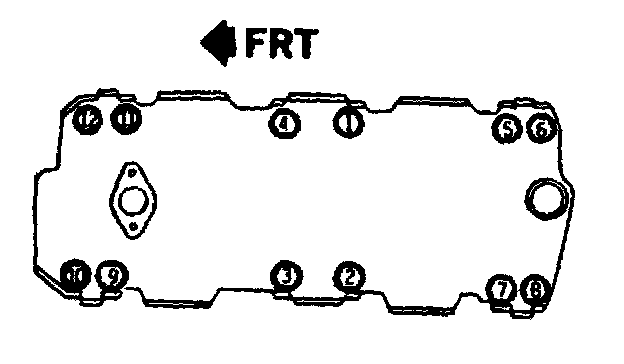

Intake Manifold Sequence (V-6):
