Home >> Chevrolet >> 1987 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

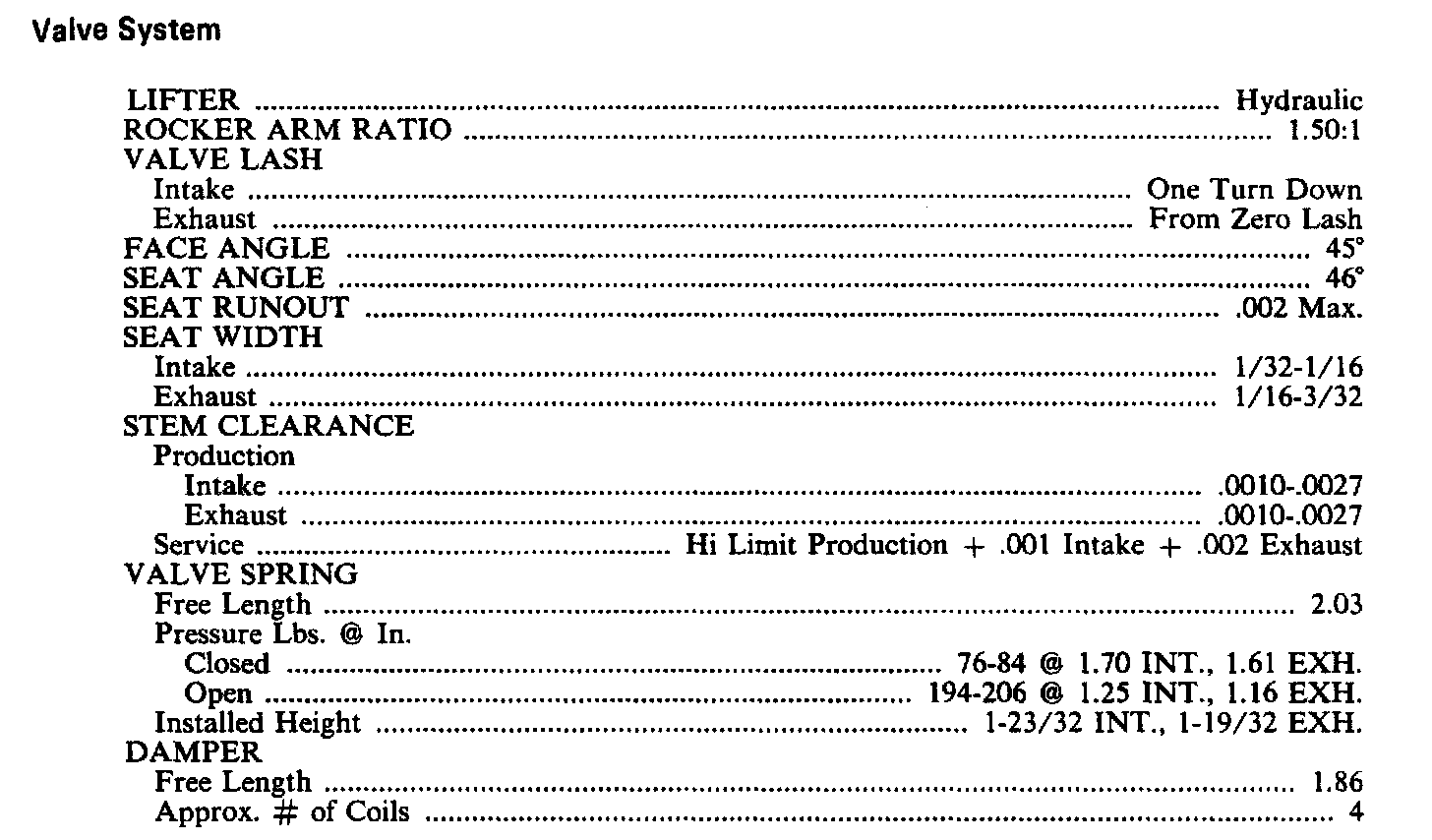

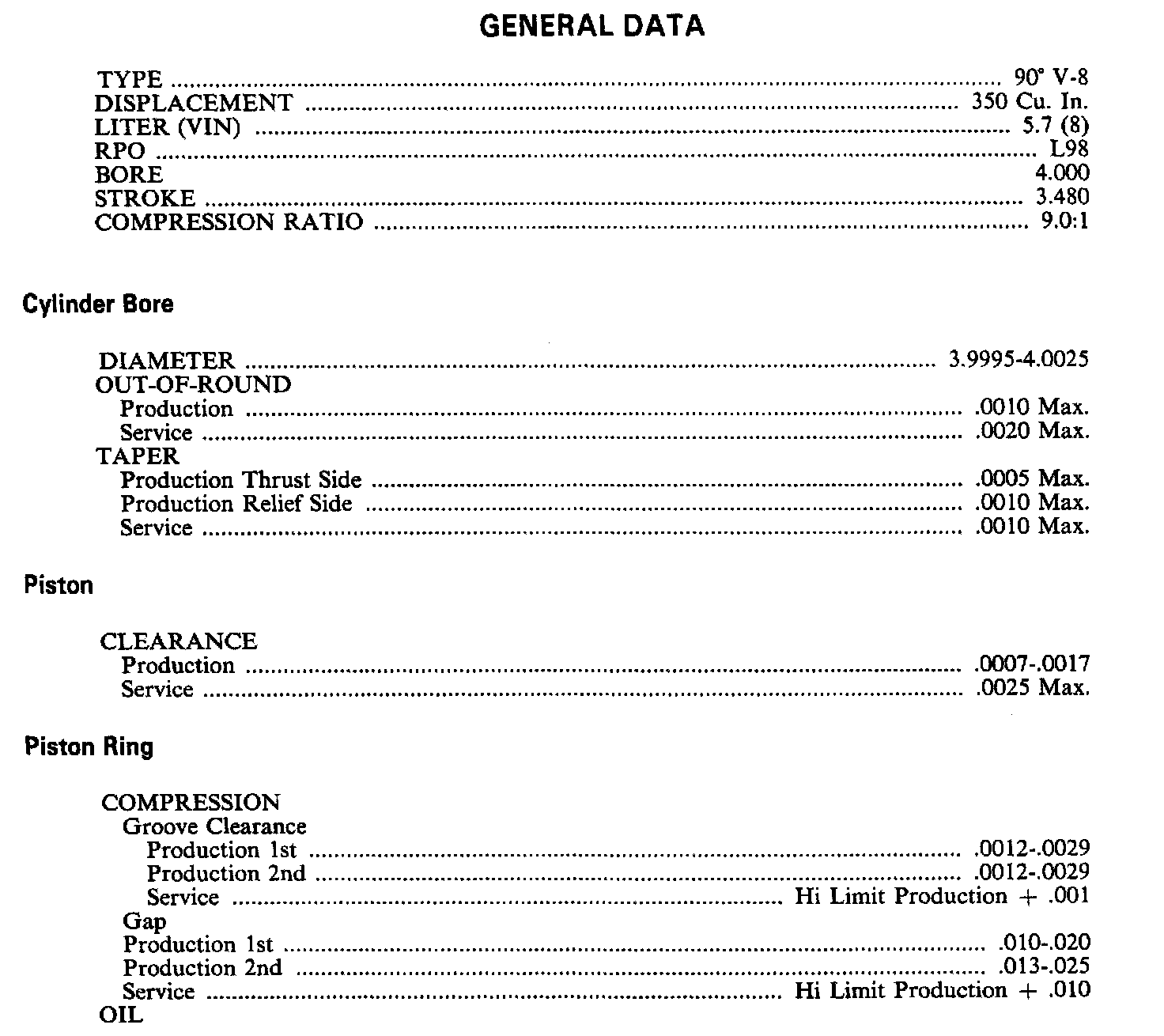

Engine Specifications:

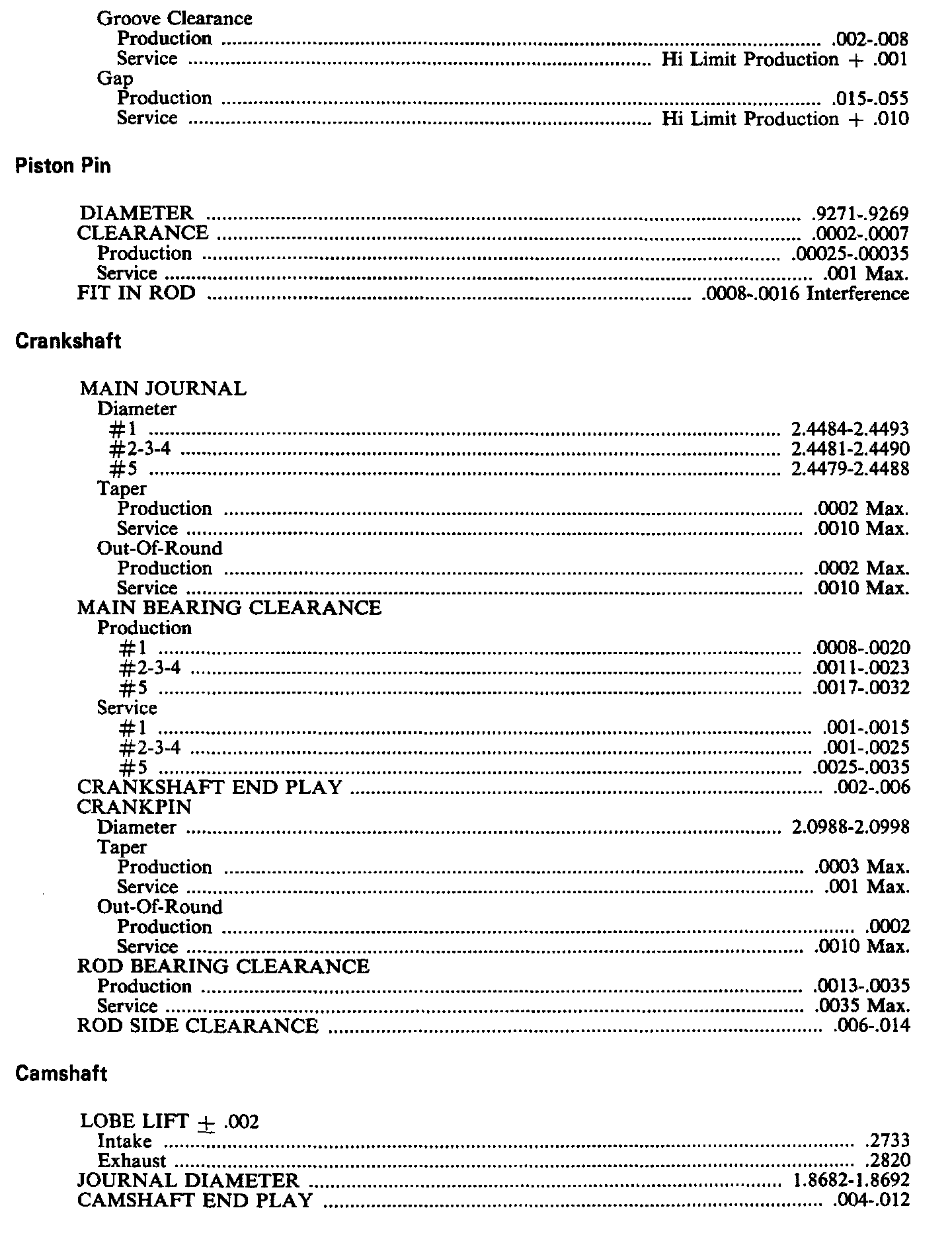

Continued Engine Specifications:




Continued Engine Specifications:

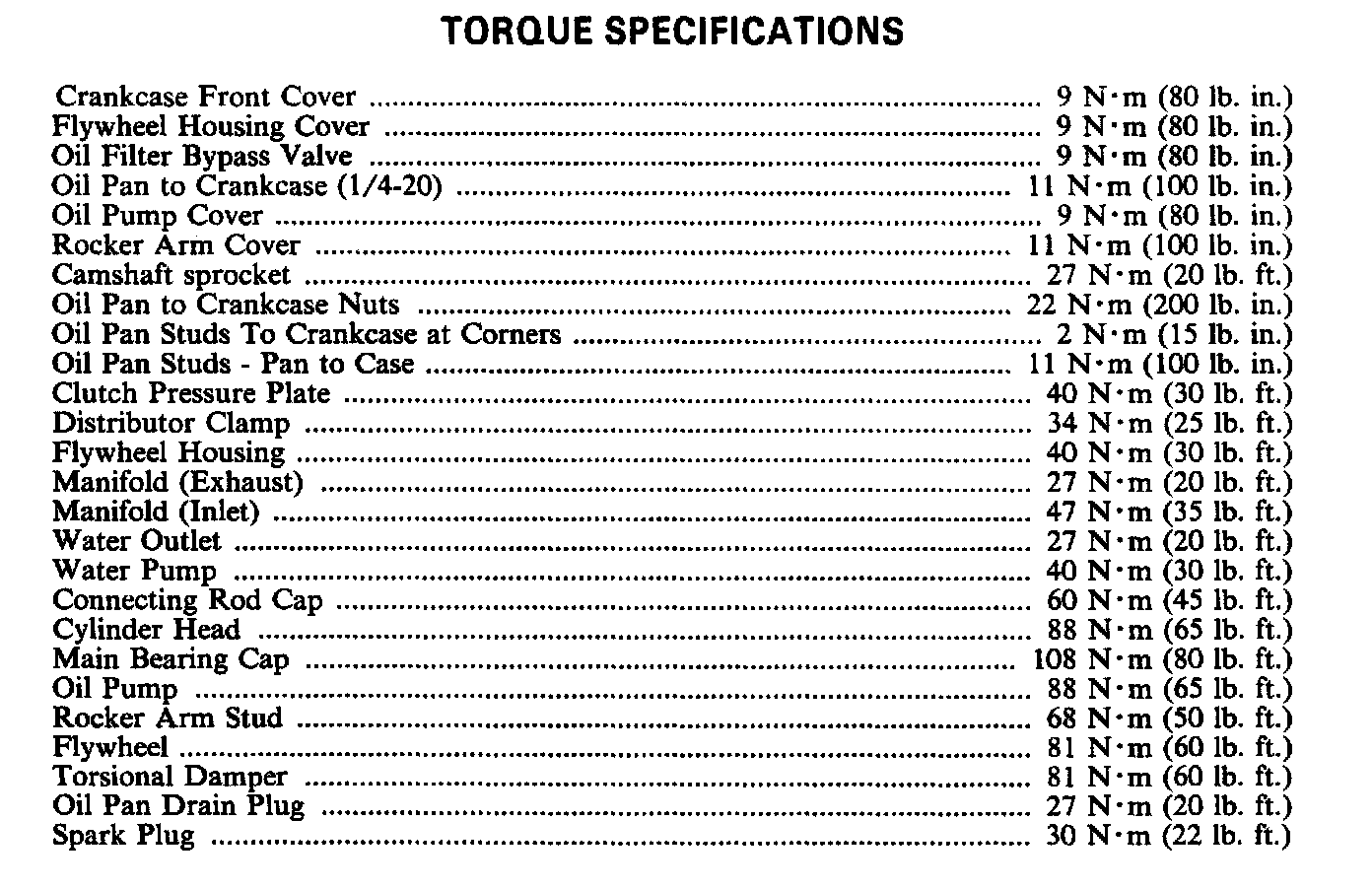

Torque Specifications:

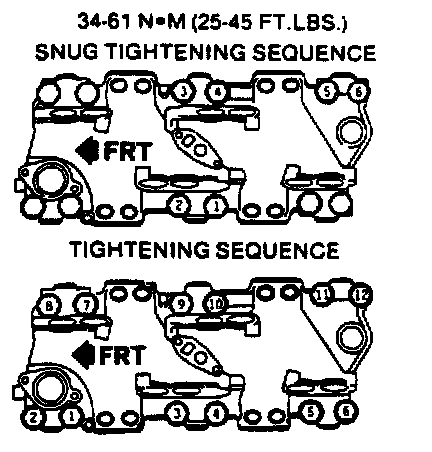

Intake Manifold Sequence:

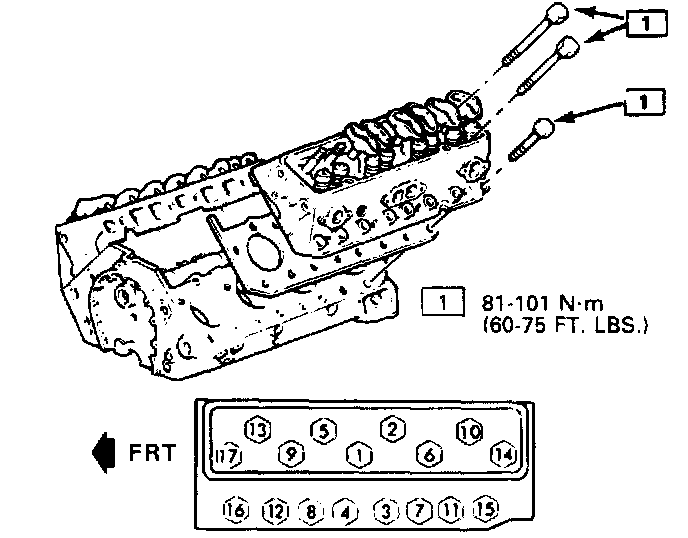

Cylinder Head Sequence:
