Chevrolet
>>
1987
>>
Chevette L4-98 1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>

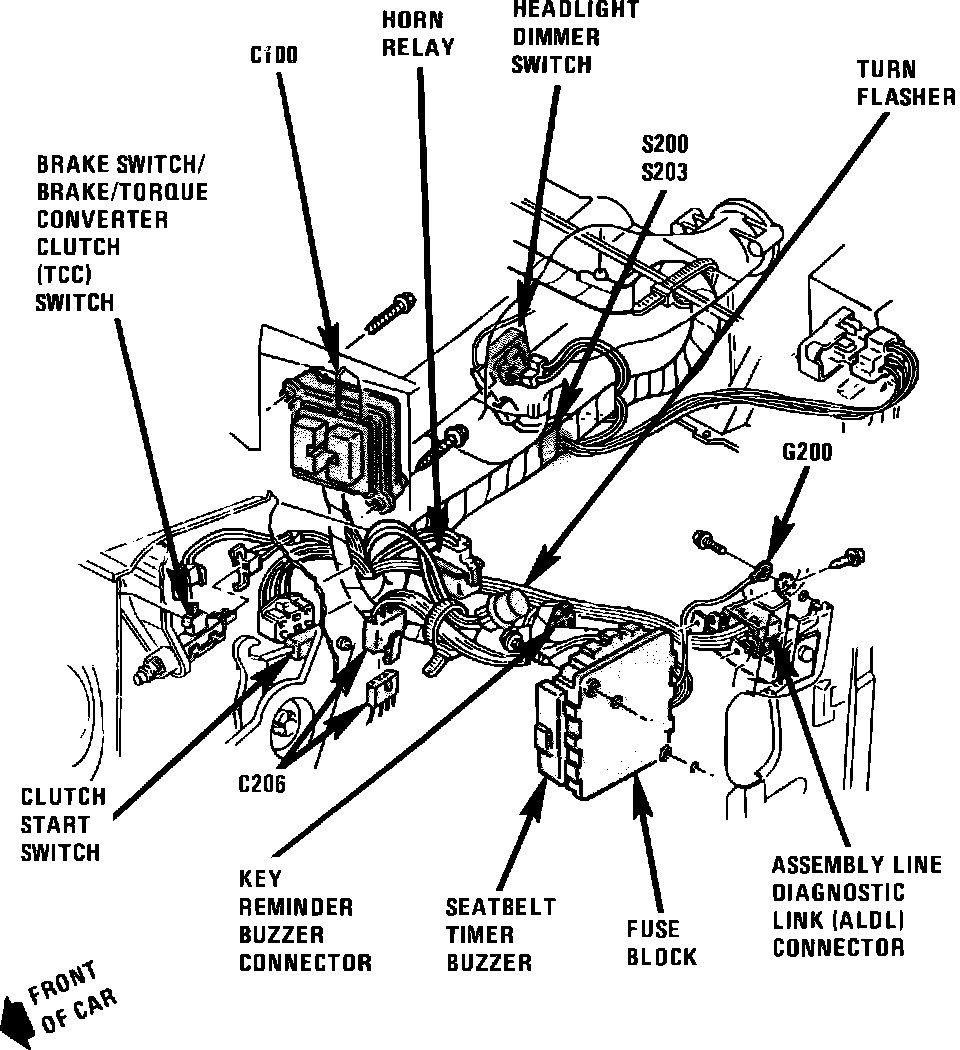

Fuse Panel
Fuse Panel
LH Side Of Engine.:
Below LH Side Of I/P
Applicable to: 1987 Chevette & 1000
