Coolant Temperature Sensor/Switch (For Computer): Locations

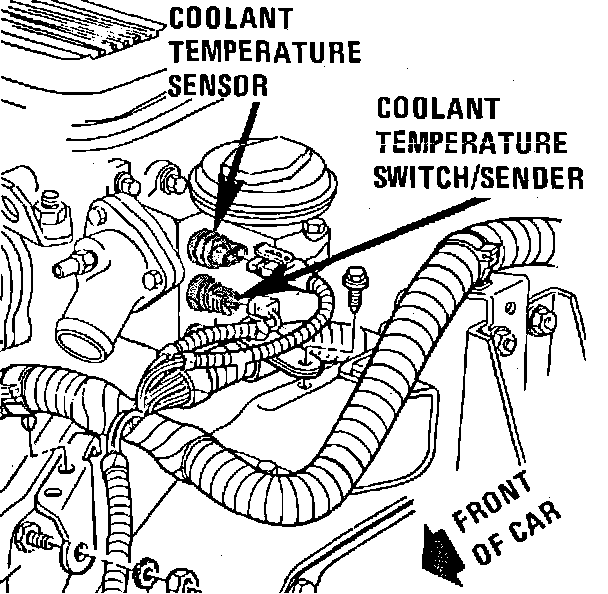

LH Side Of 4-121/2.0L:






The coolant temperature sensor is located at the L/H side of engine under the coolant outlet.
