Home >> Chevrolet >> 1987 >> Caprice V8-307 5.0L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> VIN Y (5.0L)

VIN Y (5.0L)

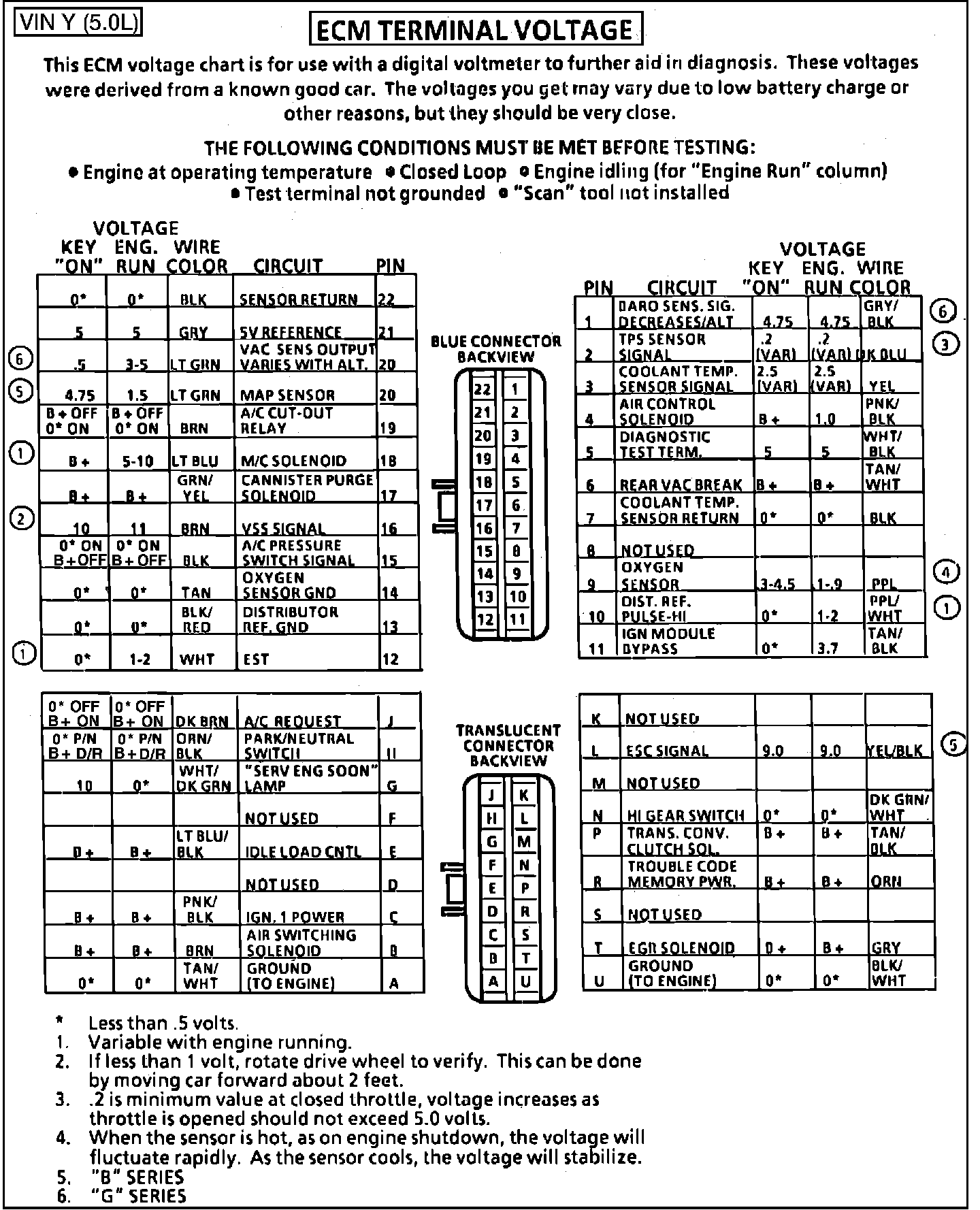

Fig. 051 - ECM Connector Terminal Identification & Voltage Specifications.:
