Home >> Chevrolet >> 1987 >> Astro Van M L4-151 2.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

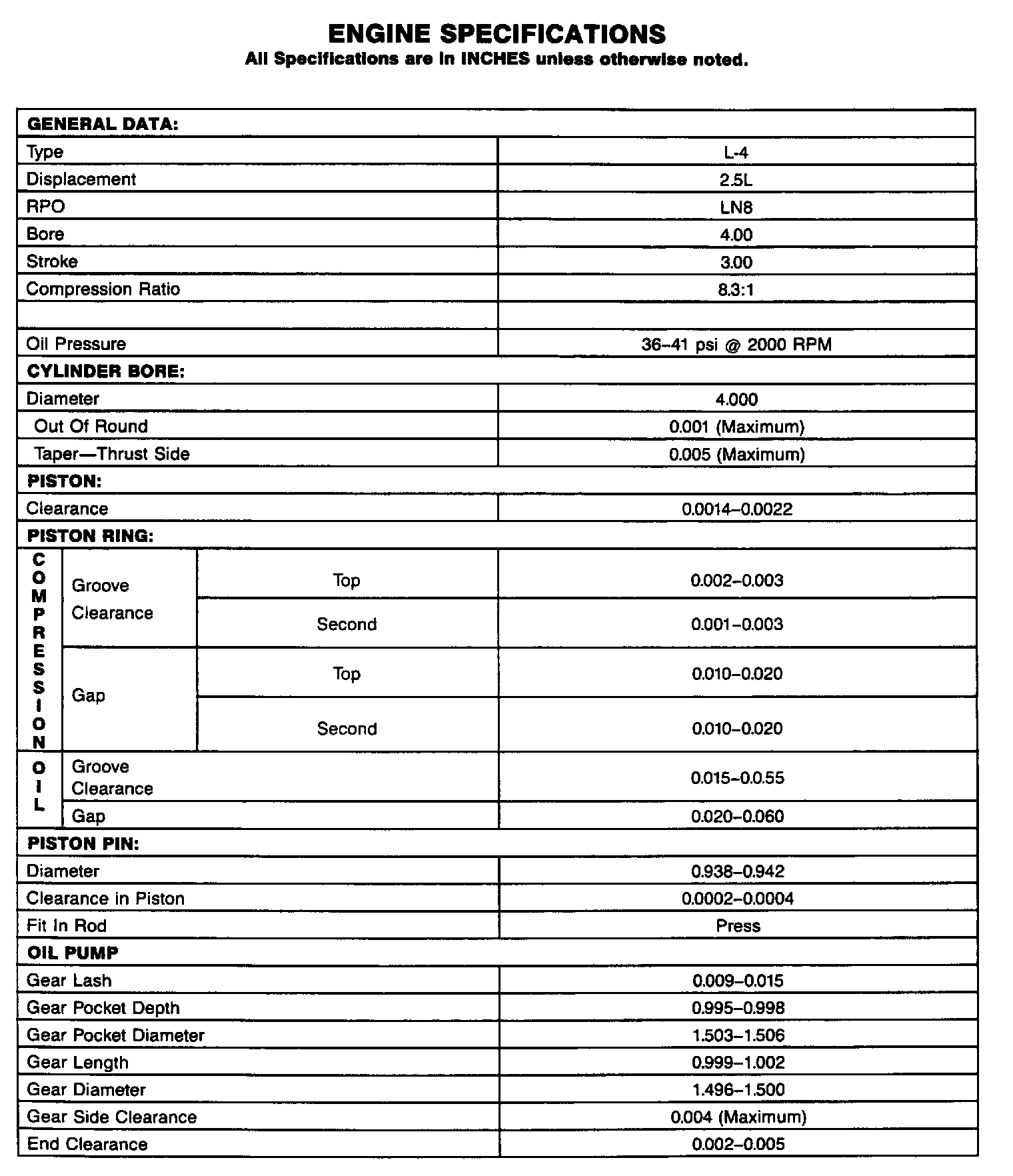

Engine Specifications:

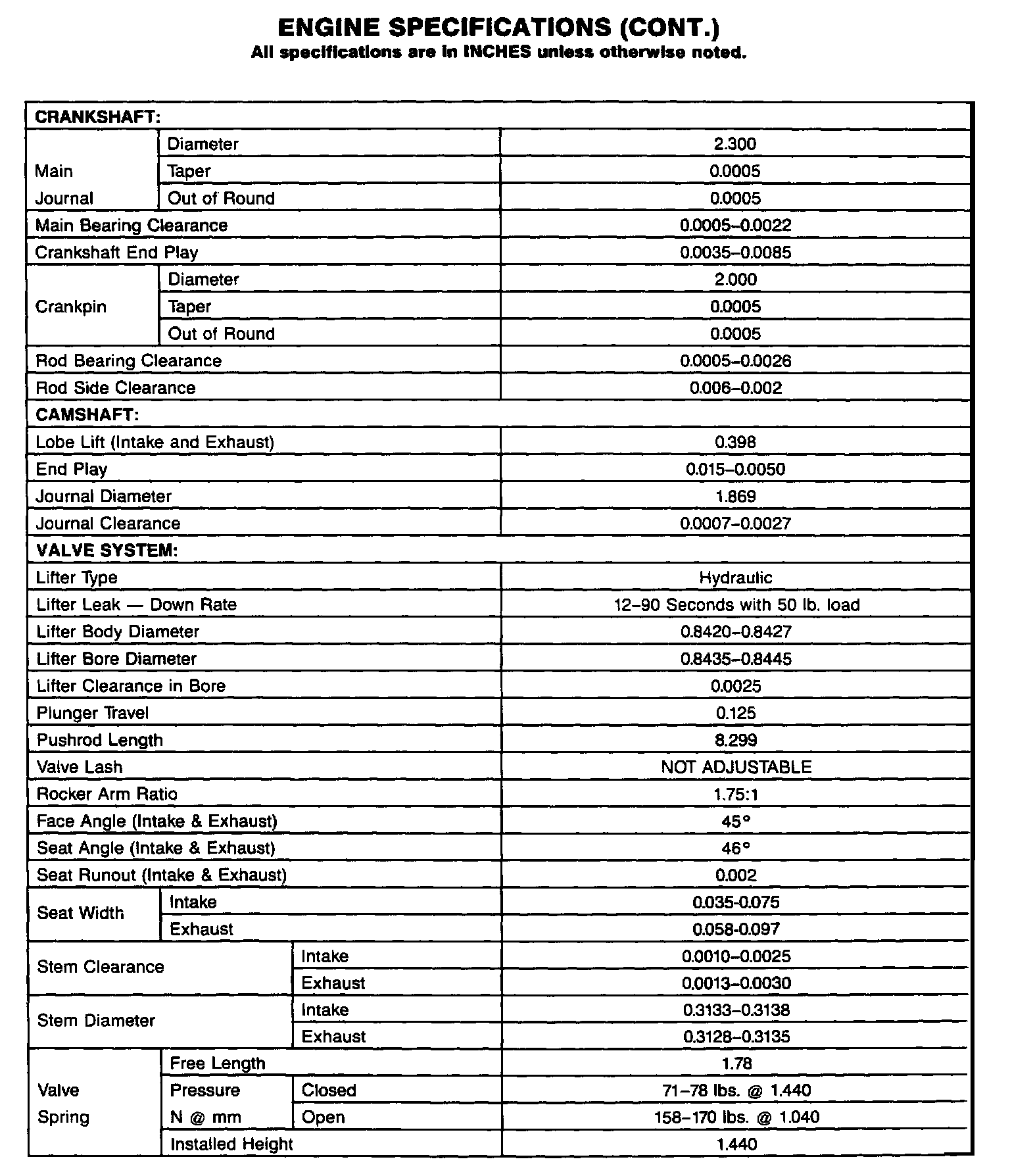

Continued Engine Specifications:

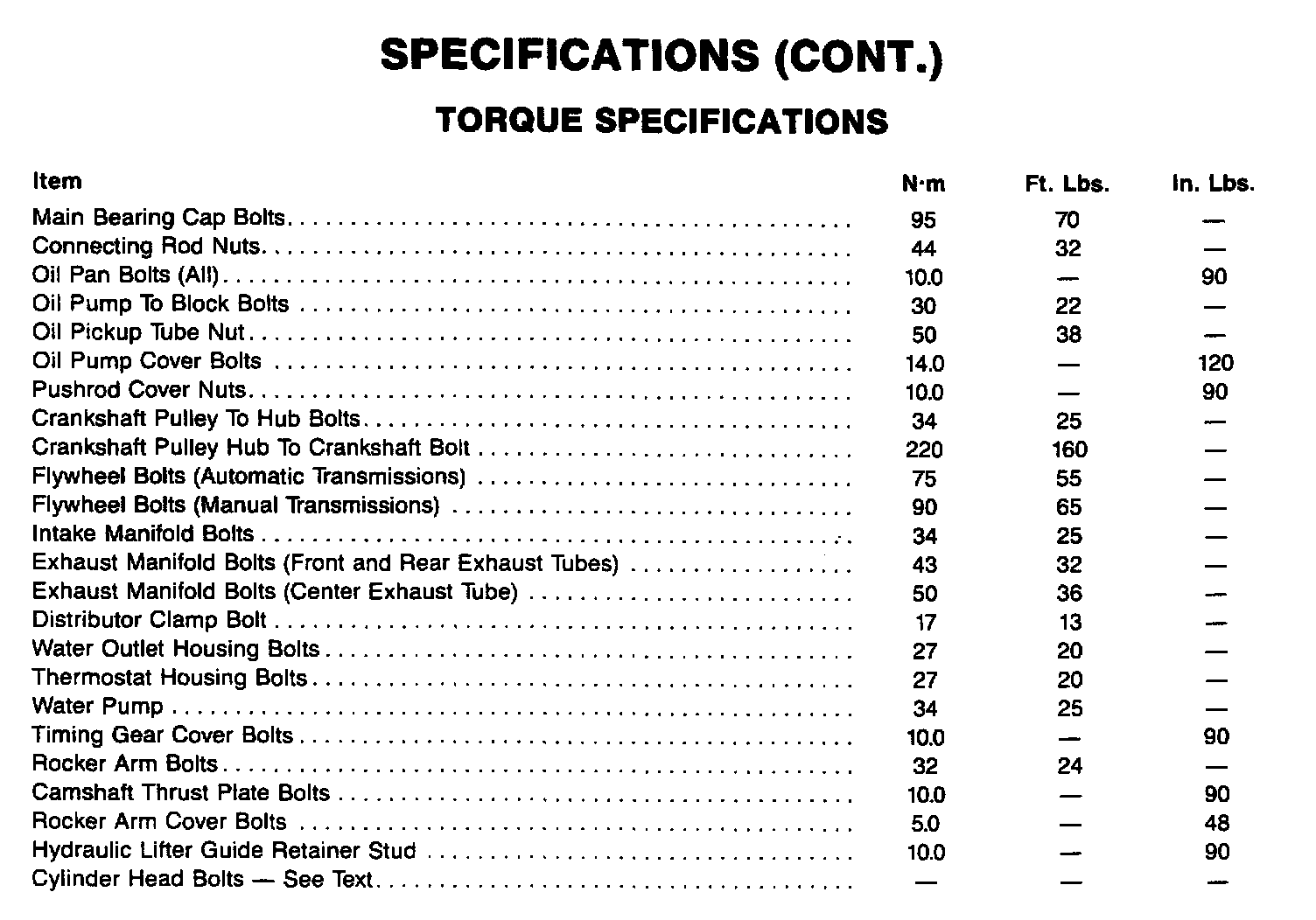

Torque Specifications:

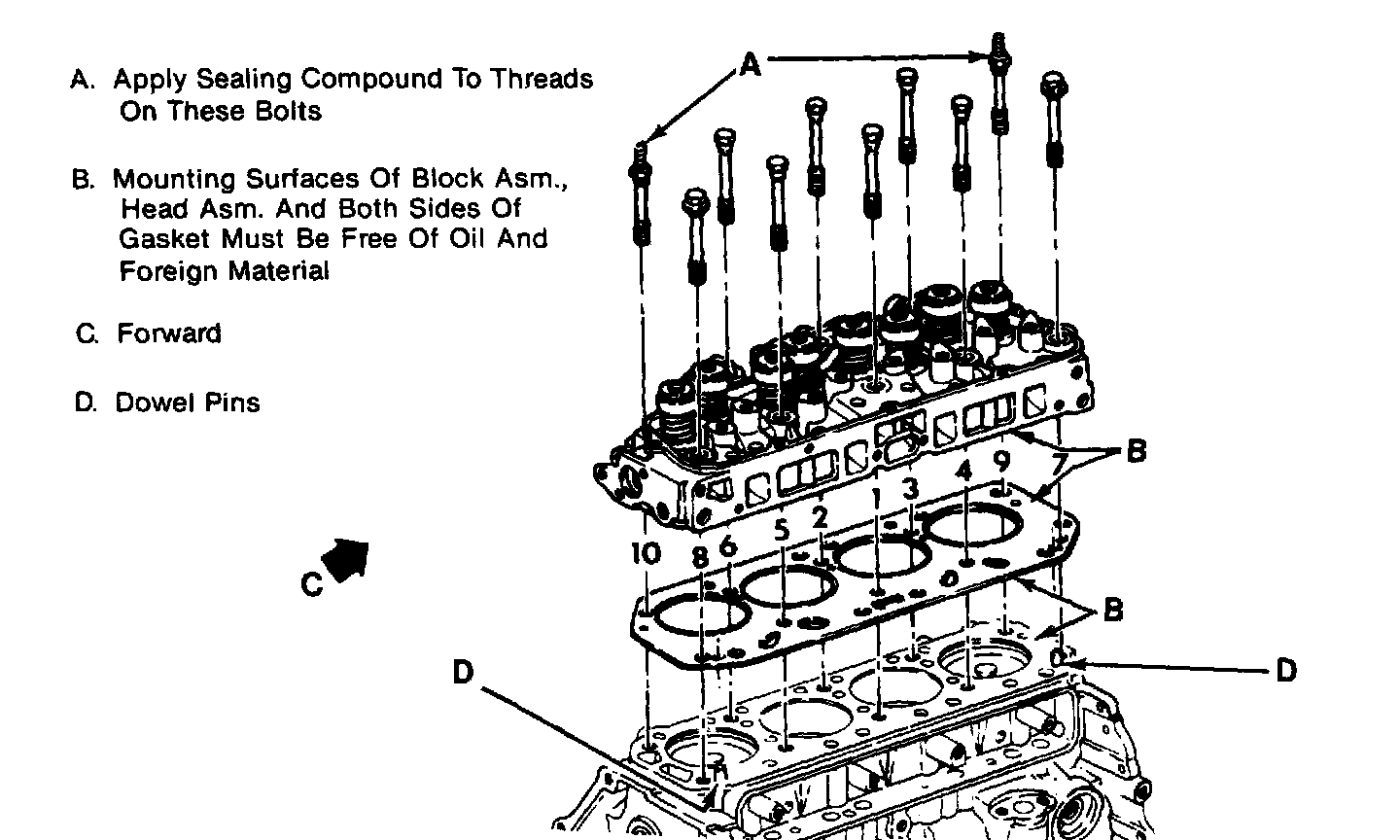

Cylinder Head Sequence:
