Home >> Chevrolet >> 1986 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

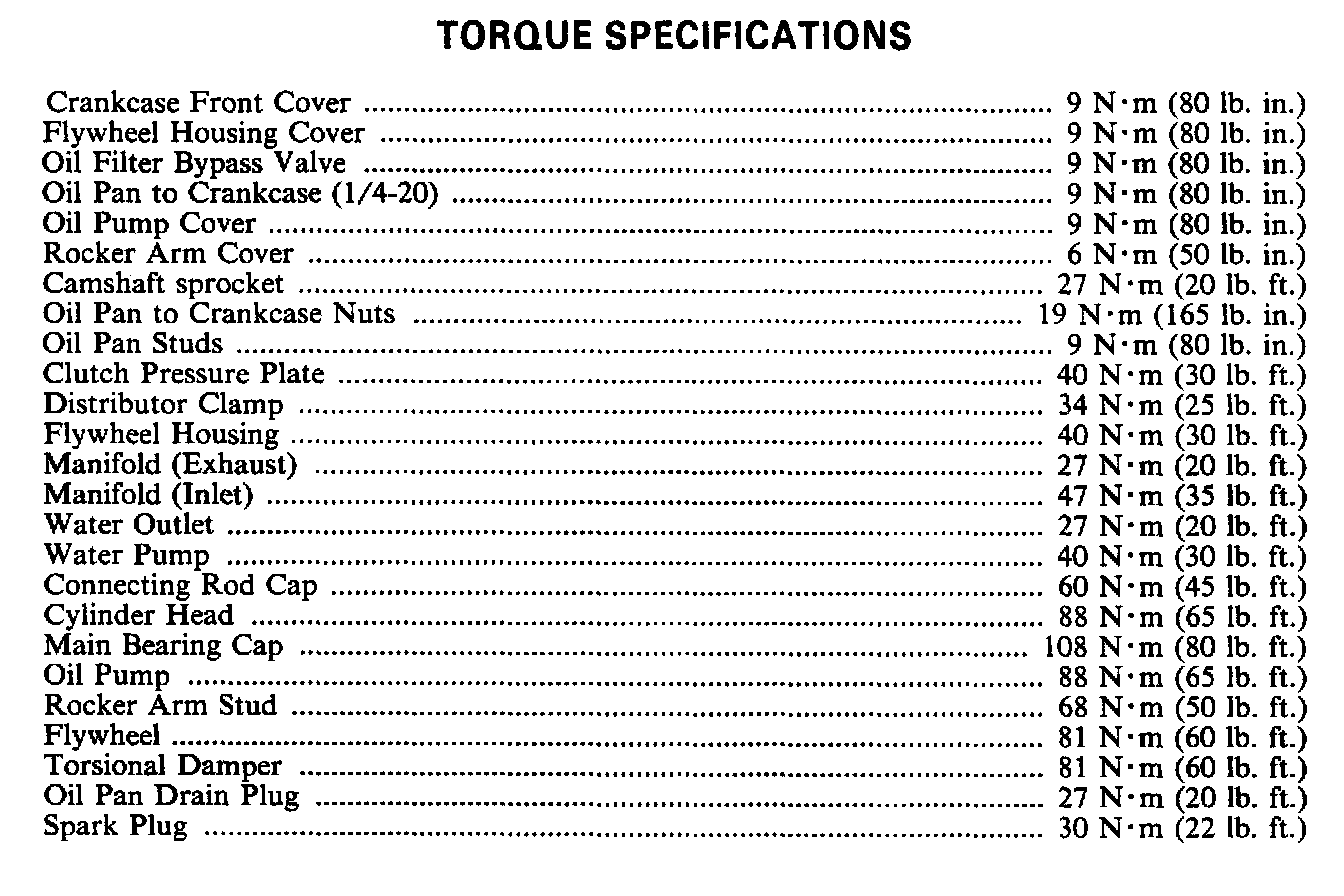

Torque Specifications:

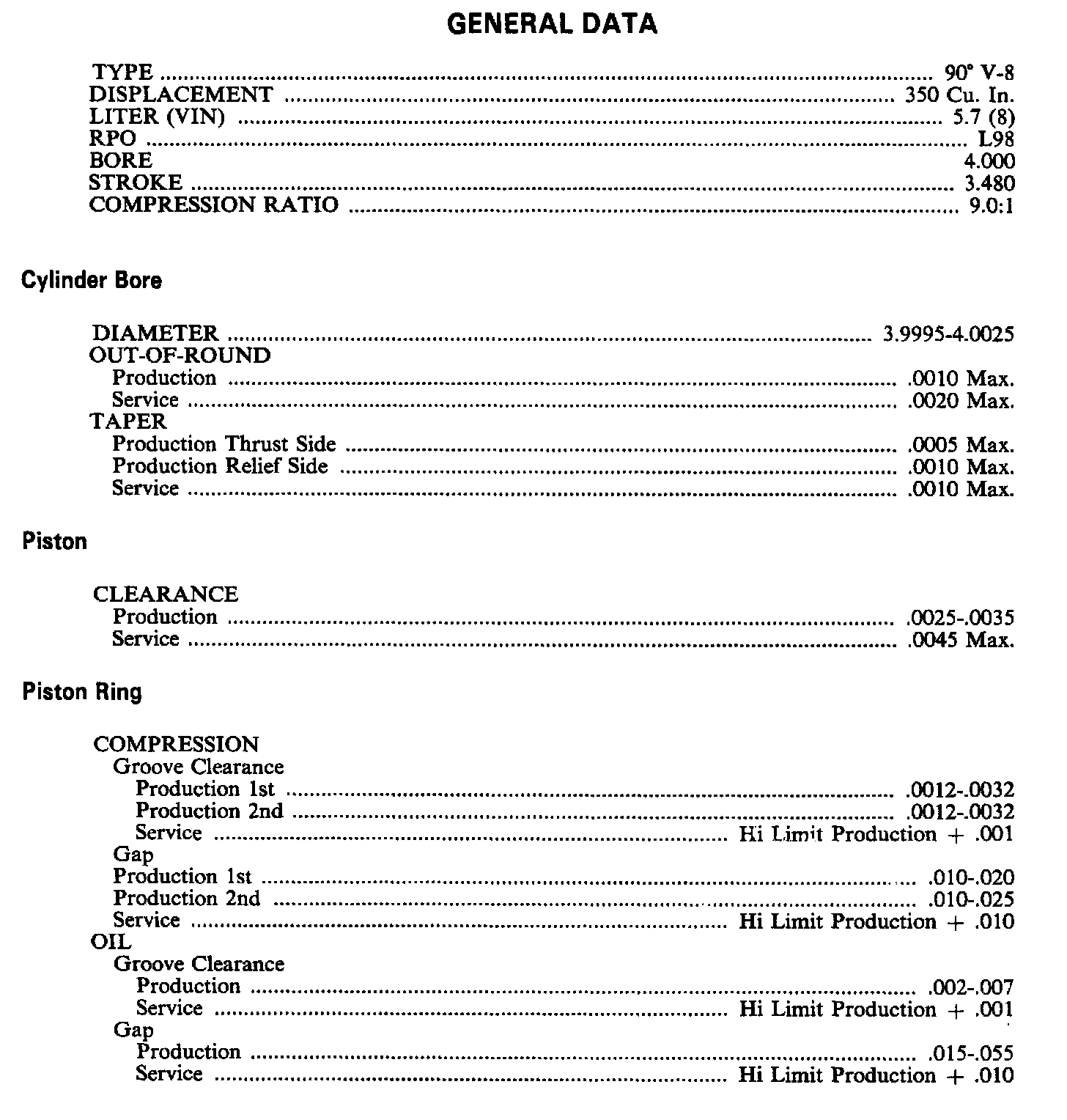

Engine Specifications:

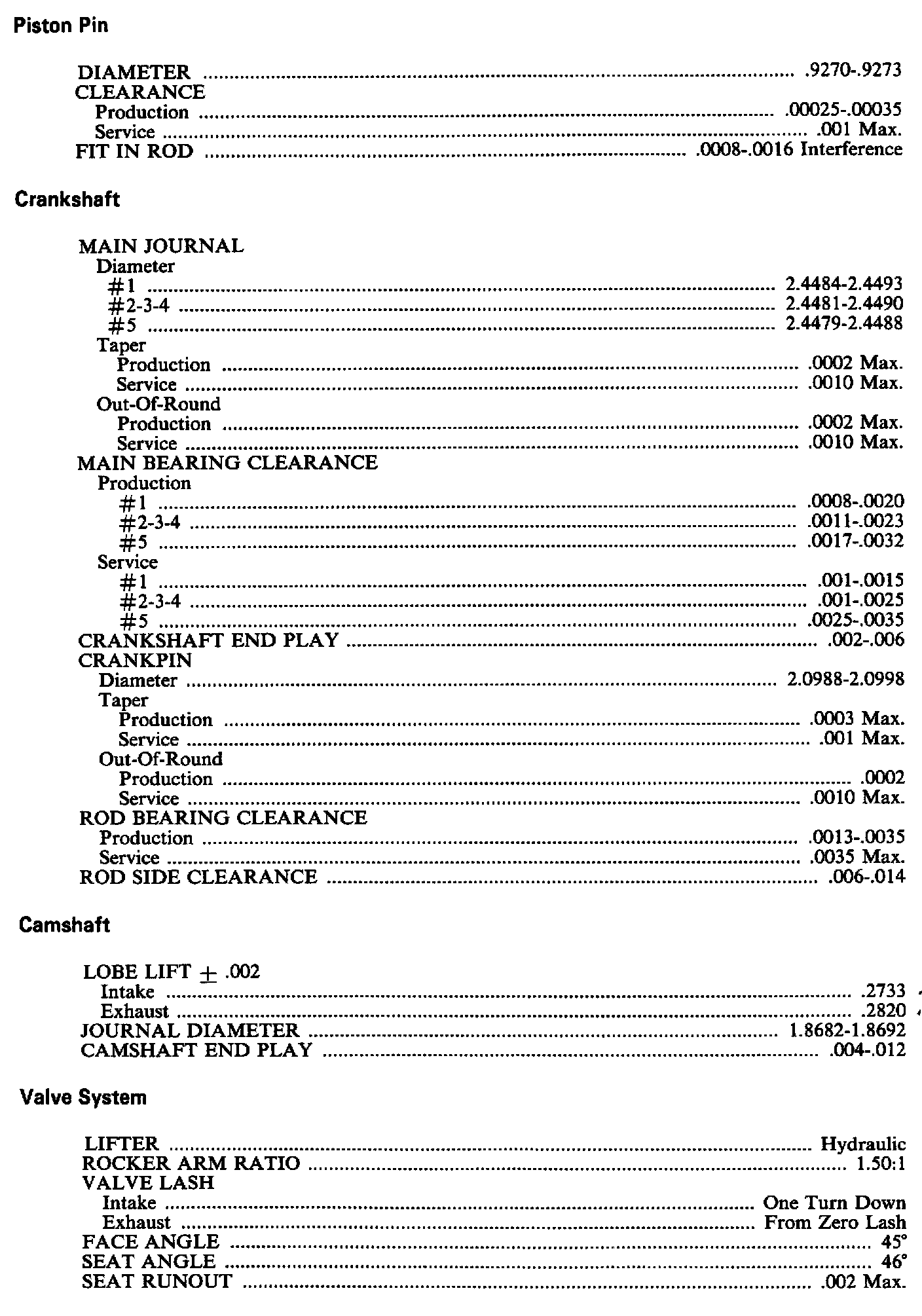

Engine Specifications:




Engine Specifications:

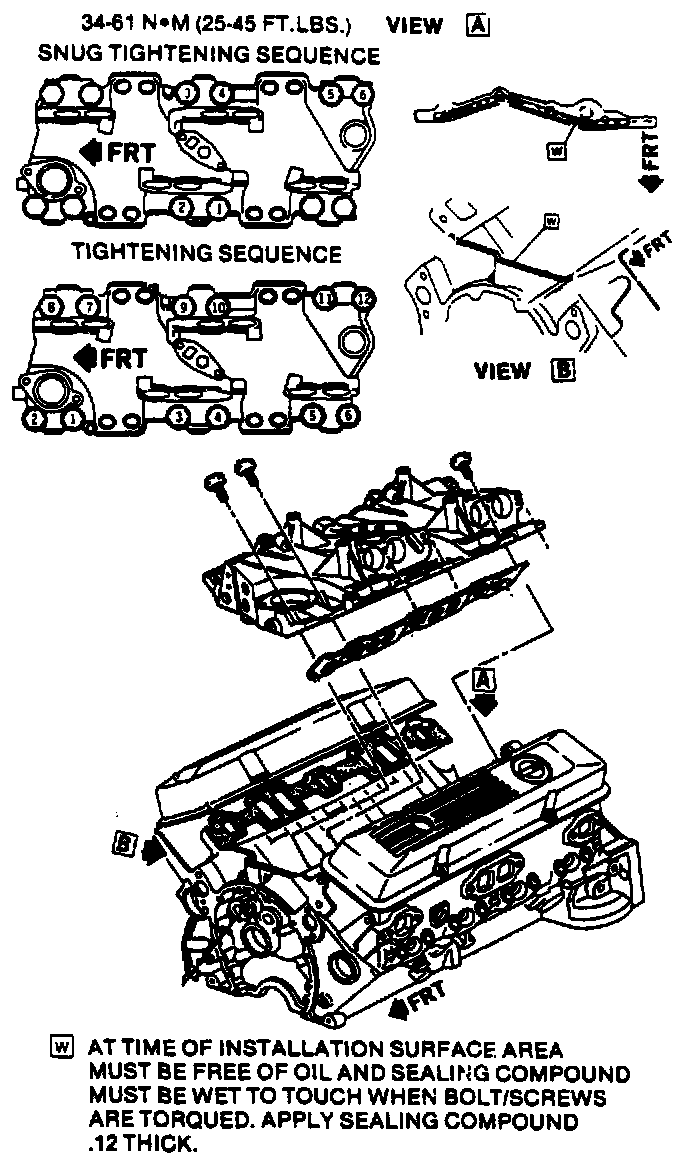

Intake Manifold Torque Sequence:





Cylinder Head Torque Sequence:
