lemon-mirror
:
Home
>>
Chevrolet
>>
1986
>>
Chevette L4-98 1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>

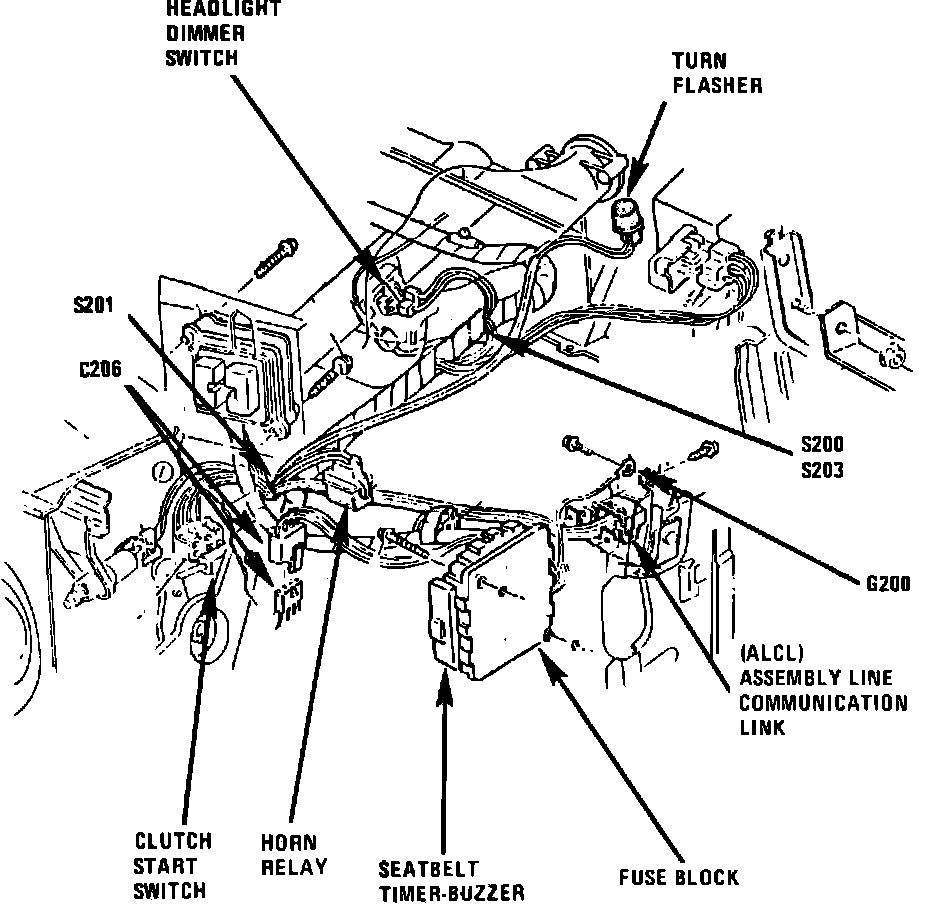

Fuse Panel
Fuse Panel
Behind LH Side Of I/P.:
Below LH Side Of I/P
Applicable to: 1986 Chevette & 1000
