Computer Command Control - Throttle Body Fuel Injection

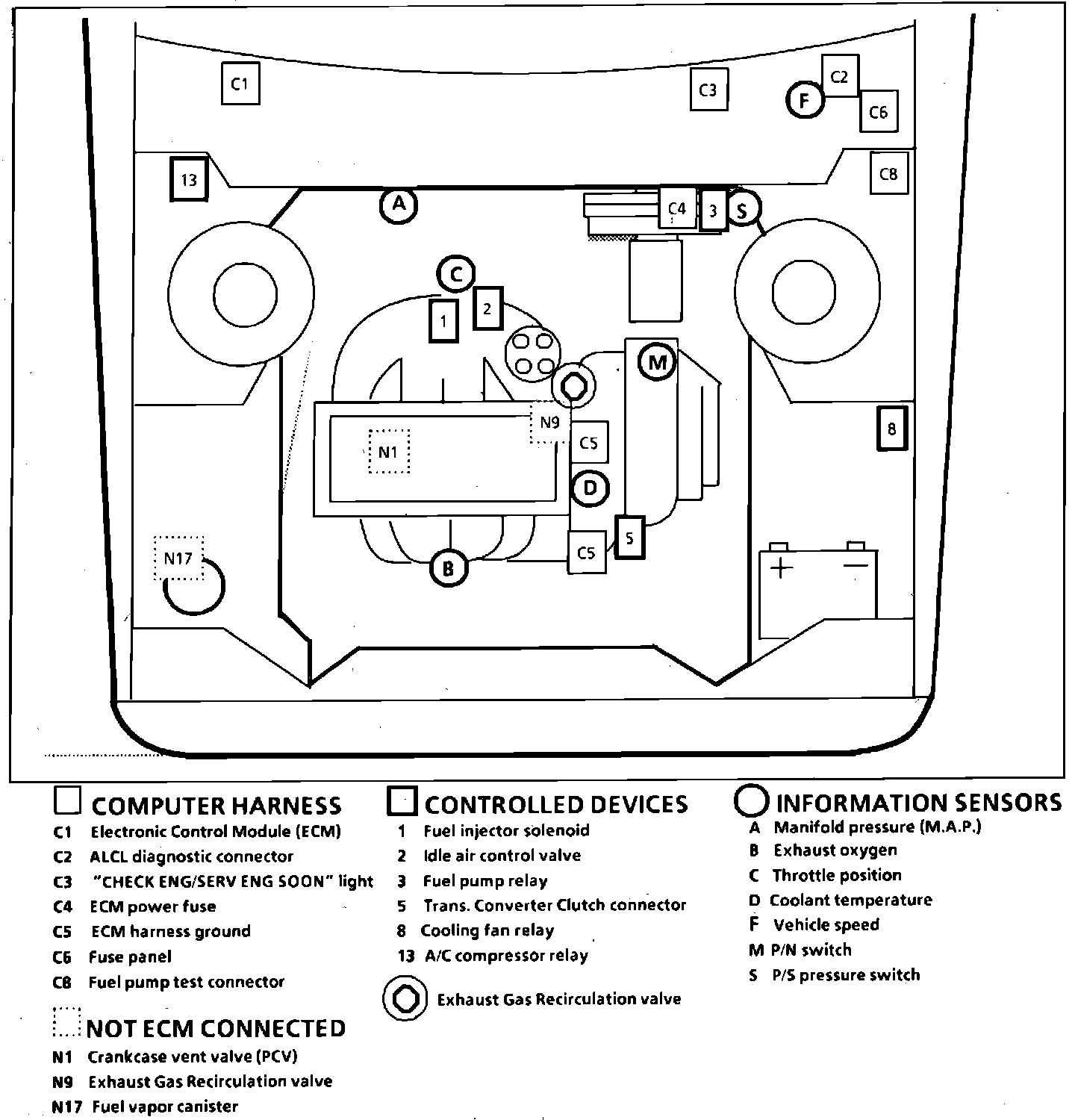

Fig. 37 Emission Component Location. 1985-86 Cavalier W/4-121/2.0L, TBI:
