System Specifications

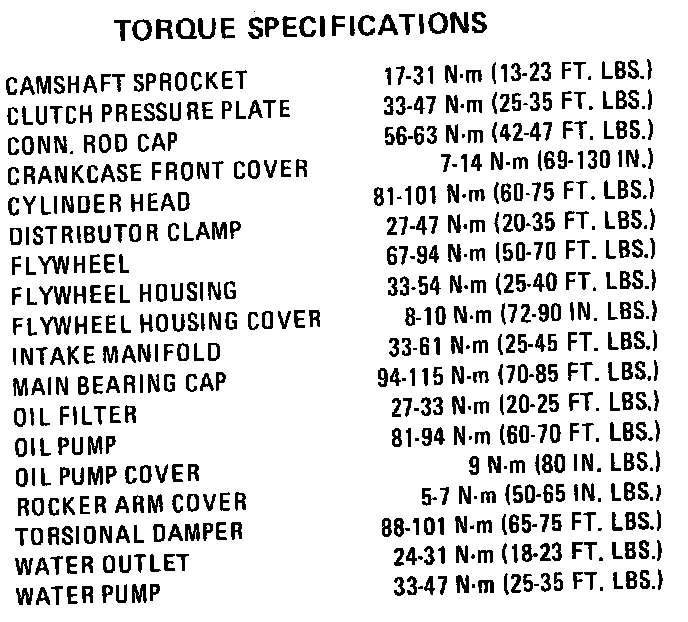

Torque Specifications:

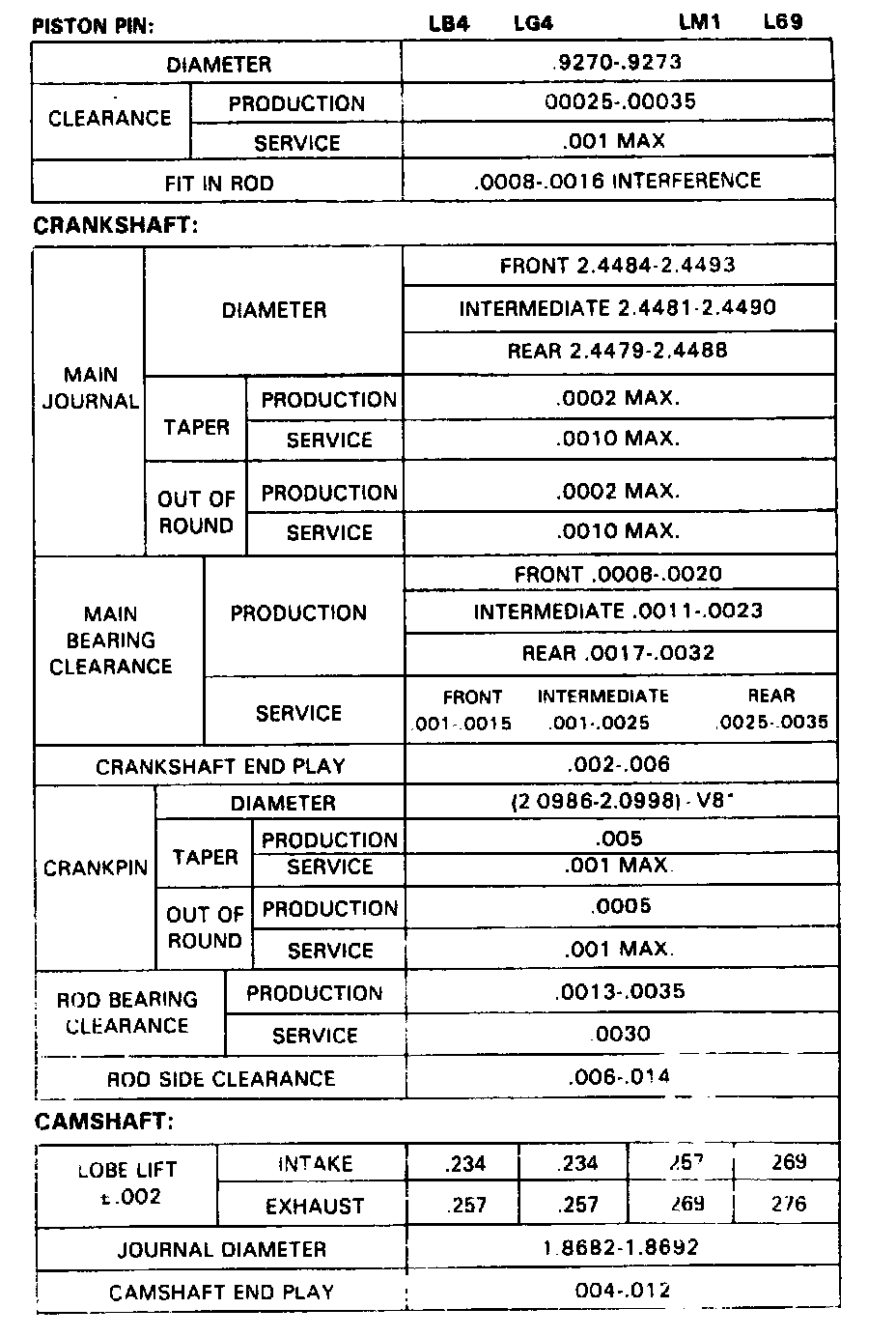

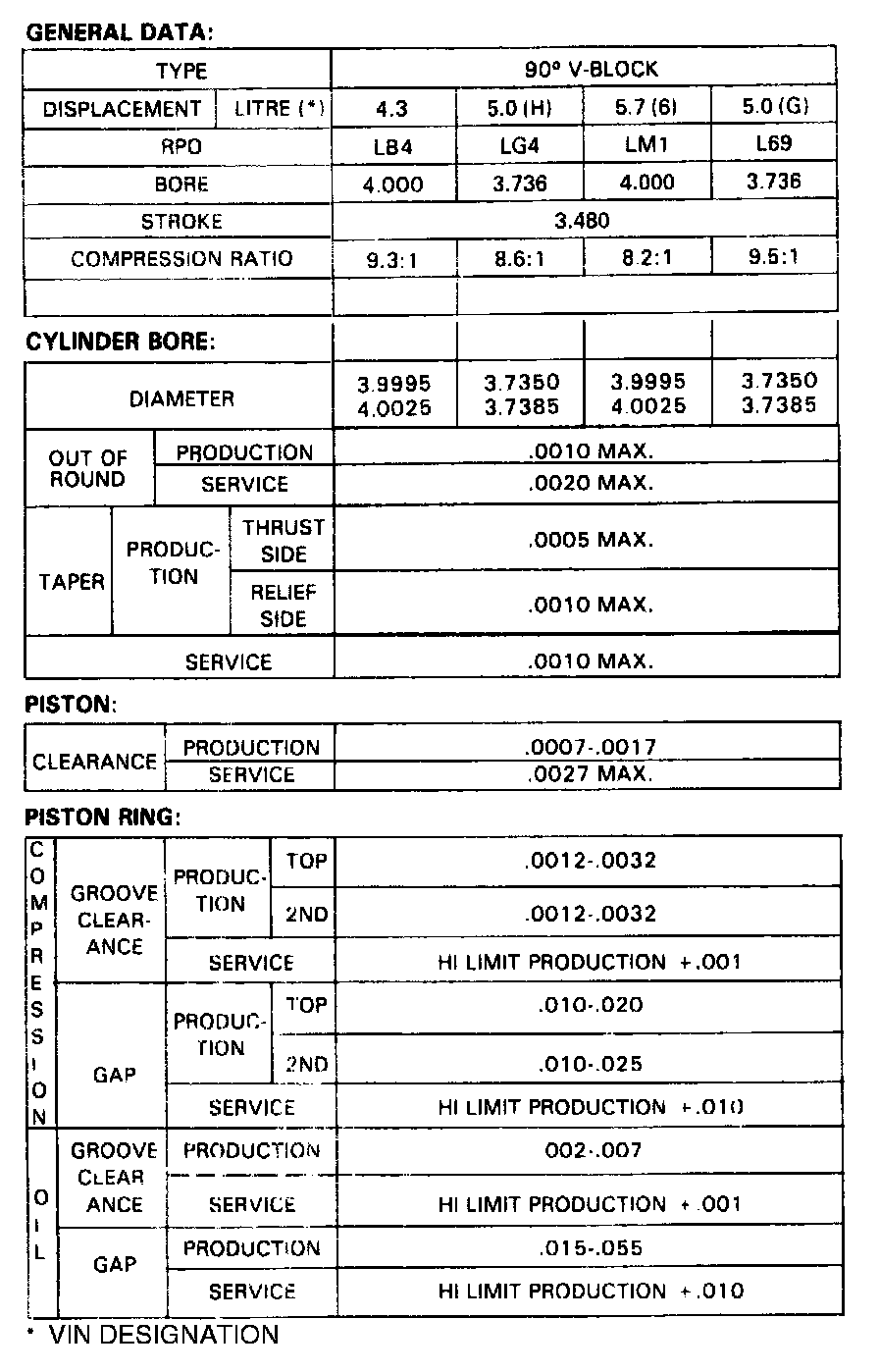

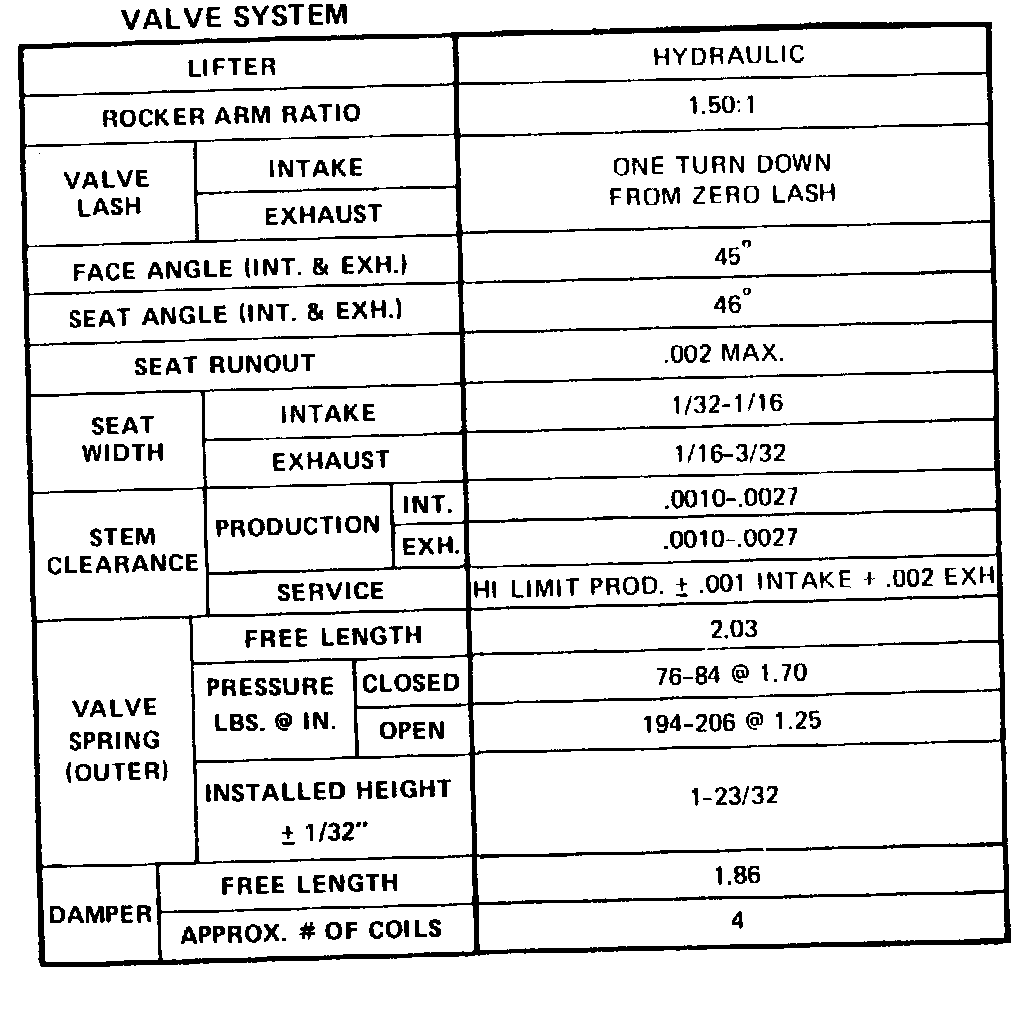

Engine Specifications:





Engine Specifications:





Engine Specifications:









Cylinder Head Torque Sequence:
