Assembly

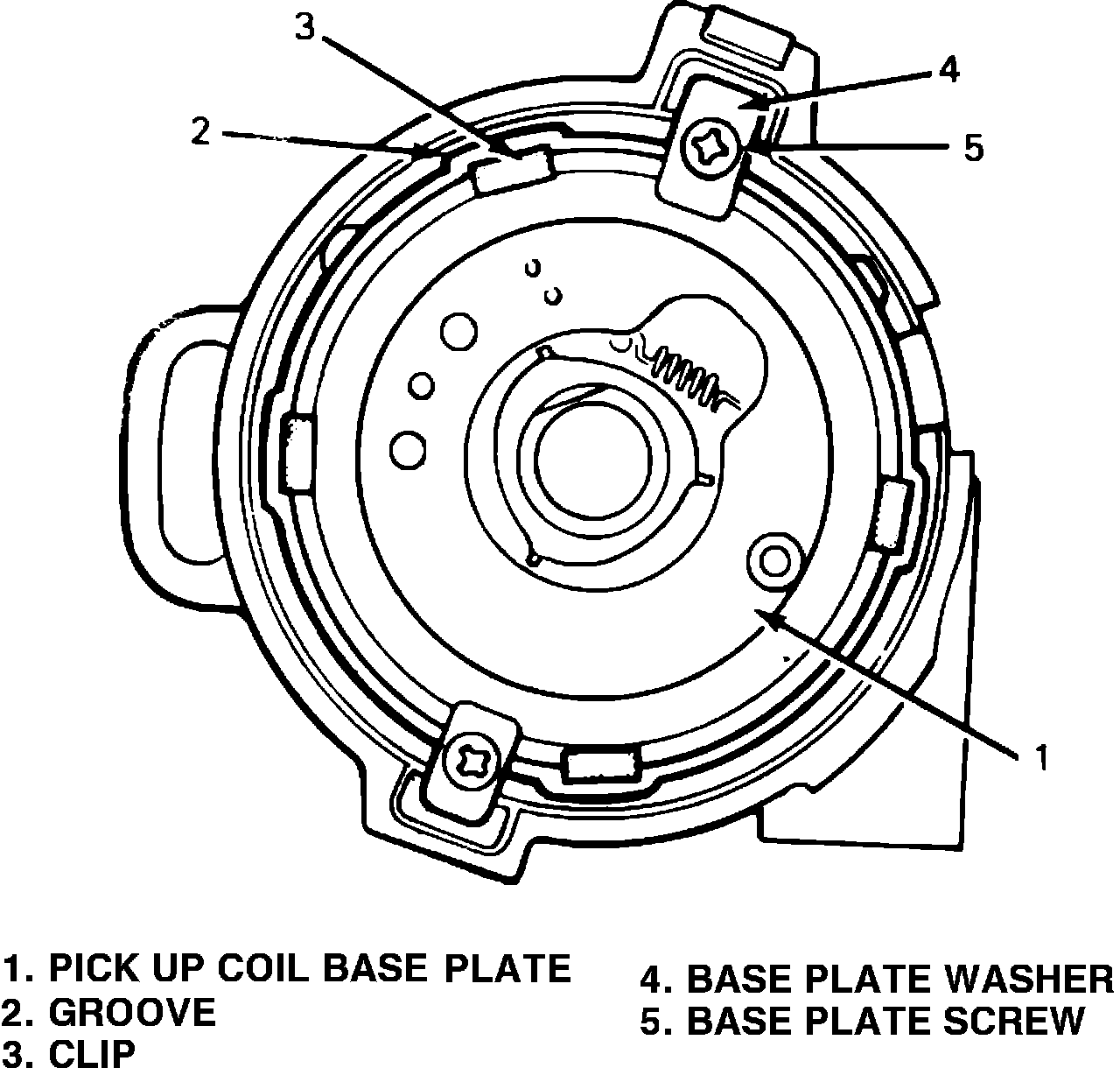

Fig. 6 Installing pickup coil base plate in distributor housing:

1. Position pickup coil base plate in distributor. Install 4 clips on base plate into 4 grooves of distributor housing, Fig. 6.
2. Install vacuum advance unit.
3. Install pickup coil on base plate. Refer to ``Air Gap, Adjust'' procedure and adjust air gap. Tighten pickup coil screws.
4. Install module in distributor housing.
5. Install distributor rotor, cap and gasket.
