A/C Compressor
A/C Compressor
Engine Compartment:

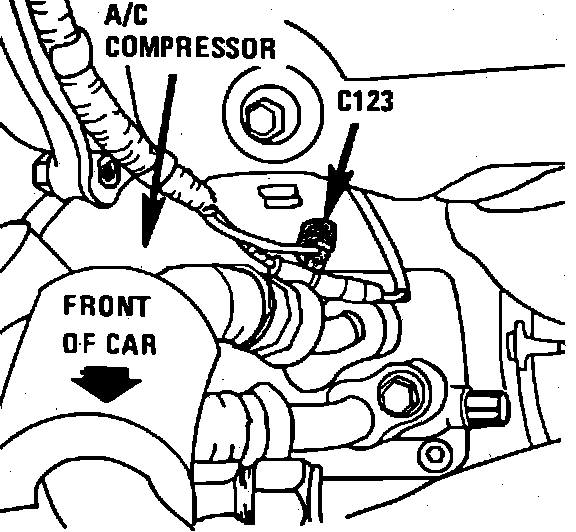

Lower Right Front Of Engine:
Lower Right Front Of Engine Compartment
