Home >> Chevrolet >> 1985 >> Caprice V8-350 5.7L DSL >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

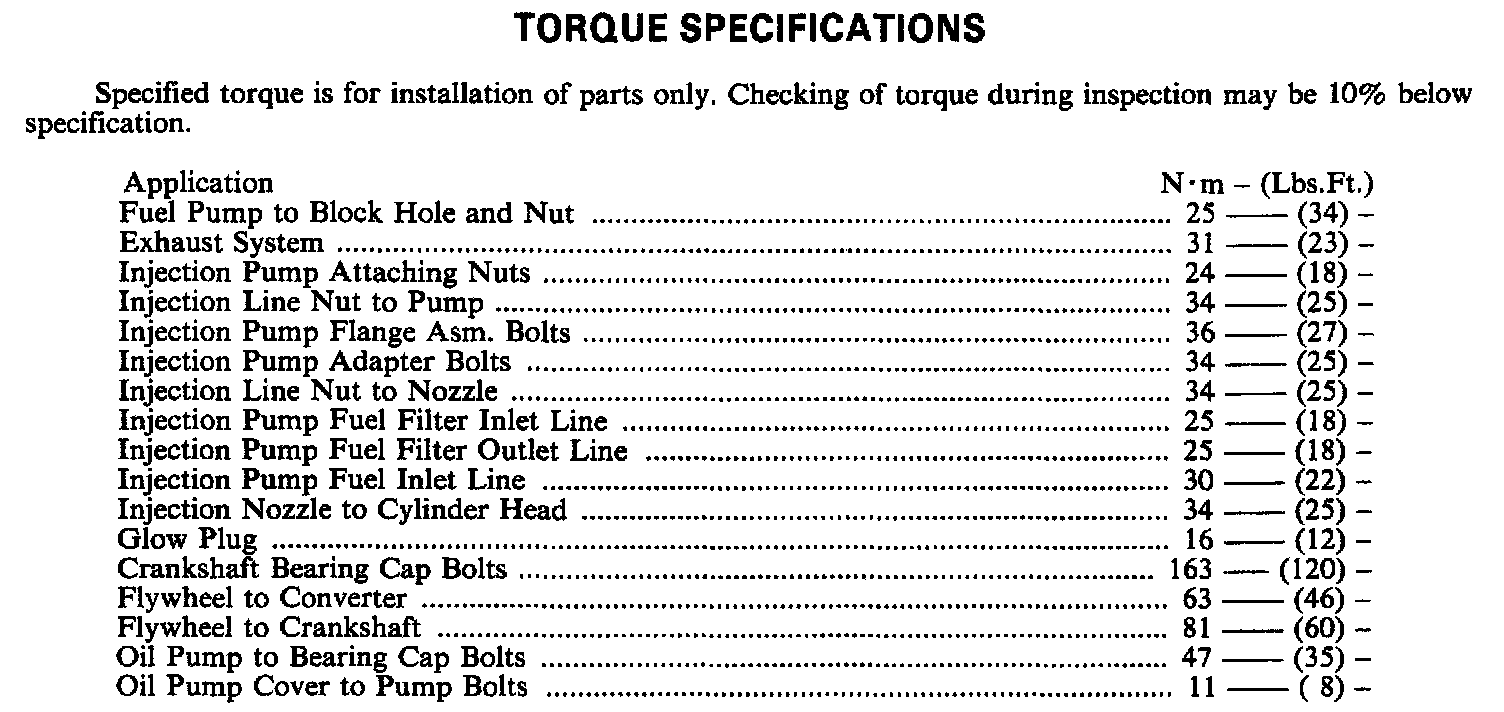

Torque Specifications:

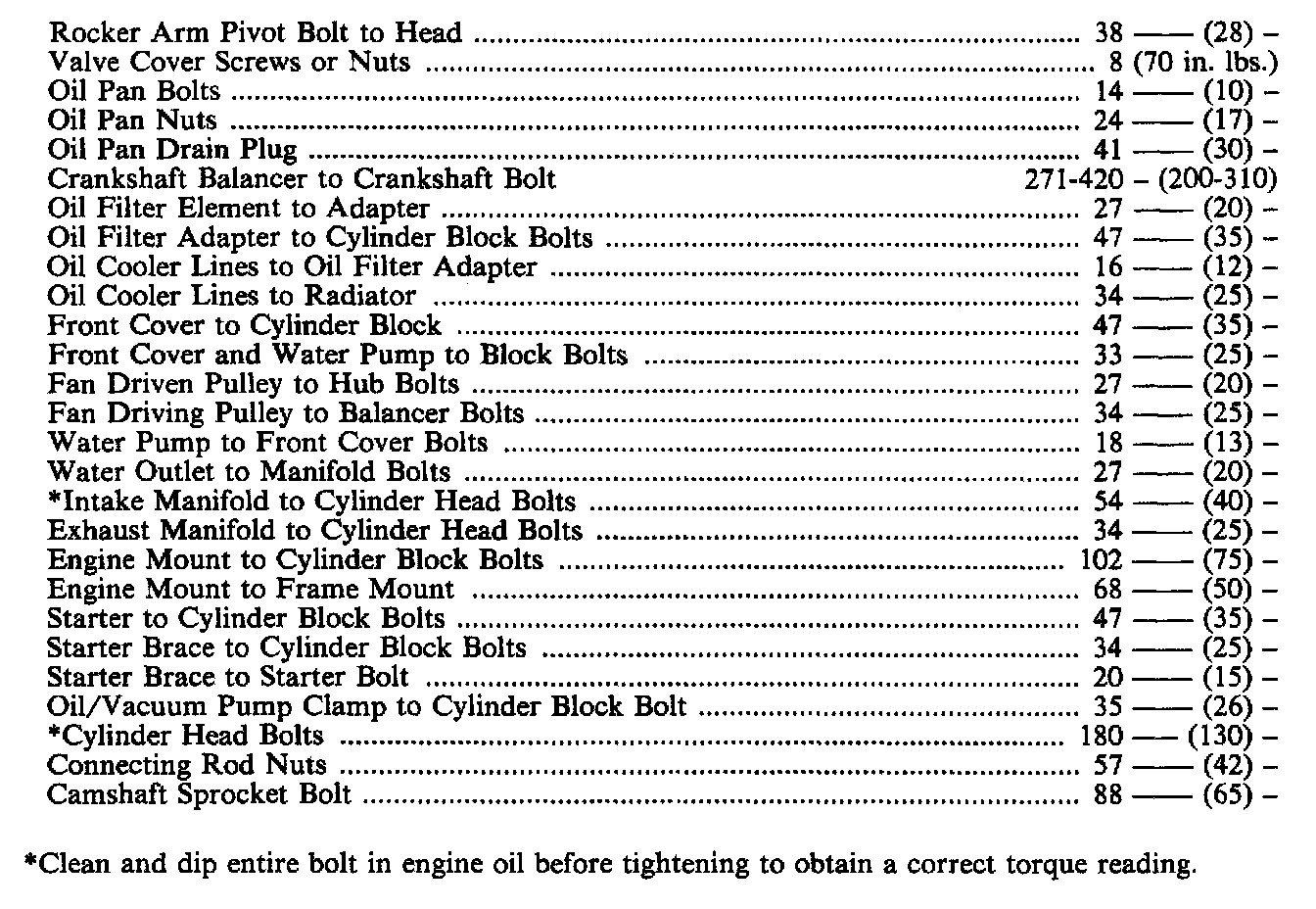

Continued Torque Specifications:

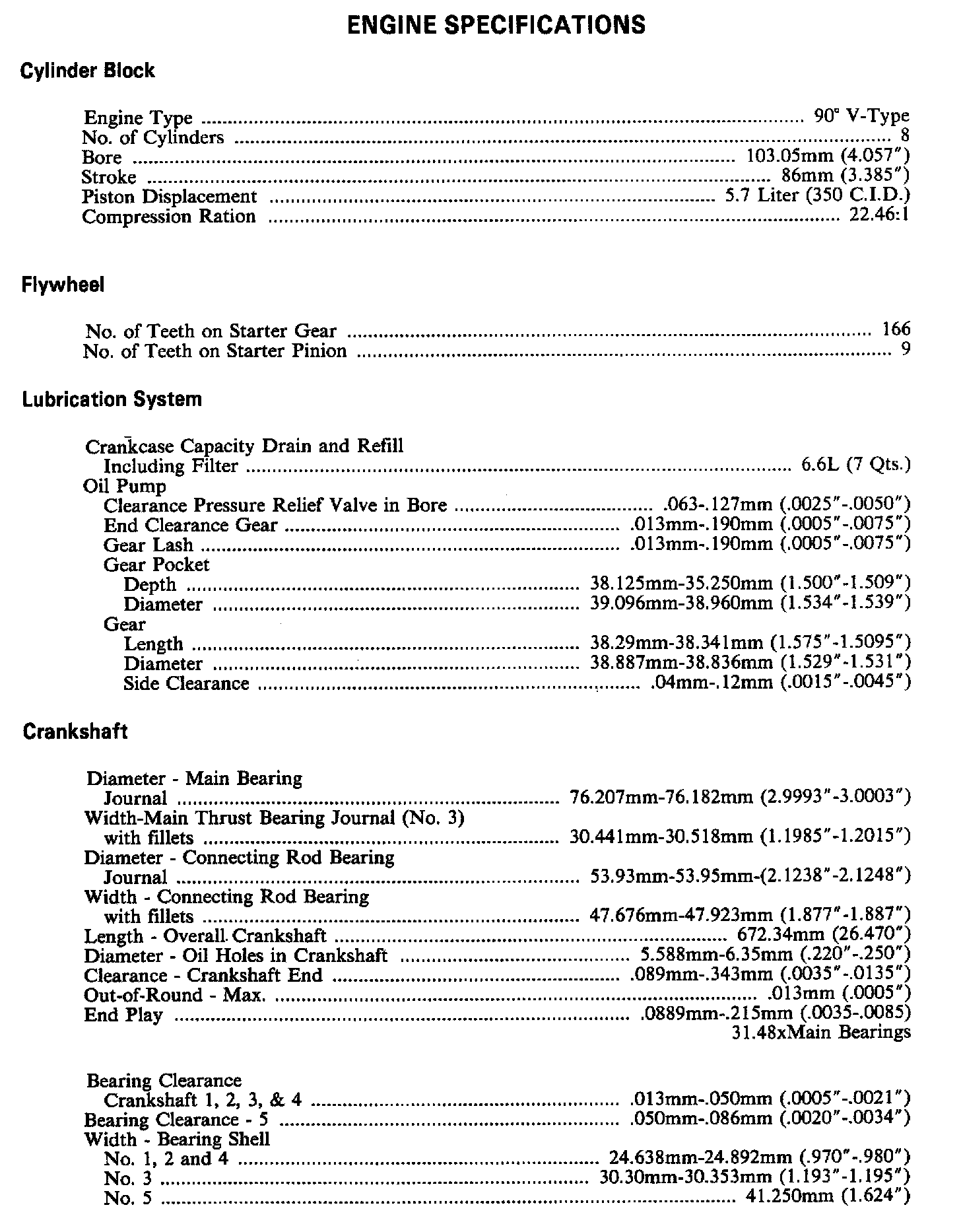

Engine Specifications:

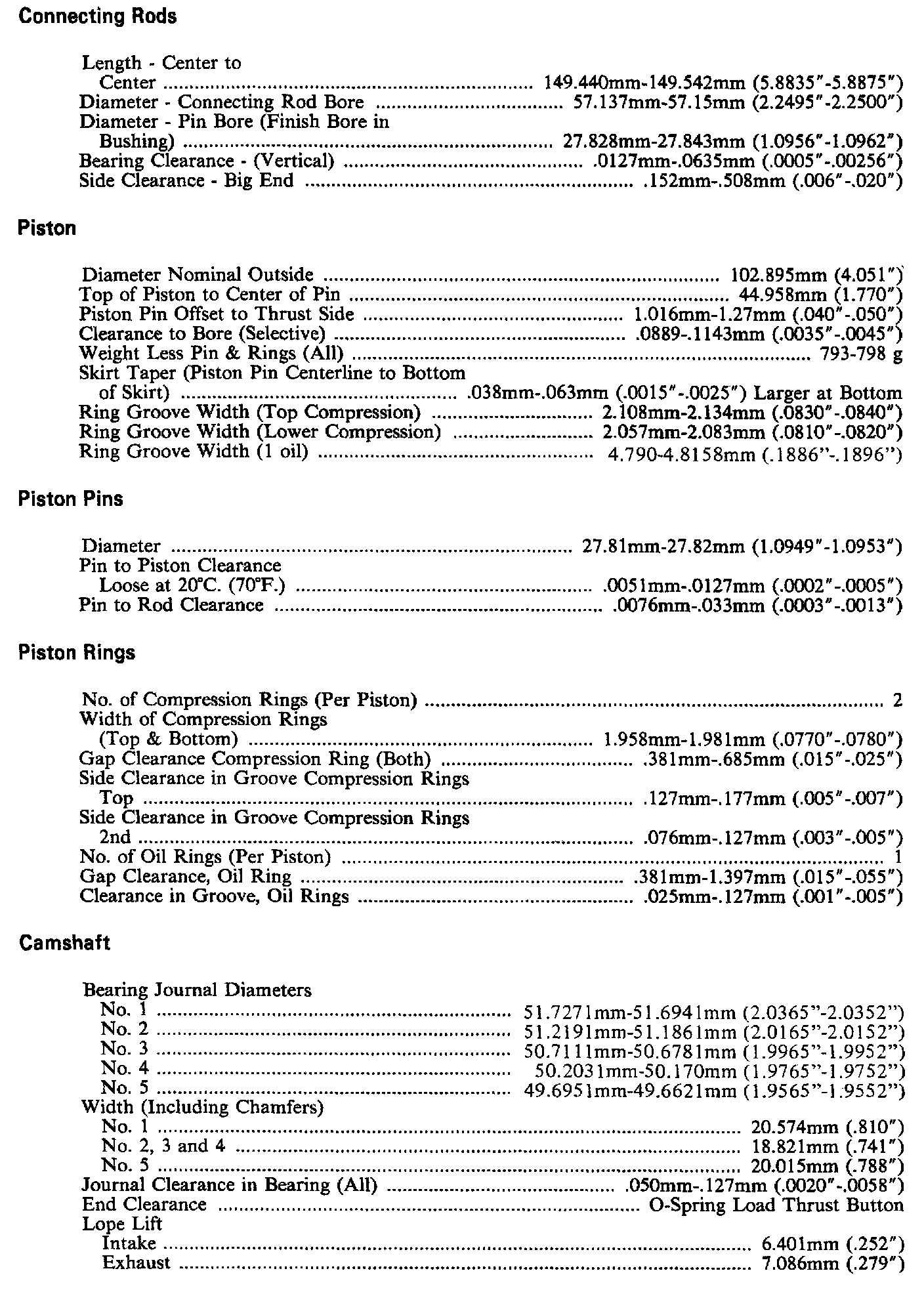

Continued Engine Specifications:

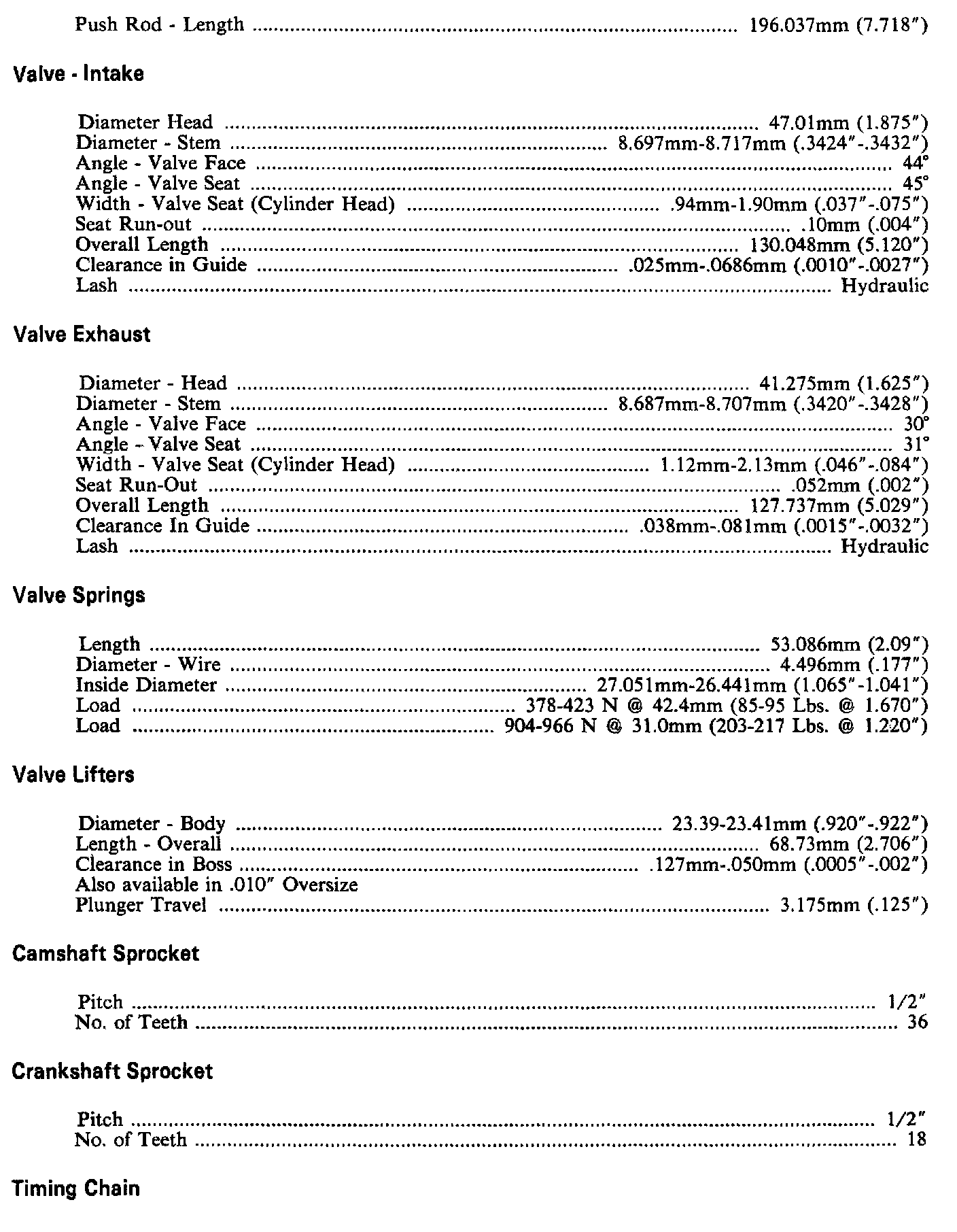

Continued Engine Specifications:

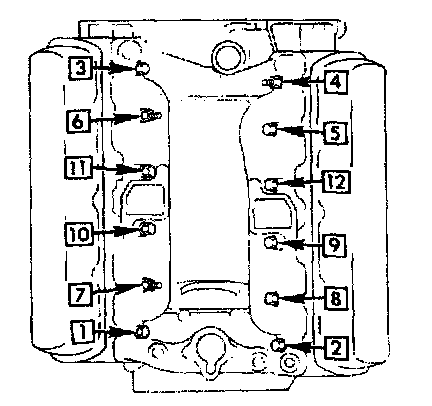

Intake Manifold Sequence:

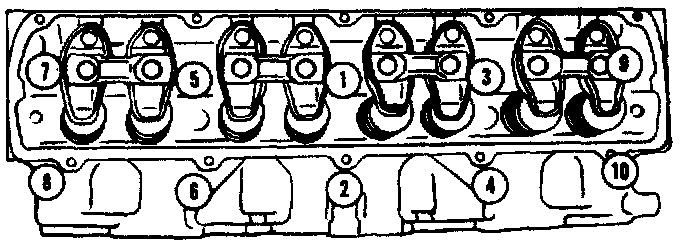

Cylinder Head Sequence:
