System Specifications

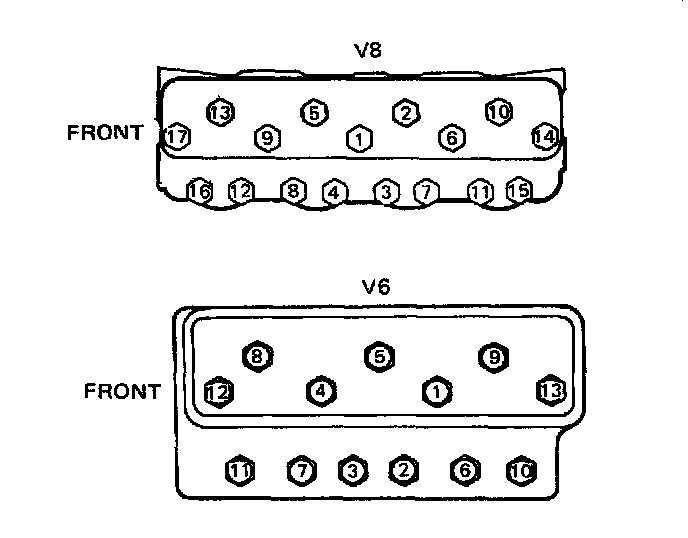

Cylinder Head Sequence:

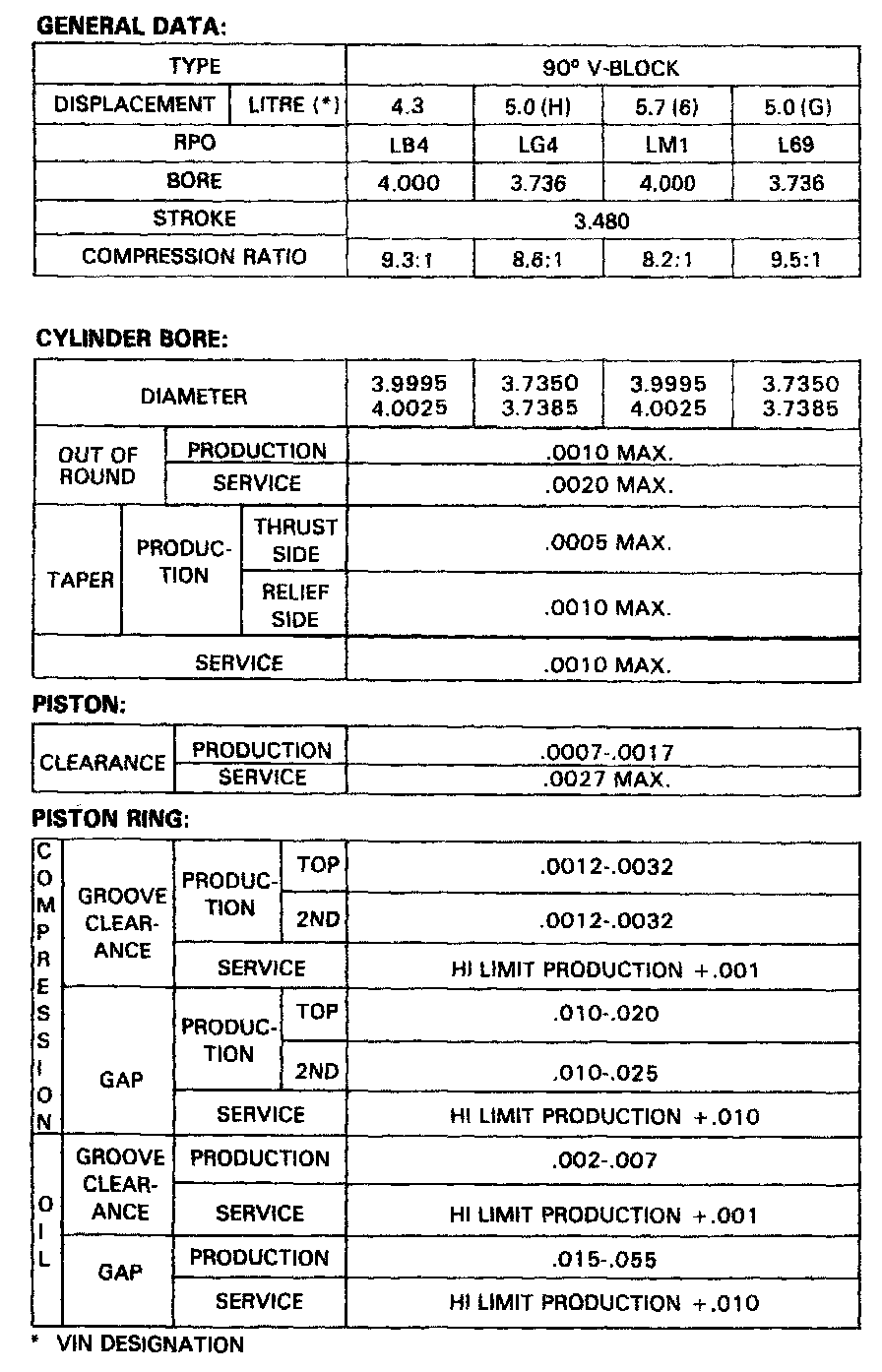

Engine Sequence:





Engine Sequence:

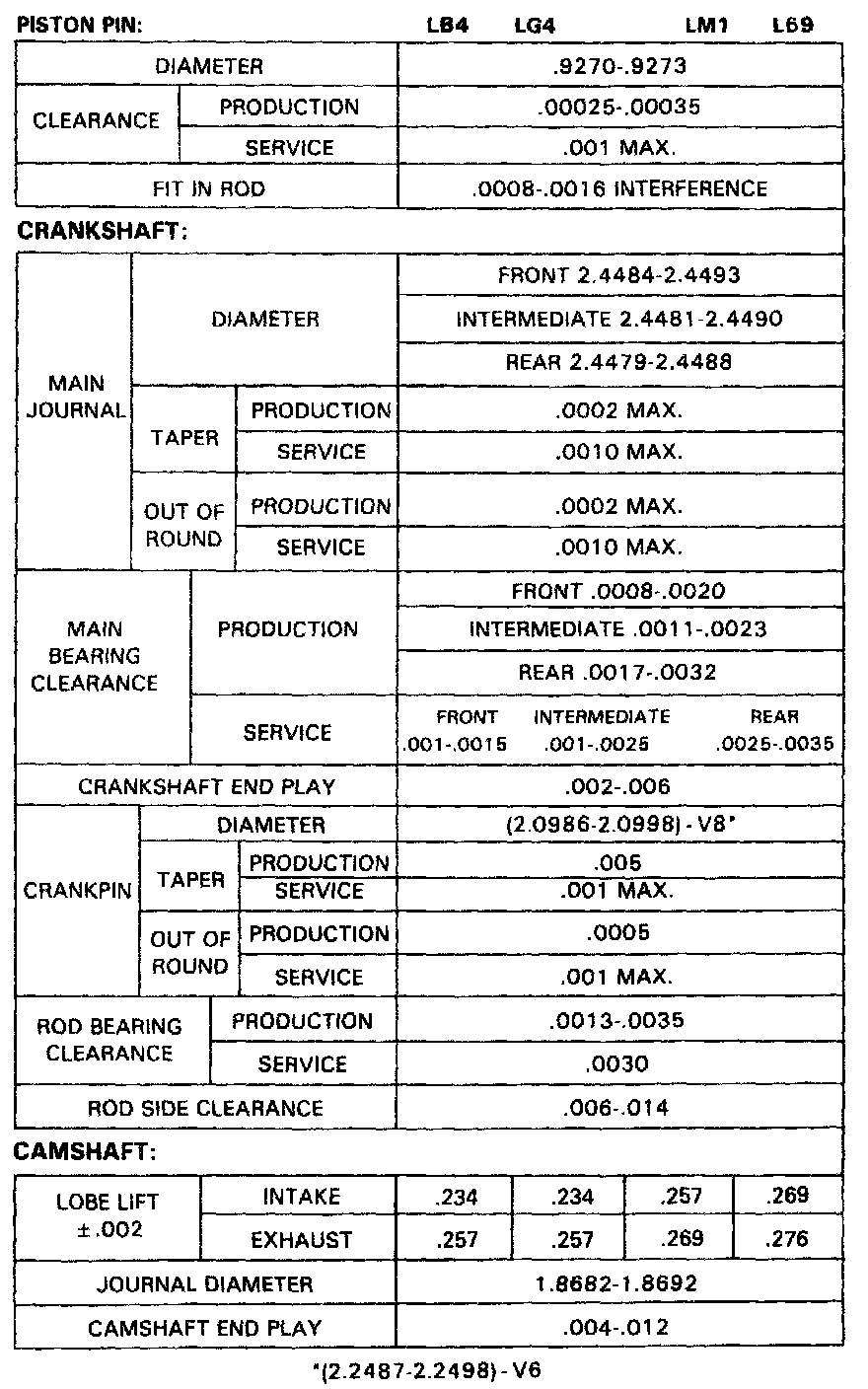

Continued Engine Specifications:

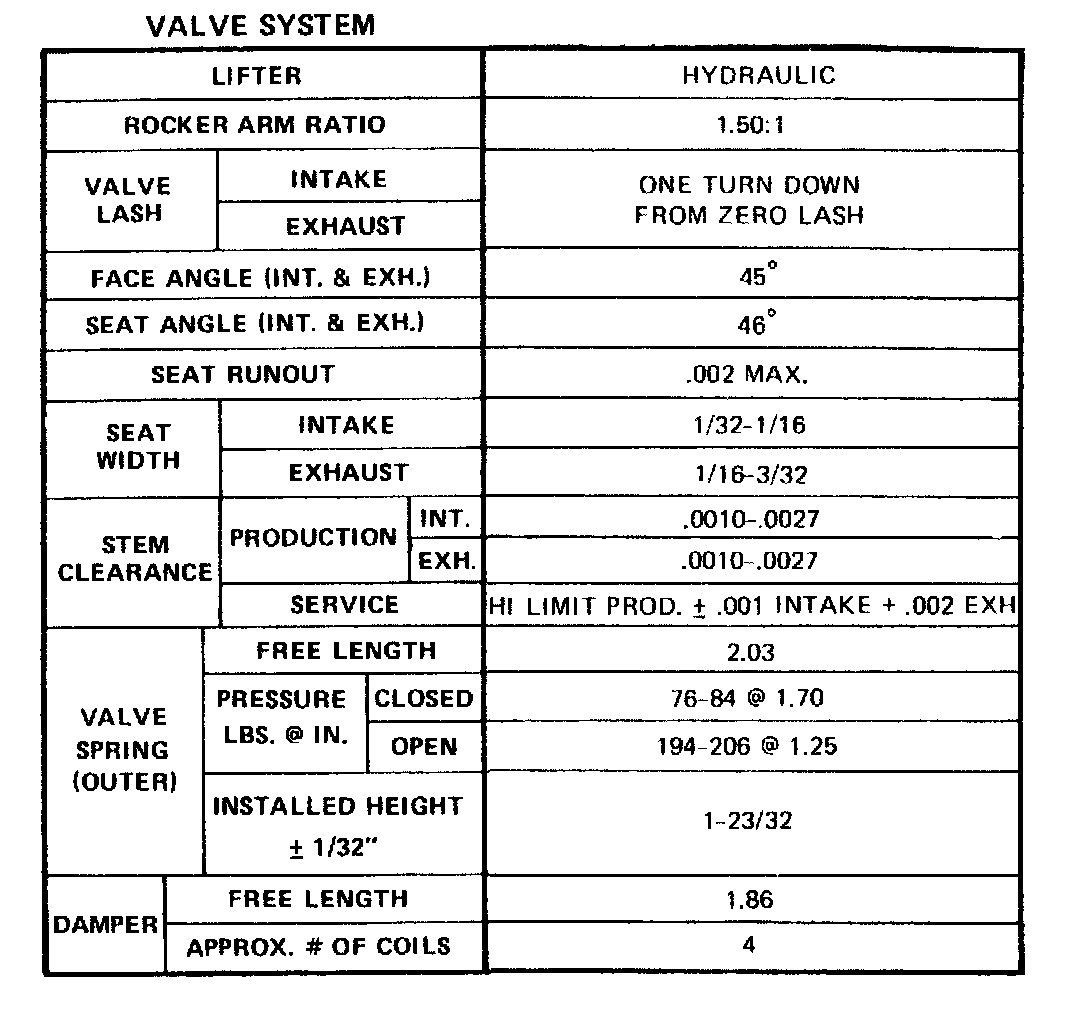

Continued Engine Specifications:

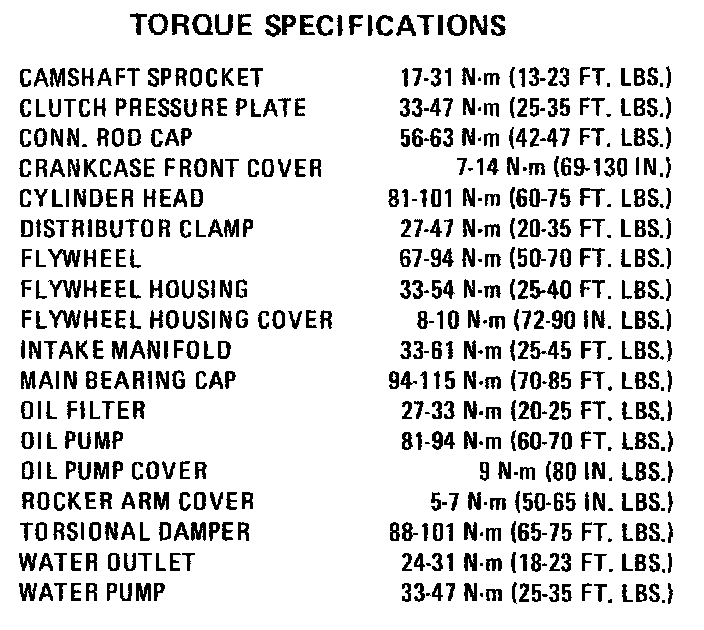

Torque Specifications:

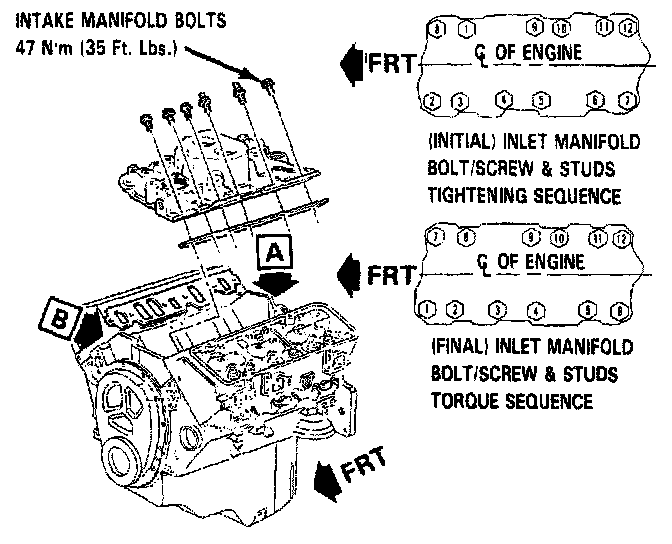

Intake Manifold Sequence V8:





Intake Manifold Sequence V6:
