Electronic Control Module (ECM)

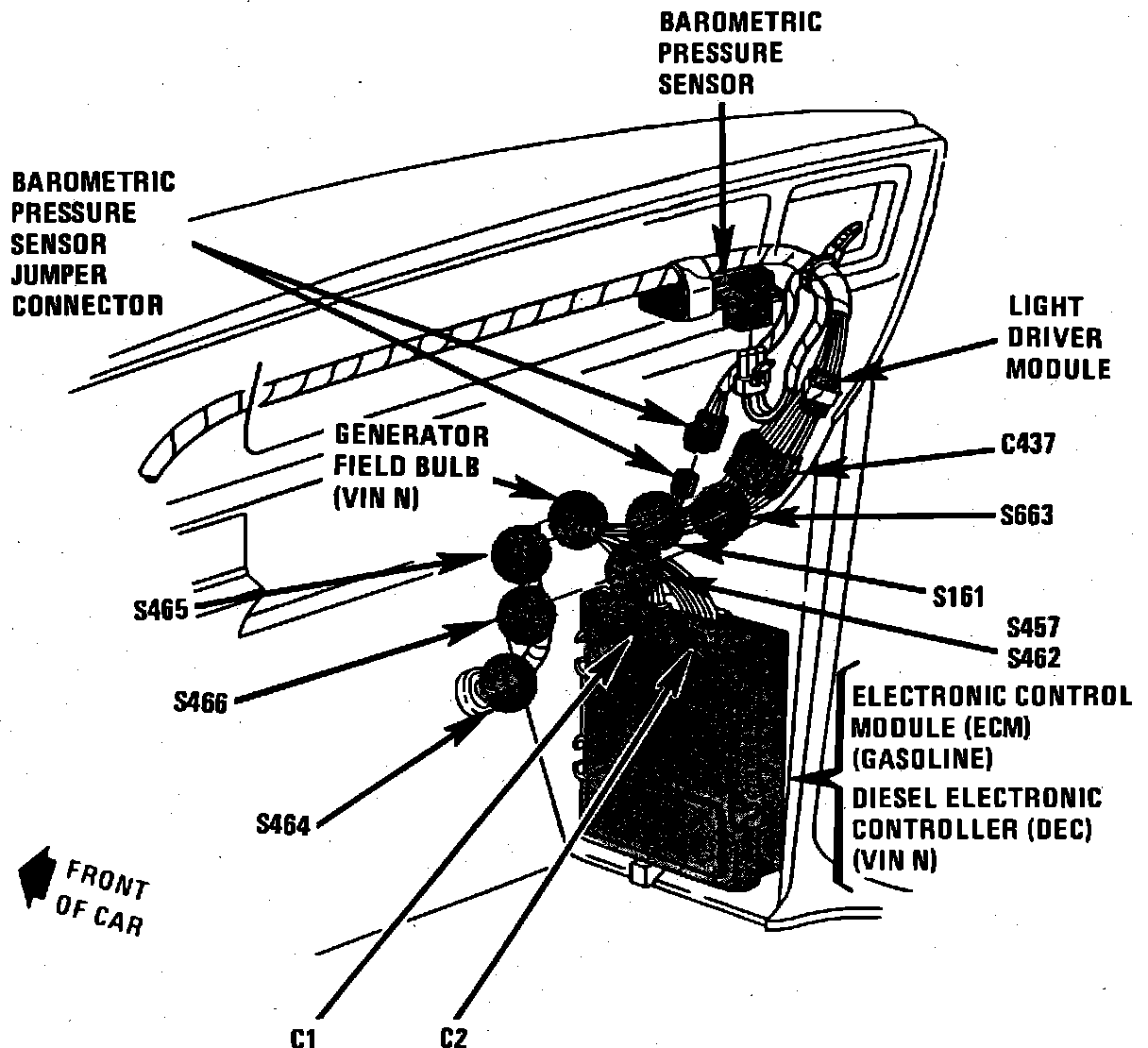

Electronic Control Module (ECM)
Behind RH Side Of I/P.:
Below RH Side Of I/P, At Kick Panel
Applicable to: Chevrolet
