Engine Specifications

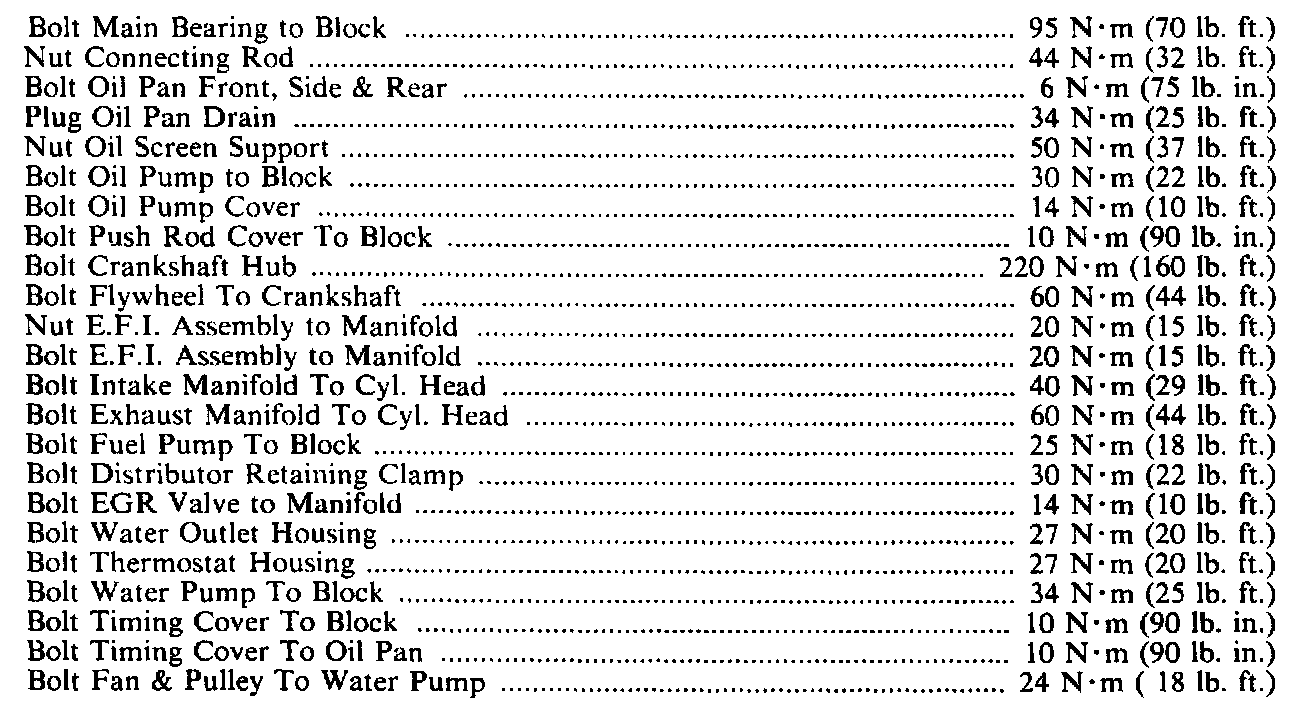

Torque Specifications:

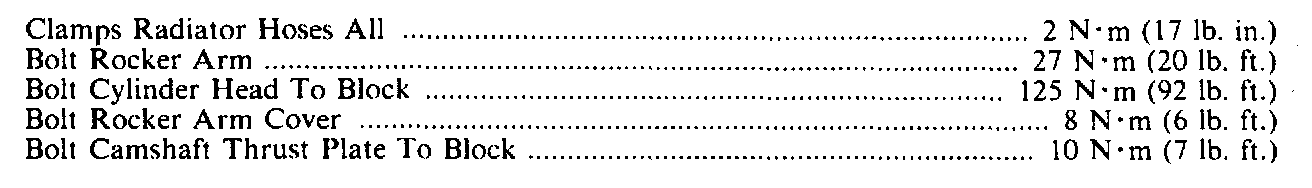

Continued Torque Specifications:

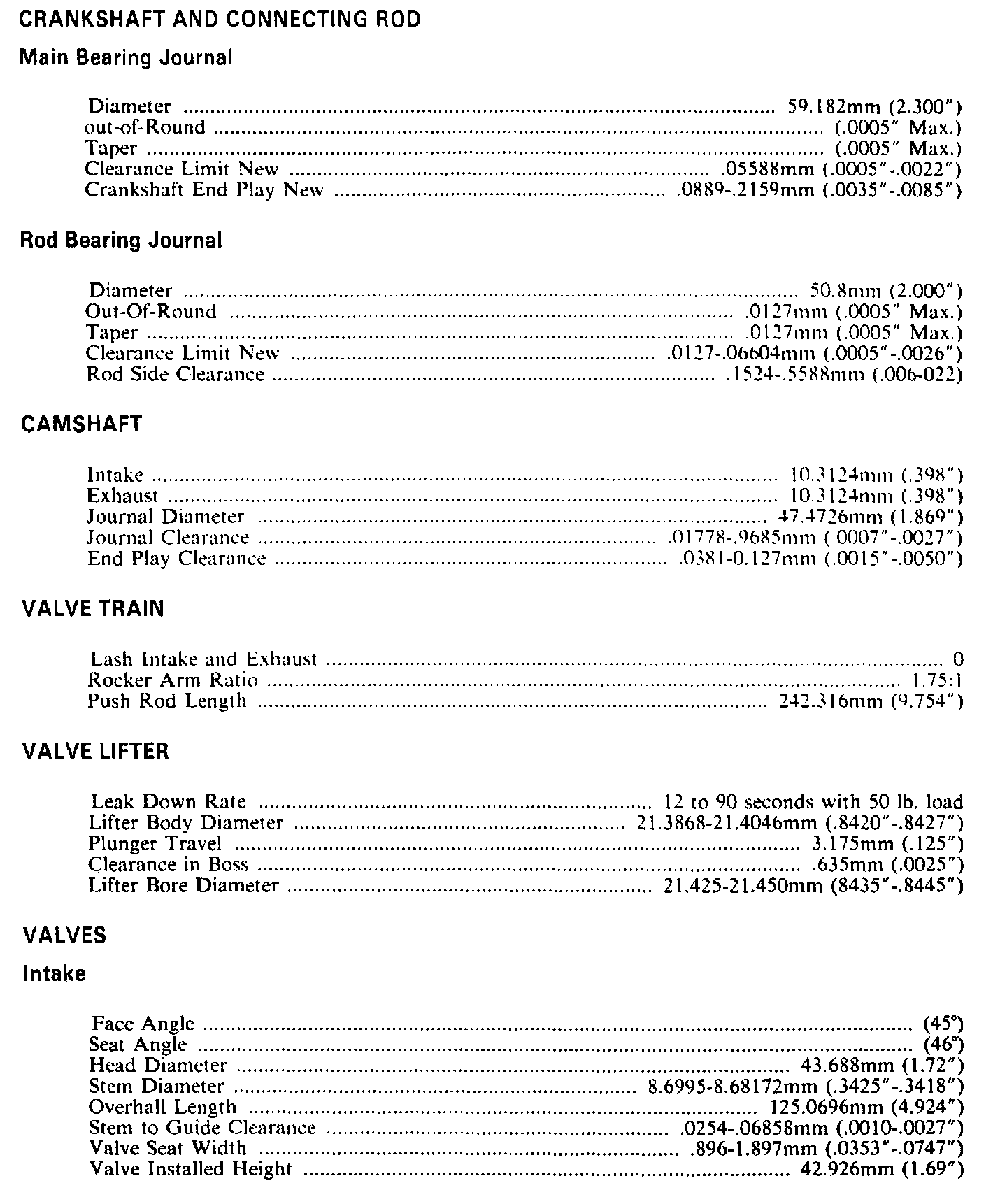

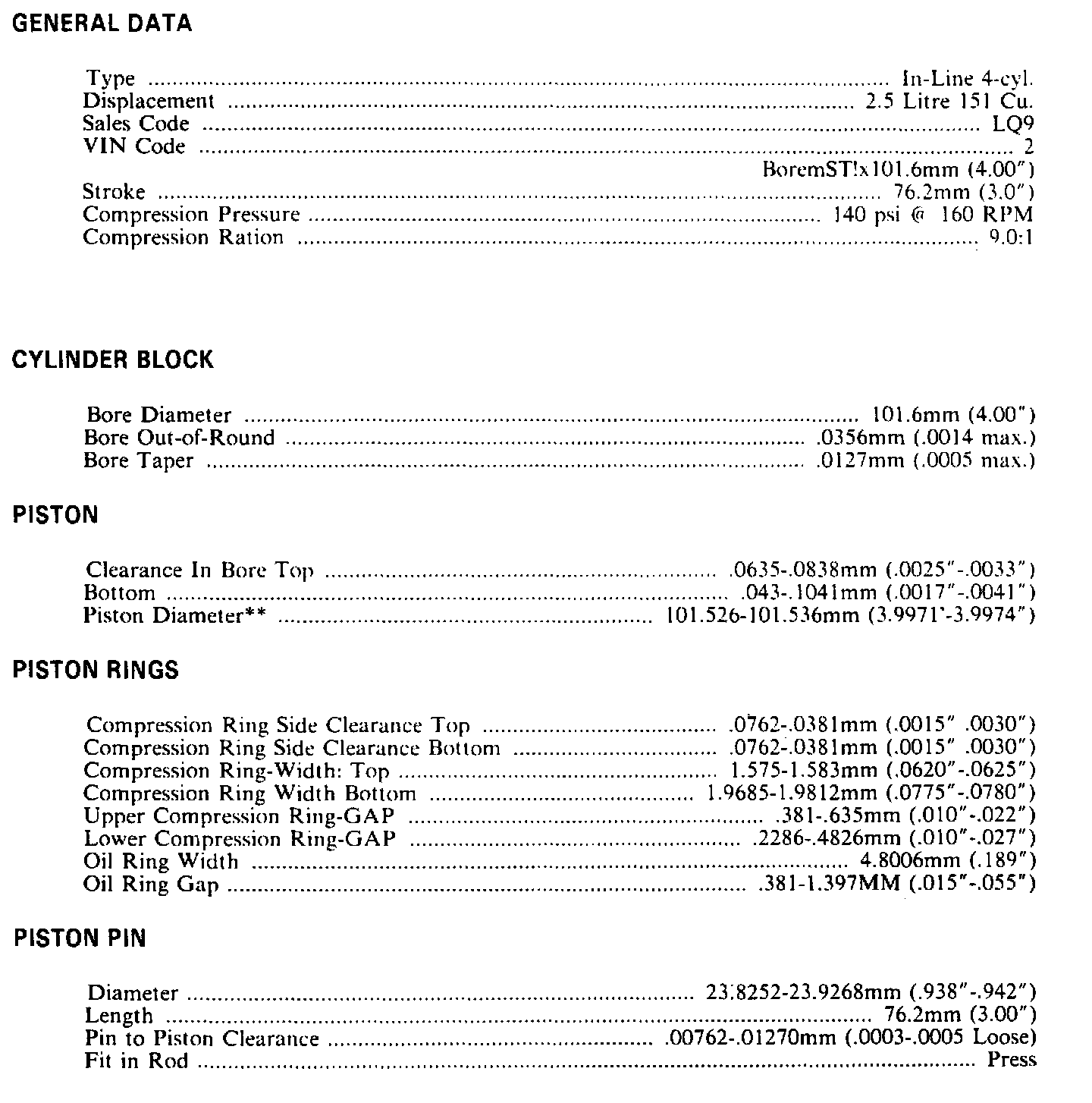

Engine Specifications:

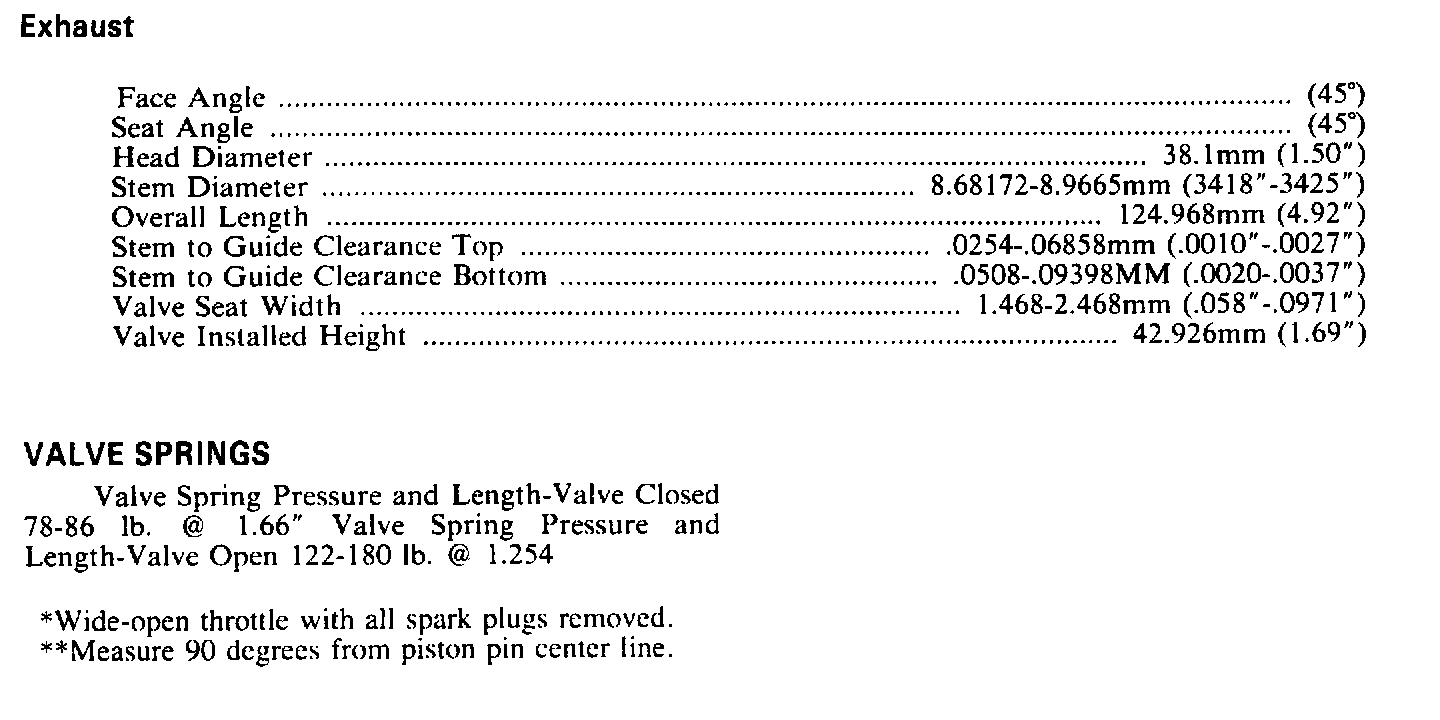

Continued Engine Specifications:





Continued Engine Specifications:

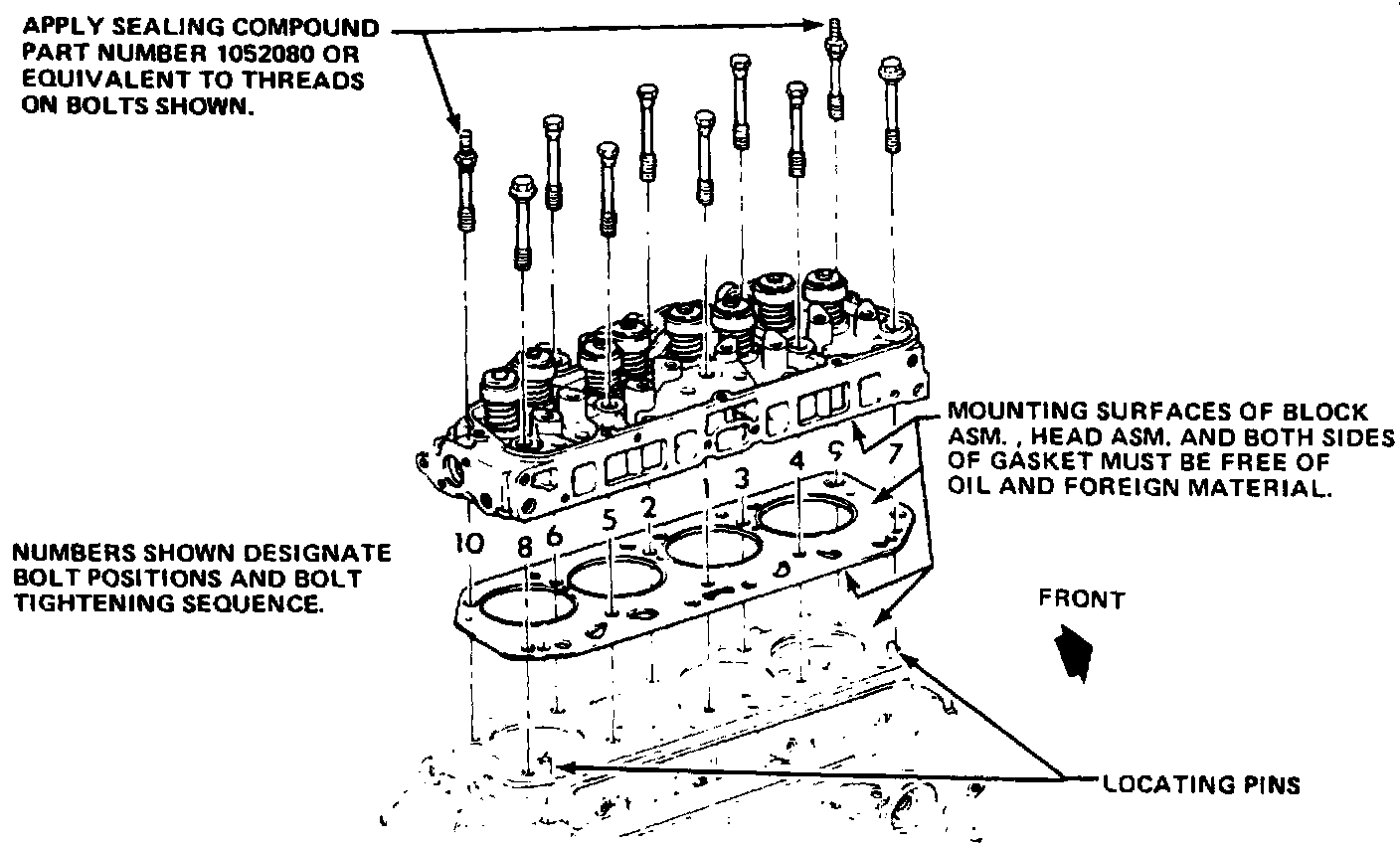

Cylinder Head Sequence:
