Home >> Chevrolet >> 1985 >> Astro Van M L4-151 2.5L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> Engine Control Module

Engine Control Module

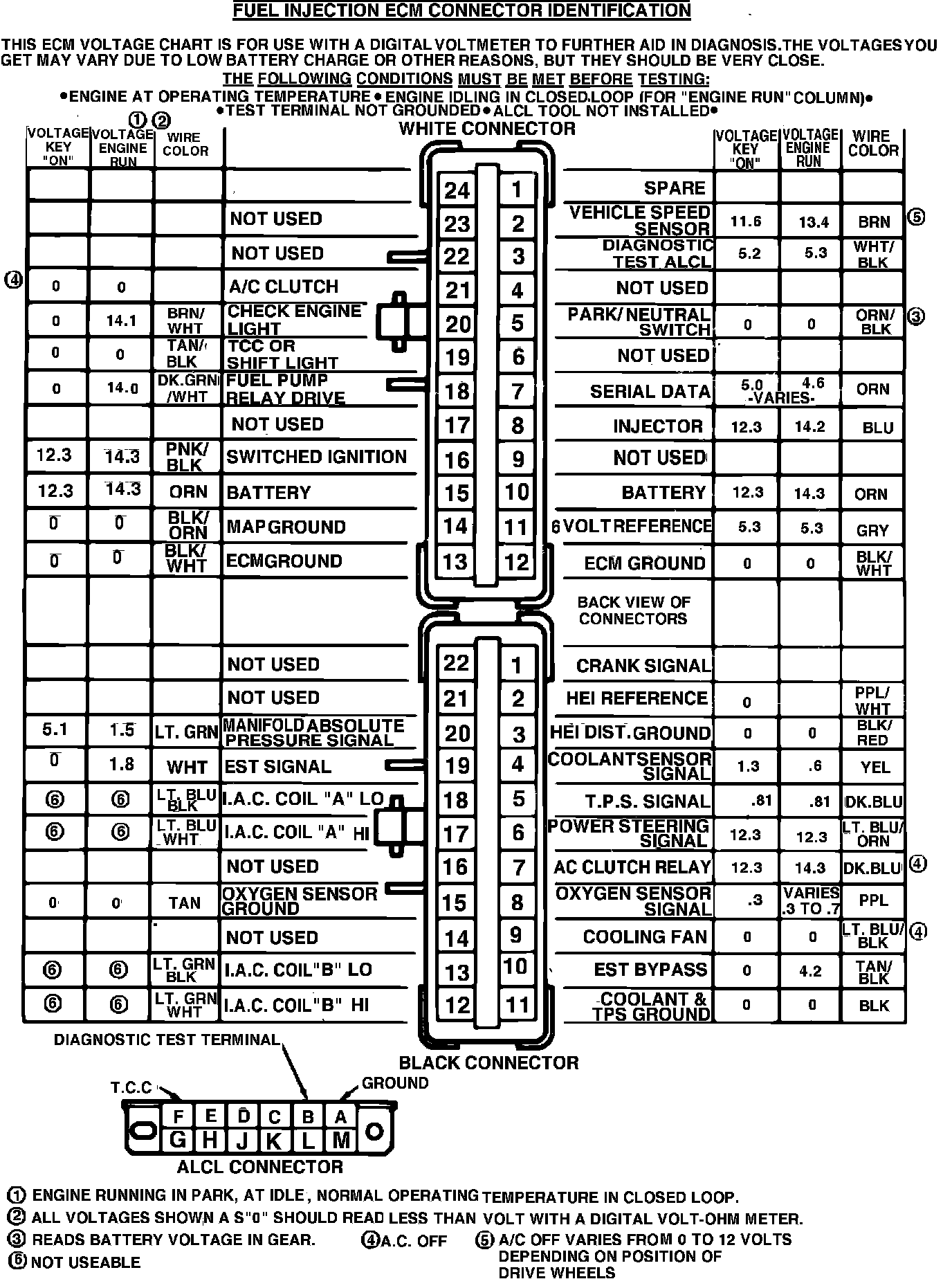

ECM Connector Terminal Identification & Voltage Specifications.:
