Home >> Chevrolet >> 1982 >> Monte Carlo V6-231 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Locations >> Electronic Spark Control Module

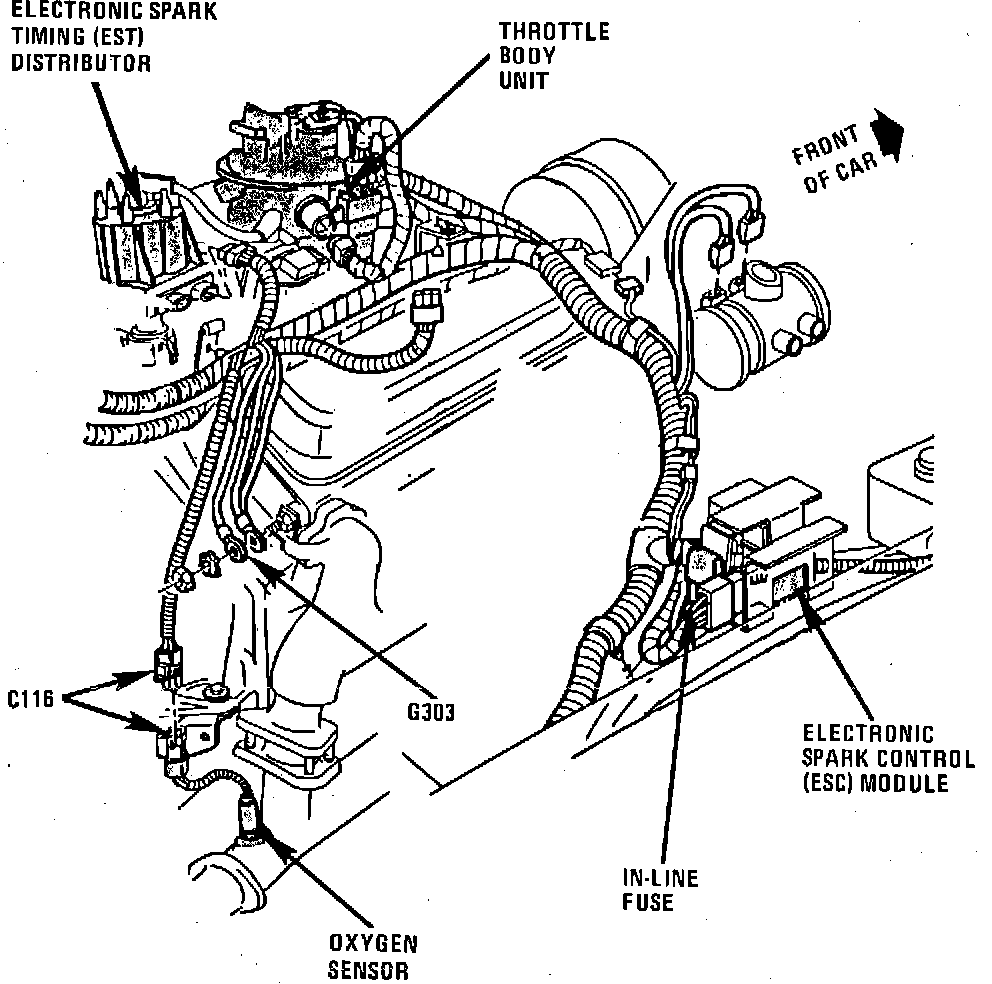

Electronic Spark Control Module

RH Wheelwell:




RH Wheelwell

Applicable to: Caballero, El Camino, Malibu & Monte Carlo

RH Inner Fender Panel:




RH Wheelwell

Applicable to: 1985 El Camino & Monte Carlo w/V8 Engine

RH Side Of Engine.:




RH Wheelwell

Applicable to: 1985 El Camino & Monte Carlo
