Home >> Chevrolet >> 1982 >> Luv 4WD L4-110 1800cc >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> New Process Model 205

New Process Model 205

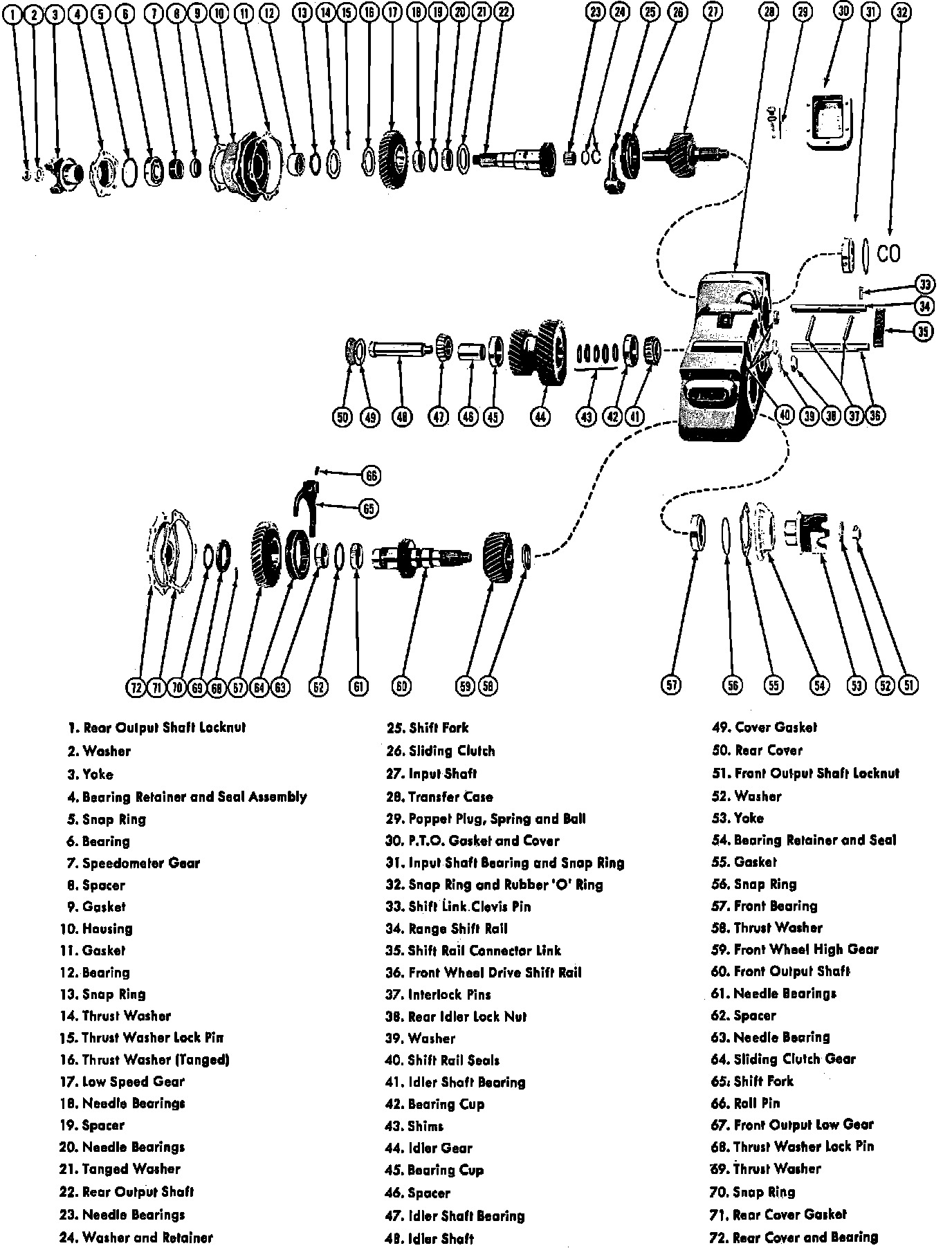

Fig. 2 Exploded View Of New Process Model 205 Transfer Case:
