Chevrolet
>>
1982
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Front Injector
Front Injector

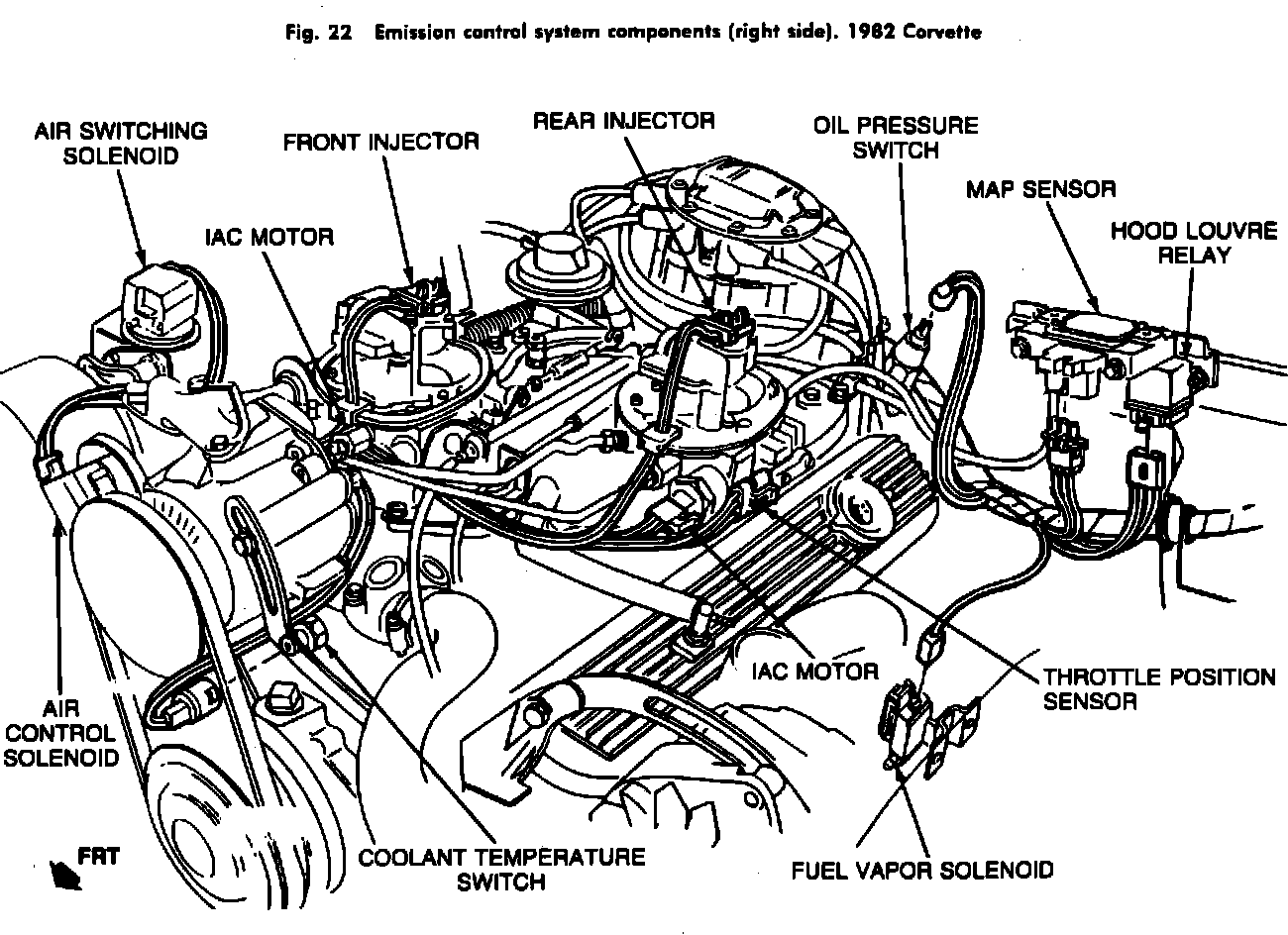

Front LH Side Of Engine.:

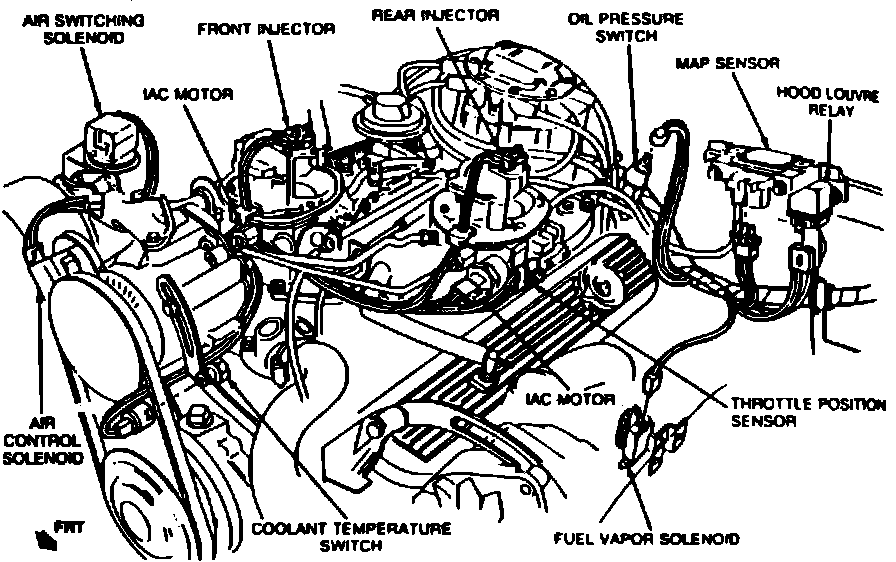

Front RH Side Of Engine.:

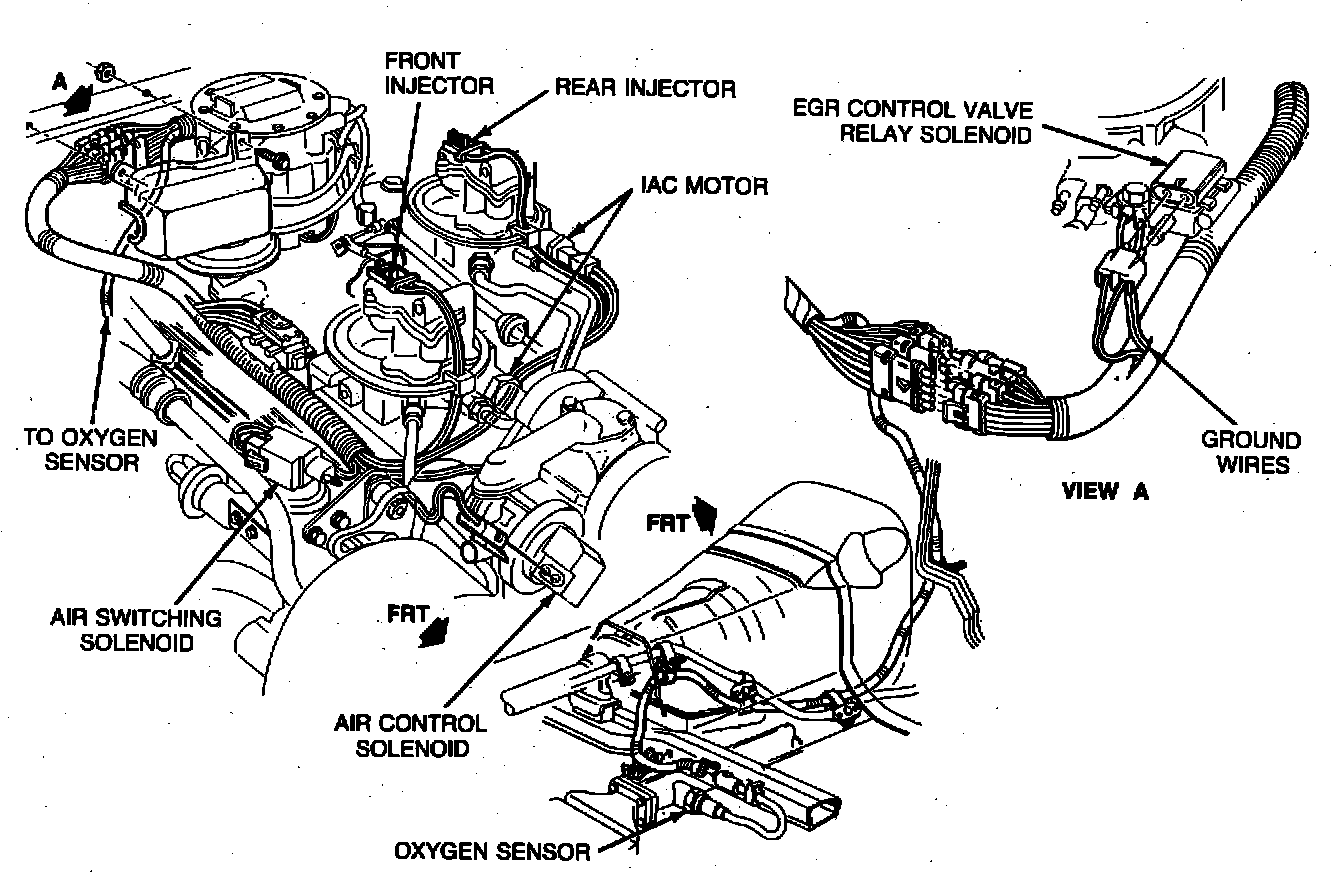

Top Of Engine.:
Top RH Side Of Engine
Applicable to: 1981-82
