Home
>>
Chevrolet
>>
1982
>>
Chevette L4-98 1.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
System Performance Check
>>
Full Function System
Full Function System

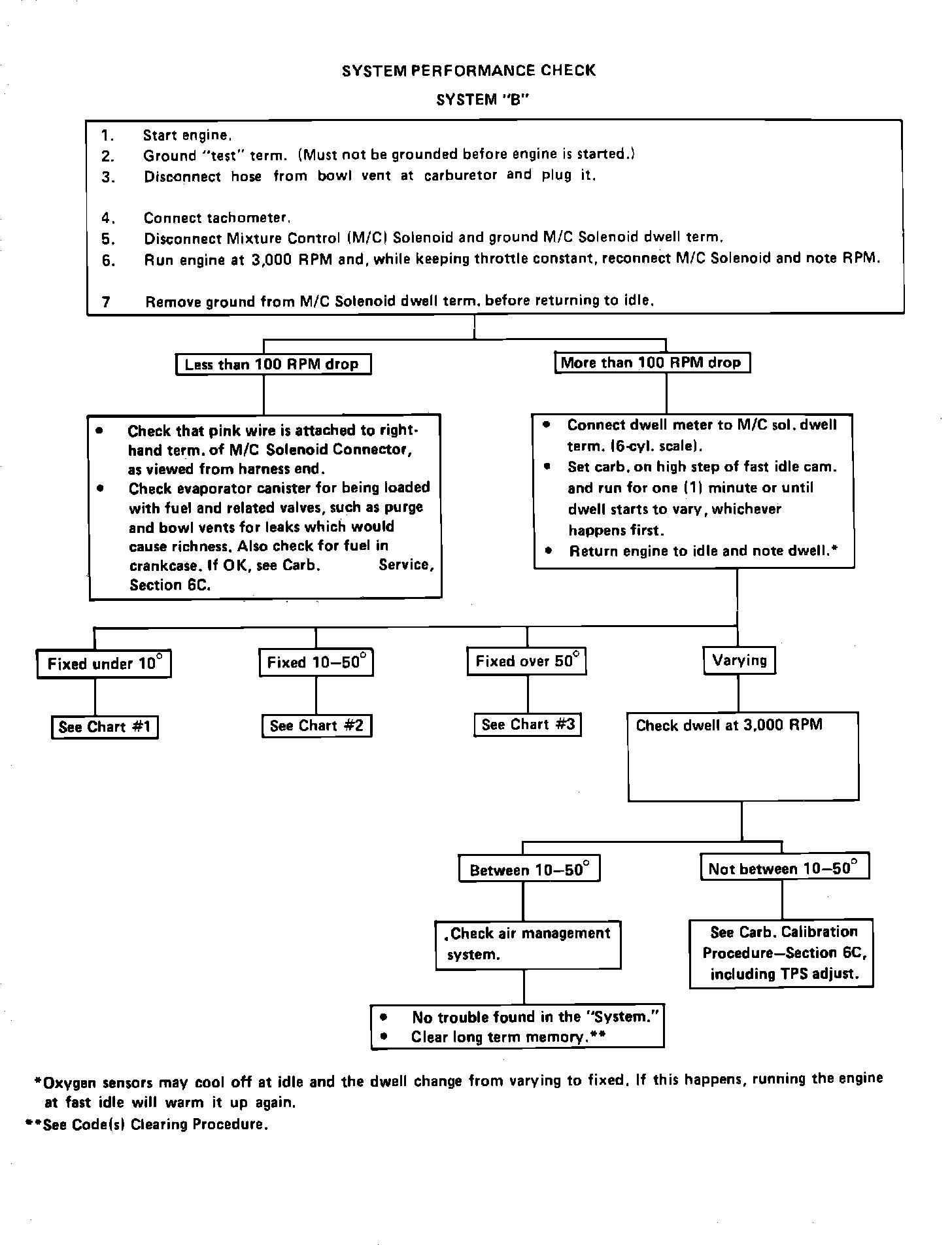

Fig. 004 System Performance Check:
