Steering Gear
Steering Gear

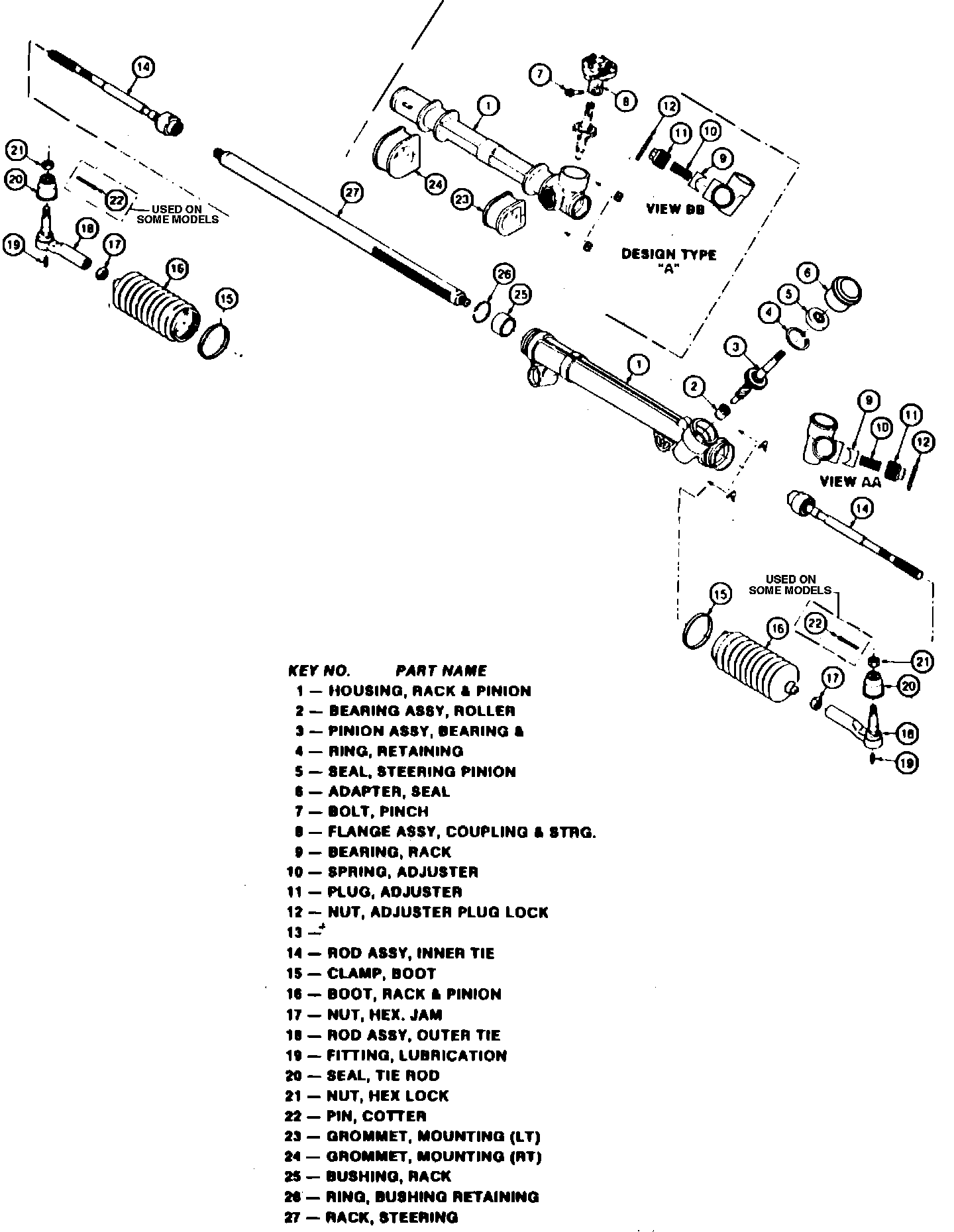

Fig. 1 Exploded view of Saginaw rack & pinion steering gear. Chevette, Citation, Omega, Phoenix, Skylark & 1000:
